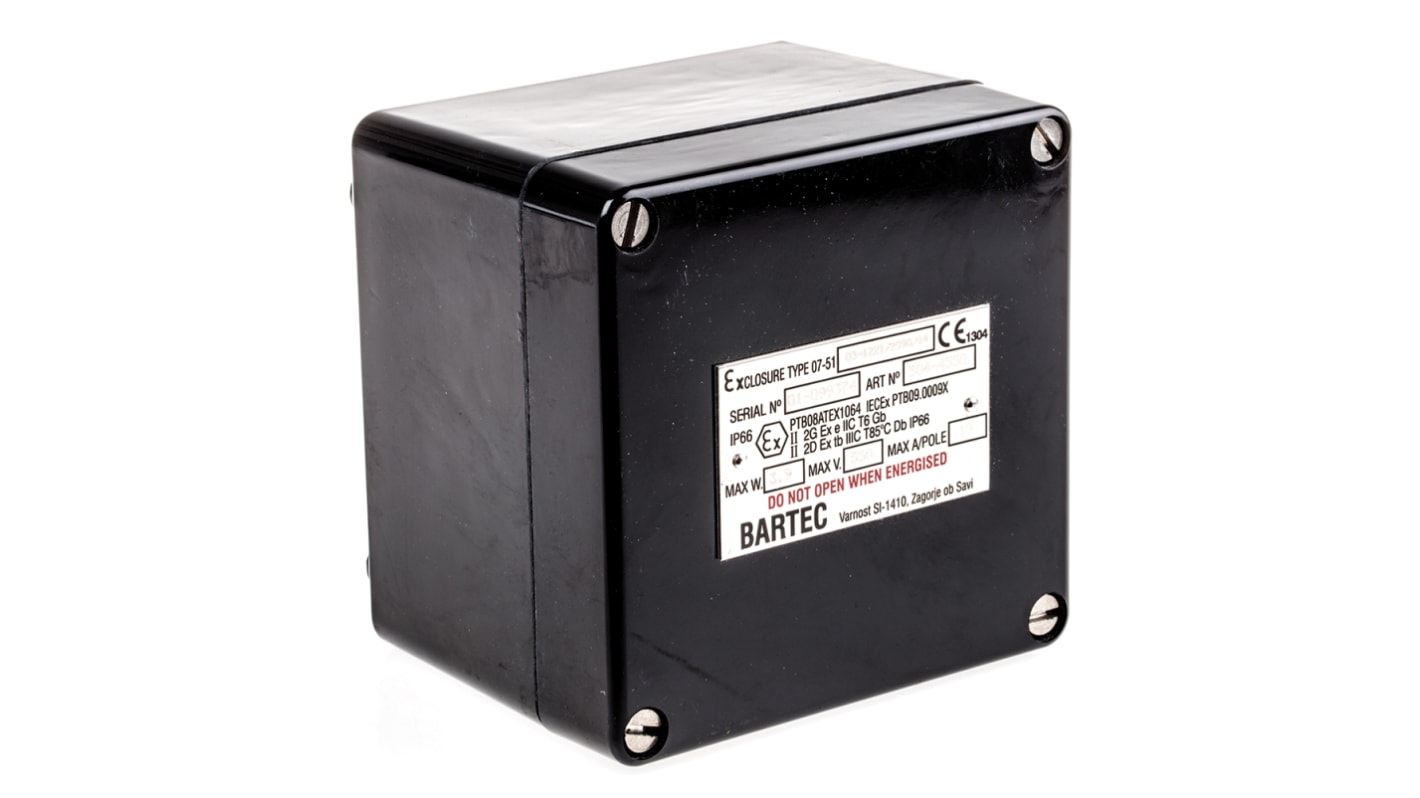

Bartec ATEX Junction Box, IP66, 122mm x 120mm x 90mm

  • RS Stock No. 504-4550
  • Mfr. Part No. 235471
  • Manufacturer Bartec
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

Bartec Junction Box

The Bartec junction box is a terminal box manufactured with high impact resistance, glass-fibre reinforced polyester SMC, and DMC for extraordinary stability and corrosion resistance. The standard enclosure consists of black, antistatic material. It has a voltage rating of 550V and a current rating of 21A.

Features and Benefits

Number of terminals are 9
Earth continuity plate
M20 conduit entries
Conductor size 0.5 to 4mm
Extended ambient temperature range
External earth connection
Length of 122mm, width of 120mm and height of 90mm

Certifications

ATEX certified
BASEEFA approved
IP66 rated
BS EN 61340-5-1:2007
ANSI/ESD S20.20:2014

Specifications
Attribute Value
Length 122mm
Material Glass Fibre Reinforced PET
Width 120mm
Dimensions L x W x H 122 x 120 x 90mm
IP Rating IP66
Height 90mm
Number of Terminals 9
Hazardous Area Certification ATEX
Current Rating 21A
Temporarily out of stock - back order for despatch 09/07/2020, delivery within 4 working days from despatch date
Price Each
Was MYR887.27
MYR 639.41
units
Per unit
1 - 11
MYR639.41
12 - 24
MYR628.23
25 +
MYR616.33
