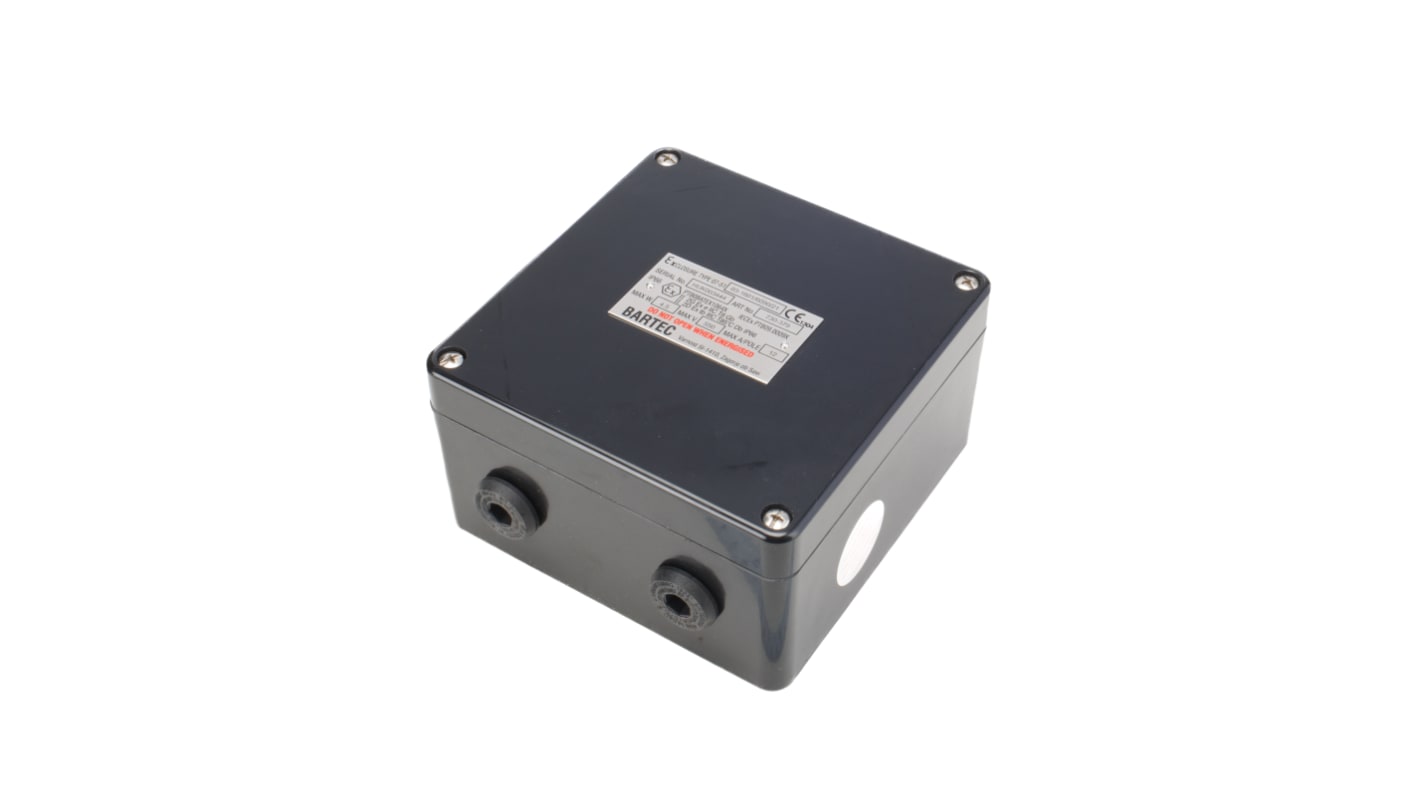

Bartec GB Junction Box, IP66, ATEX, 160mm x 160mm x 90mm

  • RS Stock No. 730-379
  • Mfr. Part No. GB 160 - 730379
  • Manufacturer Bartec
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

Control Gear and Switchgear IP66

This distribution box / empty enclosure is manufactured of high impact resistance, glass-fibre reinforced polyester SMC & DMC providing extraordinary stability and corrosion resistance. This black enclosure is made from an antistatic material and has been tested and approved by the BASEEFA authorities according to the latest European Standards. These correspond to the requirements of the EC directive 94/9/EC (ATEX).

Features and Benefits:

ATEX-certified
BASEEFA-certified
External earth connection
Extended ambient temperature range
Black glass filled polyester enclosure
Shock Resistant with pre-punched fixing holes

Junction boxes are available in variety of sizes:

Bartec ATEX Junction Box, IP66, 122mm x 120mm x 90mm (730-363)
Bartec ATEX Junction Box, IP66, 160mm x 160mm x 90mm (730-379)
Bartec ATEX Junction Box, IP66, 255mm x 250mm x 120mm (730-385)

Typical Application:

Junctions Boxes are primarily used in building construction and are designed to provide protection to wiring circuits and electrical connections for easy access. Boxes are usually made from metal or heavy-duty plastic and in most situations can be used both indoor and outdoor due to water and impact resistance.
Typically junction boxes are used for:
• Connecting additional sockets to circuits
• Adding lighting points
• Extending circuits
• Electricity circuit repairs

Approvals & Certification:

• ATEX EC directive 94/9/EC
• BAS 98 ATEX 3089U
• BASEEFA
• EN 50014
• EEx II 2G, EEx e II T6 increased safety
• IP 66 (IEC 144/EN 60529)

FAQs:

Does this box come with terminal?
No, these boxes do not come with terminals.

What's included in the set?
Boxes are supplied complete with:
• 4 screws
• instruction sheet

Supplied with

Two Ex blanking plugs (6 for 730-385)

Approvals

II 2 G EExe IIT6

Specifications
Attribute Value
Length 160mm
Material Glass Fibre Reinforced PET
Width 160mm
Dimensions L x W x H 160 x 160 x 90mm
IP Rating IP66
Height 90mm
Number of Terminals 15
Number of Ways 6
Colour Black
Hazardous Area Certification ATEX
Current Rating 15A
