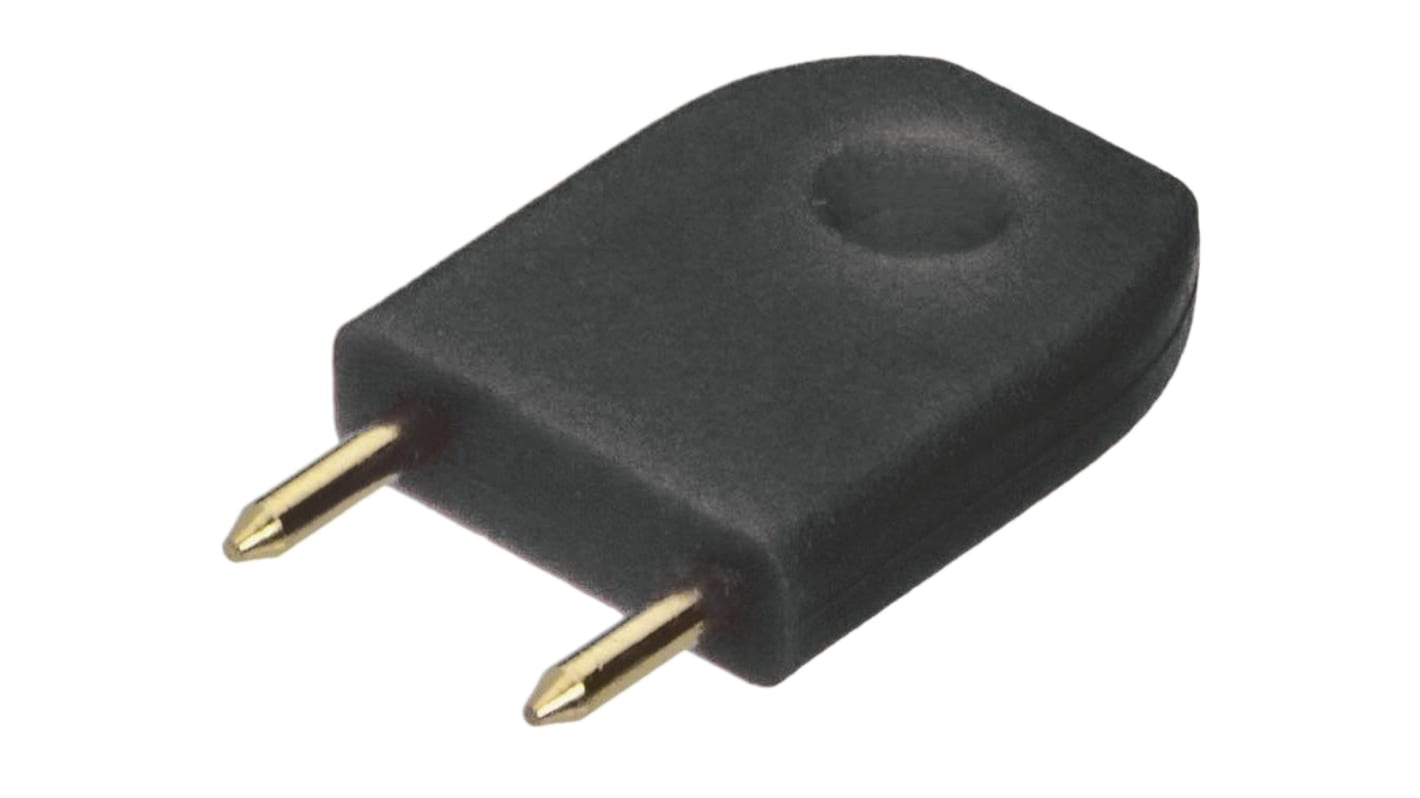

HARWIN, D3087 Jumper Male Straight Black Jumper, Shunt 2 Way 1 Row 6.35mm Pitch
- RS Stock No.:
- 909-4237
- Mfr. Part No.:
- D3087-98
- Manufacturer:
- HARWIN
465 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 5)
MYR6.36
| Units | Per Unit | Per Pack* |
| 5 - 15 | MYR6.36 | MYR31.80 |
| 20 - 45 | MYR6.228 | MYR31.14 |
| 50 - 245 | MYR6.036 | MYR30.18 |
| 250 - 495 | MYR5.888 | MYR29.44 |
| 500 + | MYR5.76 | MYR28.80 |
| *price indicative | ||
- RS Stock No.:
- 909-4237
- Mfr. Part No.:
- D3087-98
- Manufacturer:
- HARWIN
Technical data sheets
Legislation and Compliance
Product Details
Harwin D308 Series 1mm Ø Shorting Link Plugs
D308 series 1mm diameter insulated and un-insulated shorting link plugs with a variety of leg pitches and insulation colours. These D308 insulated shorting link plugs have a high performance gold plated brass finish and a colour coded PBT UL94V-0 housing. The insulated versions are not designed for direct soldering to the the PCB but can be used with PCB sockets in hardware programming applications. The D308 un-insulated links can be soldered directly onto a PCB for permanent linking.
Part numbers D308-X-97, D308-X-98 and D308-X-99 are insulated versions
Part numbers D308-X-97, D308-X-98 and D308-X-99 are insulated versions
Specifications
Attribute | Value |
|---|---|
| Type | Jumper, Shunt |
| Number of Contacts | 2 |
| Pitch | 6.35mm |
| Gender | Male |
| Colour | Black |
| Number of Rows | 1 |
| Length | 9.5mm |
| Width | 3.2mm |
| Depth | 12.7mm |
| Series | D3087 |
| Contact Material | Brass |
| Contact Plating | Gold over Nickel |
| Orientation | Straight |
