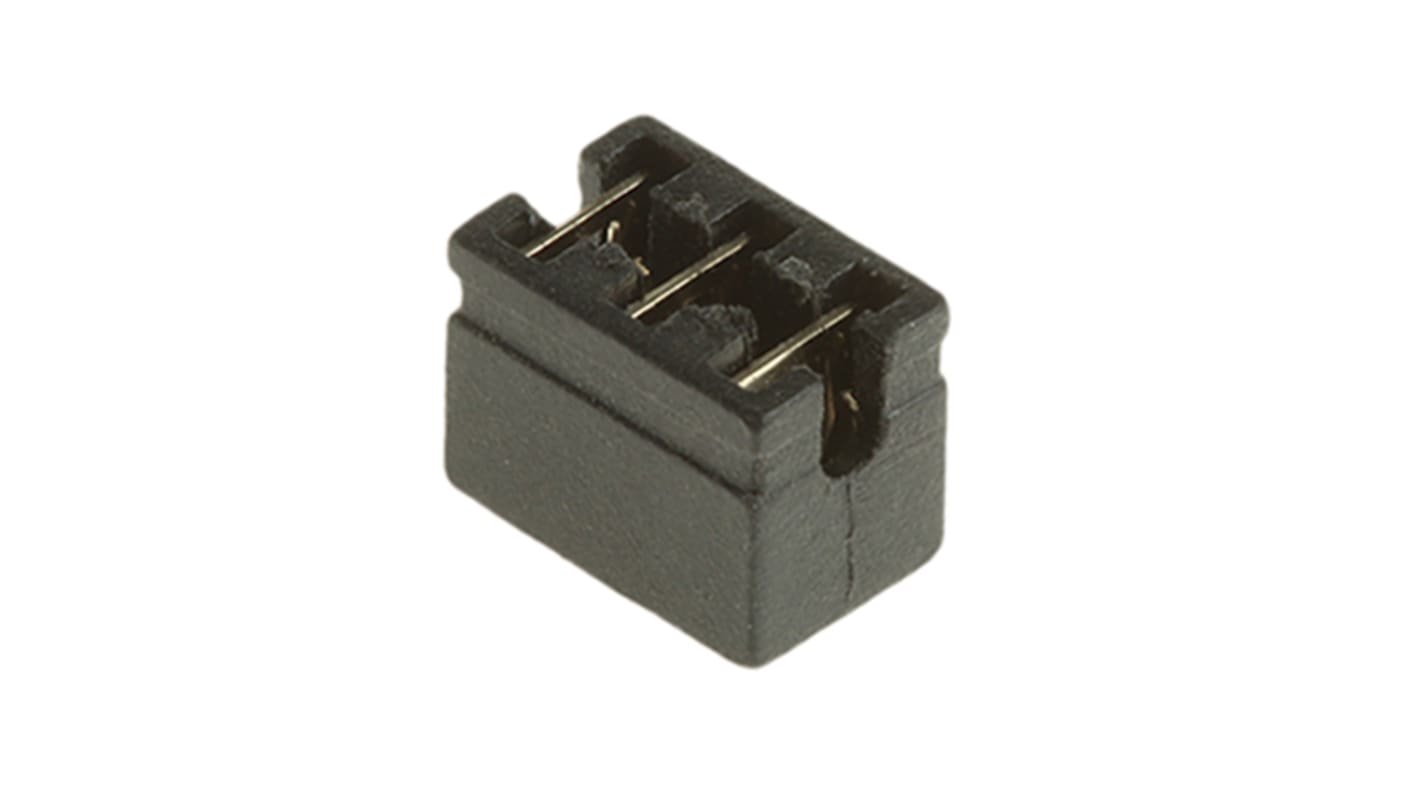

RS PRO Shorting Link Female Straight Black Open Top 3 Way 1 Row 2.54mm Pitch

  • RS Stock No. 251-8581
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Multiway Shorting Links

From RS Pro, these Multiway shorting links allow up to 8 header pairs to be shorted at once. With a housing material rated to UL94V-0, this PCB connector is perfect for your application. All models are highly reliable and excellent quality.

Features & Benefits

Tin plated phosphor bronze contacts rated 3A Designed to mate with 0.64 mm headers

//media.rs-online.com/t_line/L251867-01.gif

2.54mm PCB Connector RS Range

A large variety of connector options, to cover the majority of board-to-board, bussing and programming requirements.

Specifications
Attribute Value
Type Open Top
Number of Contacts 3
Pitch 2.54mm
Gender Female
Colour Black
Number of Rows 1
Length 7.62mm
Width 6.5mm
Depth 4.95mm
Contact Material Phosphor Bronze
Contact Plating Tin over Nickel
Orientation Straight
Maximum Contact Resistance 30mΩ
160 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 10)
Was MYR2.453
MYR 2.428
units
Per unit
Per Pack*
10 - 190
MYR2.428
MYR24.28
200 - 740
MYR2.287
MYR22.87
750 - 2990
MYR2.101
MYR21.01
3000 - 5990
MYR1.995
MYR19.95
6000 +
MYR1.922
MYR19.22
*price indicative
