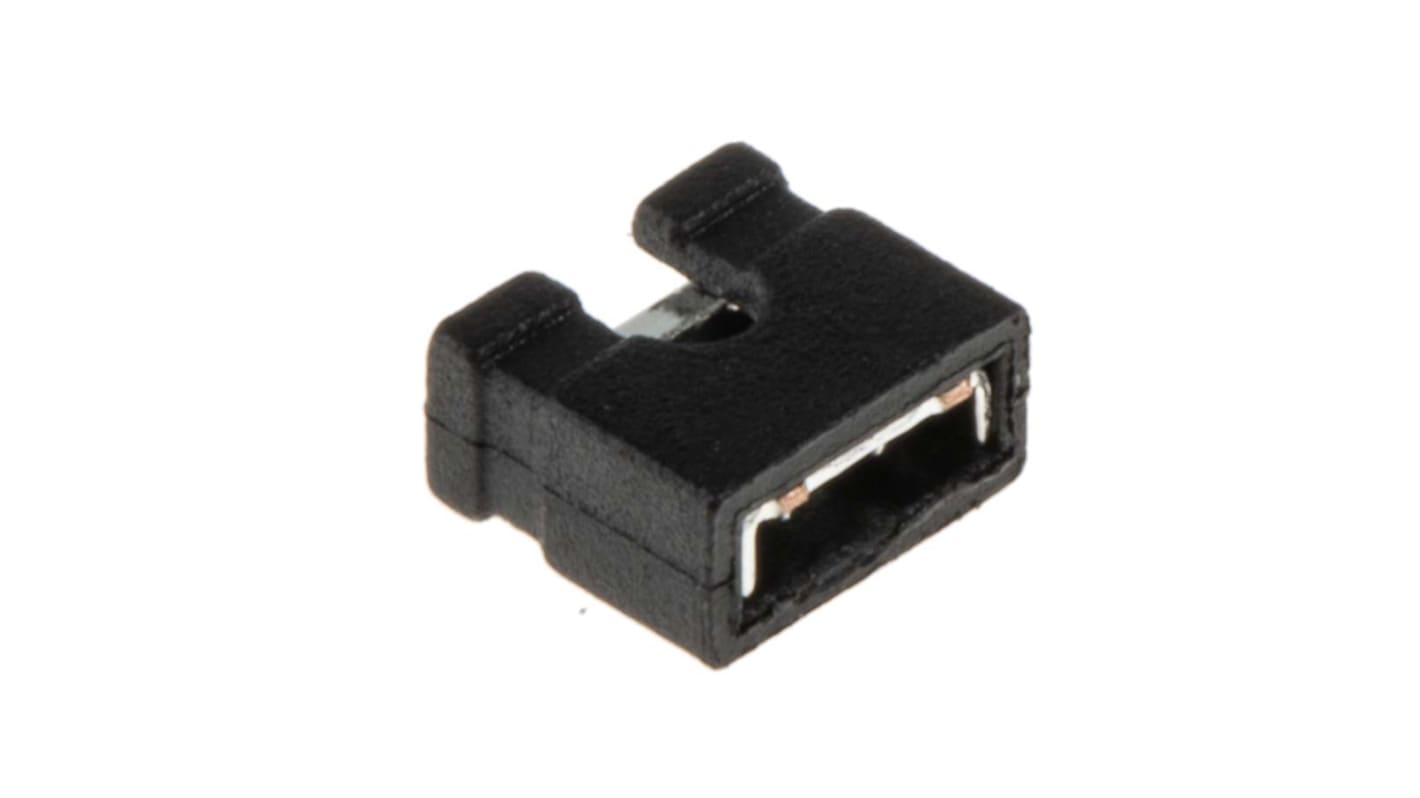

RS PRO Shorting Link Female Straight Black Open Top 2 Way 1 Row 2.54mm Pitch

  • RS Stock No. 251-8569
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS Pro 2.54mm Low Profile Open Shorting Links

Brought to you from RS Pro, these open shorting links utilise a 2.54 mm pitch, 3A rated bright tin plated phosphor bronze contacts and PBT UL94V-0 housings. These 2.54 mm open shorting links are designed to mate with and allow probing of 0.64 mm² headers. All models are highly reliable and excellent quality.

Features & Benefits

Stock numbers 251-8682 (black), 251-8698 (red) are 5.97 mm high profile Stock number 251-8569 is a low profile open shorting links with a 4.5mm height

//media.rs-online.com/t_line/L251856-01.gif

2.54mm PCB Connector RS Range

A large variety of connector options, to cover the majority of board-to-board, bussing and programming requirements.

Specifications
Attribute Value
Type Open Top
Number of Contacts 2
Pitch 2.54mm
Gender Female
Colour Black
Number of Rows 1
Length 4.98mm
Width 6.47mm
Depth 2.44mm
Contact Material Phosphor Bronze
Contact Plating Tin over Nickel
Orientation Straight
Maximum Contact Resistance 75mΩ
10300 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 10)
MYR 0.537
units
Per unit
Per Pack*
10 - 190
MYR0.537
MYR5.37
200 - 740
MYR0.491
MYR4.91
750 - 2990
MYR0.451
MYR4.51
3000 - 5990
MYR0.436
MYR4.36
6000 +
MYR0.419
MYR4.19
*price indicative
