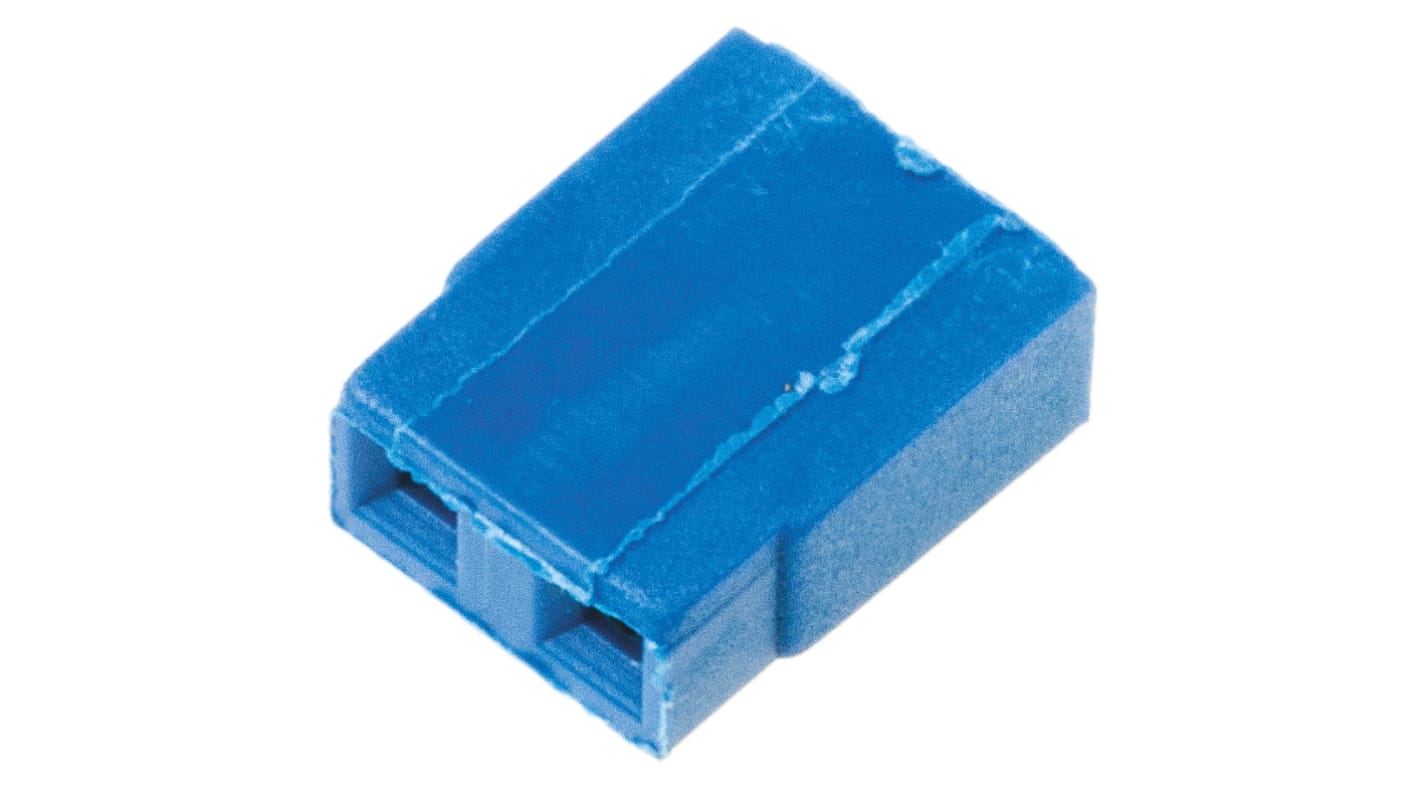

HARWIN Jumper Female Straight Blue Open Top 2 Way 1 Row 2.54mm Pitch

  • RS Stock No. 173-0822
  • Mfr. Part No. M7571-05
  • Manufacturer HARWIN
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

RS 2.54mm Open Top Jumper Socket

Open top jumper socket 2-way jumper link which is end and side stackable on a 2.54mm grid. This 3A rated 2.54mm open top jumper link plugs on to 0.635 sq or round posts 5.84mm long on a 2.54mm pitch, has a tapered entry for pin insertion, a high pressure double-sided gold plated contact and a blue glass filled polyester UL94V-0 housing. Typical applications for this 2.54mm open top jumper socket include bussing, programming and switching replacement.

2.54mm PCB Connector RS Range

A large variety of connector options, to cover the majority of board-to-board, bussing and programming requirements.

Specifications
Attribute Value
Type Open Top
Number of Contacts 2
Pitch 2.54mm
Gender Female
Colour Blue
Number of Rows 1
Contact Plating Gold
Orientation Straight
Maximum Contact Resistance 30mΩ
Temporarily out of stock - back order for despatch 06/03/2020, delivery within 4 working days from despatch date
Price Each (In a Bag of 1000)
MYR 0.501
units
Per unit
Per Bag*
1000 +
MYR0.501
MYR501.00
*price indicative
