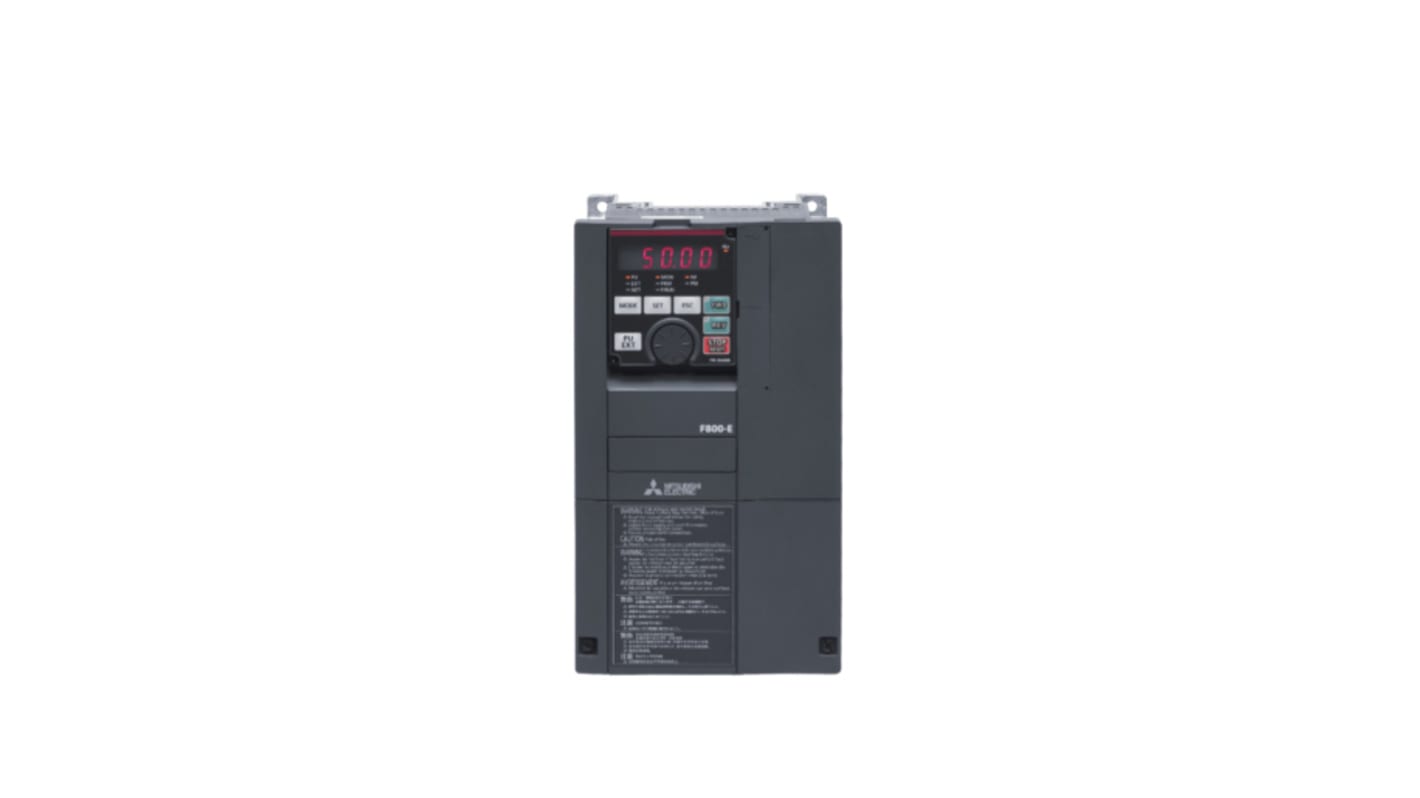

Mitsubishi Inverter Drive, 3-Phase In, 50/60Hz Out 1.5 kW, 400 V ac with EMC Filter, 3.8 A FR-F800, IP20

  • RS Stock No. 180-9446
  • Mfr. Part No. FR-F840-00038-E2-60
  • Manufacturer Mitsubishi
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

The FR-F800 is a pump and fan control VFD optimized for maximum energy saving. Equally at home in an industrial environment or as part of an integrated HVAC system, FR‑F800 can also be used as a cost-effective drive for controlling other types of lighter duty constant torque loads.

Convenient installation without an enclosure
Standard USB port - for simple set-up using a memory stick
Real-time clock - Enables time stamping of trip messages for easy diagnostics
’Load detection’ system - Detects broken drive belts and other mechanical problems
Anti-Windmill function - avoids costly damage to drive and motor by smoothly controlling loads which are already spinning before start-up

Specifications
Attribute Value
Power Rating 1.5 kW
Phase 3
Supply Voltage 400 V ac
Current Rating 3.8 A
Output Frequency 50/60Hz
For Use With Compressor, Fan Application, Pump
Ambient Temperature -10 → +40 (SLD) °C, -10 → +50 (LD) °C
Overall Width 260mm
Overall Length 150mm
Overall Depth 140mm
Control Panel Yes
Drive Type PID Control
Field Bus Communication Type BACnet
Filter Included Yes
Mounting Type Wall Mount
Series FR-F800
Interface Ethernet
IP Rating IP20
Function Motor Control
1 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 3,919.51
units
Per unit
1 +
MYR3,919.51
