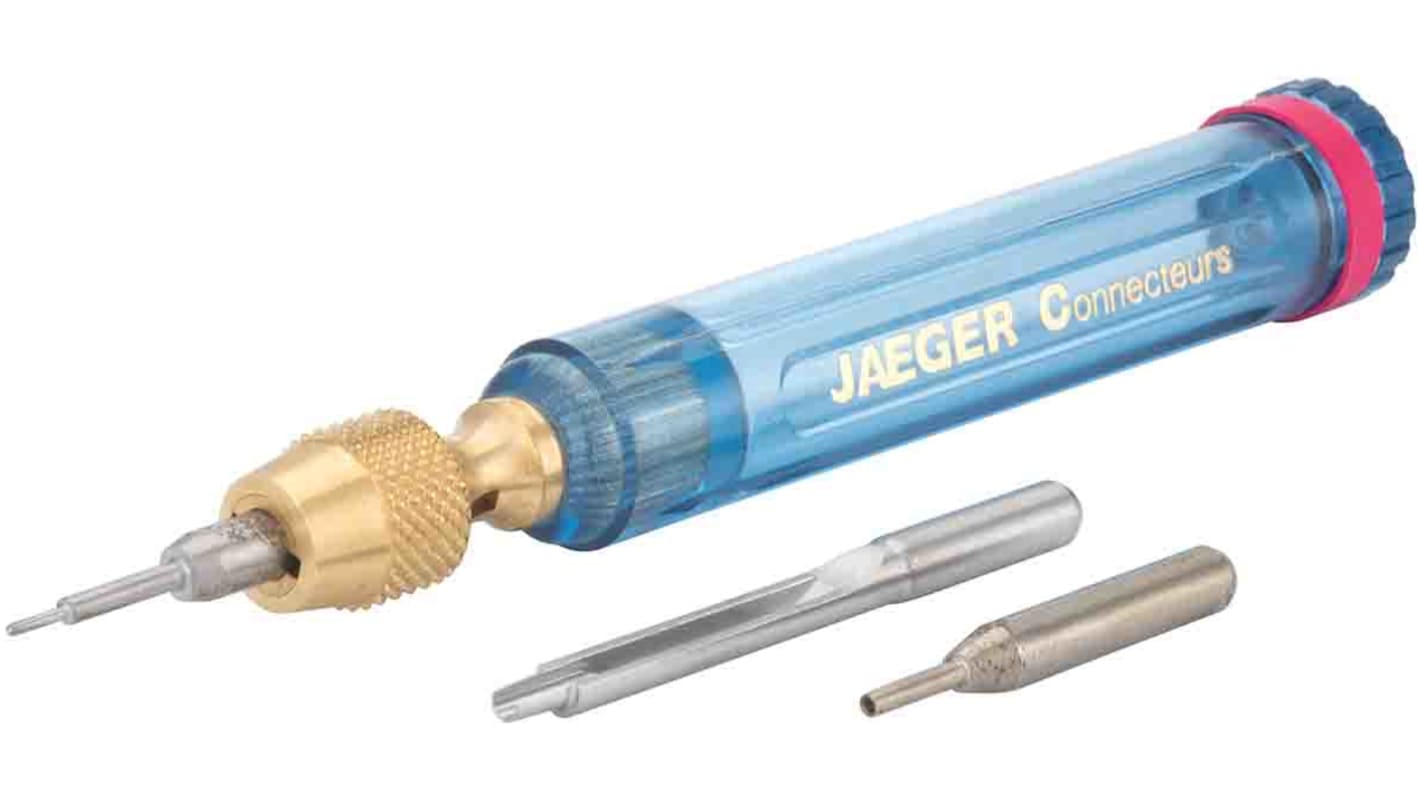

Jaeger Insertion Extraction Tool

  • RS Stock No. 285-5161
  • Mfr. Part No. 5774 540 06
  • Manufacturer Jaeger
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Tooling

Insertion/Extraction tool

Note

Insert/Extraction tool supplied by Jaeger.
Crimp tooling is supplied by Glenair.
Ratchet Crimp tool frame and turret for precision crimping of contacts (This tooling is not illustrated)

//media.rs-online.com/t_line/L0324654-10.gif

Jaeger Industrial - Metal

Based upon the Standard and ’Rapid’ series of connector, the Industrial series offers superior durability in applications where connectors will be connected and disconnected many times. Bayonet locking, supplied with 3, 7, or 12 crimp contacts. Crimp tooling and an insert/extraction tool is also available.

12 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 344.02
units
Per unit
1 - 4
MYR344.02
5 - 9
MYR323.99
10 - 24
MYR309.88
25 - 49
MYR300.18
50 +
MYR291.09
