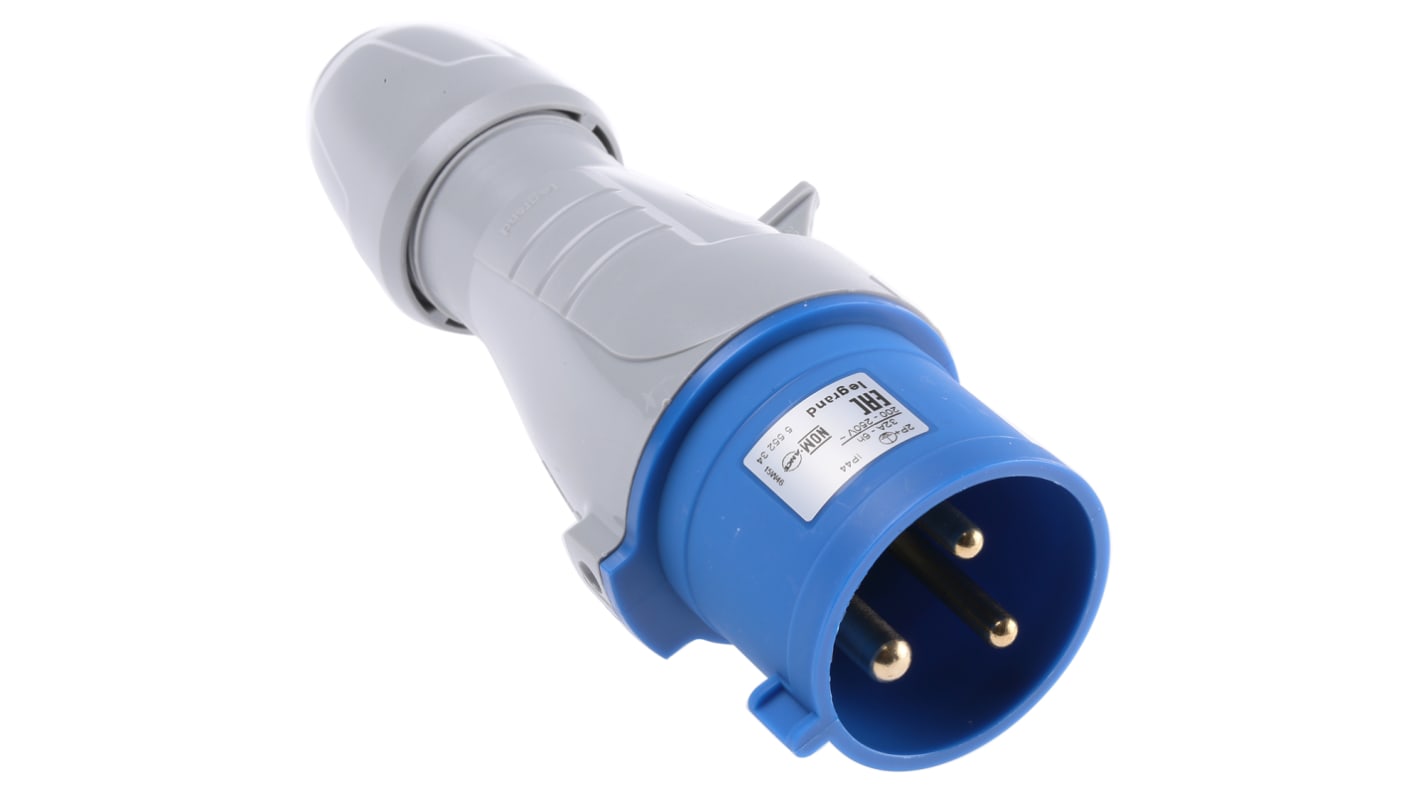

Legrand P17 Tempra Pro Series, IP44 Blue Cable Mount 2P+E Industrial Power Plug, Rated At 32A, 230 V

  • RS Stock No. 821-1942
  • Mfr. Part No. 5 552 34
  • Manufacturer Legrand
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TR
Product Details

P17 Tempra Pro Straight Plug Connectors, IP44

Legrand P17 Tempra Pro straight plug connectors, IP44 rating with 2 or 3 pole and earth/neutral arrangement as stated, rated at 16 and 32A. The connector body is constructed from polymide 6 material, for use with differing voltages as defined by the colour of the cap, yellow 100 to 130V, blue 200 to 250V, red 380 to 415V. Features a single captive screw per terminal for easy connectivity, supplied unlocked.

Standards

BS EN 60309-1, BS EN 60309-2, BS EN 60529 (IP), BS EN 62262 (IK)

Legrand P17 Tempra Pro Industrial Power Connectors

Specifications
Attribute Value
Current Rating 32A
Plug/Socket Plug
Pole Format 2P+E
Voltage Rating 230 V
Mounting Type Cable Mount
IP Rating IP44
Colour Blue
Gender Male
Body Orientation Straight
Termination Method Screw Down
Series P17 Tempra Pro
Cable CSA 6mm²
Minimum Operating Temperature -25°C
Maximum Operating Temperature +40°C
Temporarily out of stock - back order for despatch 16/03/2020, delivery within 4 working days from despatch date
Price Each
MYR 51.29
units
Per unit
1 - 4
MYR51.29
5 +
MYR49.97
