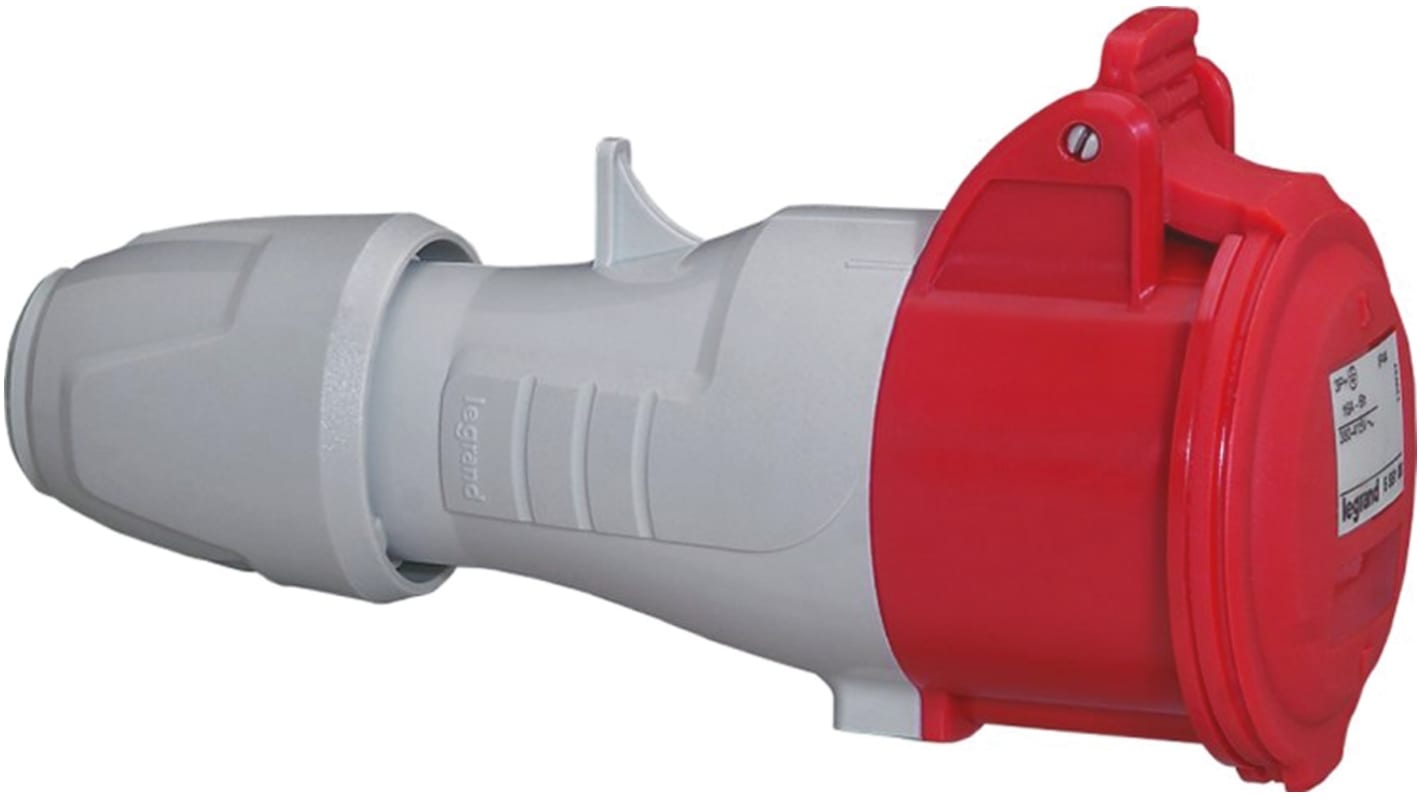

Legrand, P17 Tempra Pro IP44 Red Cable Mount 3P + E Industrial Power Socket, Rated At 32A, 415 V
- RS Stock No.:
- 821-1936
- Mfr. Part No.:
- 5 552 18
- Manufacturer:
- Legrand
21 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR109.76
| Units | Per Unit |
| 1 - 4 | MYR109.76 |
| 5 - 24 | MYR107.47 |
| 25 + | MYR96.72 |
- RS Stock No.:
- 821-1936
- Mfr. Part No.:
- 5 552 18
- Manufacturer:
- Legrand
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TR
Product Details
P17 Tempra Pro Mobile Sockets, IP44
Legrand P17 Tempra Pro mobile socket connectors, IP44 rating with 2 or 3 pole and earth/neutral arrangement as stated, rated at 16 and 32A. The connector body is constructed from polymide 6 material, for use with differing voltages as defined by the colour of the cap, yellow 100 to 130V, blue 200 to 250V, red 380 to 415V. Features a single captive screw per terminal for easy connectivity, supplied unlocked.
Standards
BS EN 60309-1, BS EN 60309-2, BS EN 60529 (IP), BS EN 62262 (IK)
Legrand P17 Tempra Pro Industrial Power Connectors
Specifications
Attribute | Value |
|---|---|
| Current Rating | 32A |
| Plug/Socket | Socket |
| Pole Format | 3P + E |
| Voltage Rating | 415 V |
| Mounting Type | Cable Mount |
| Gender | Female |
| Body Orientation | Straight |
| Termination Method | Screw |
| IP Rating | IP44 |
| Series | P17 Tempra Pro |
| Colour | Red |
| Cable CSA | 6.0mm² |
| Maximum Operating Temperature | +40°C |
| Minimum Operating Temperature | -25°C |
