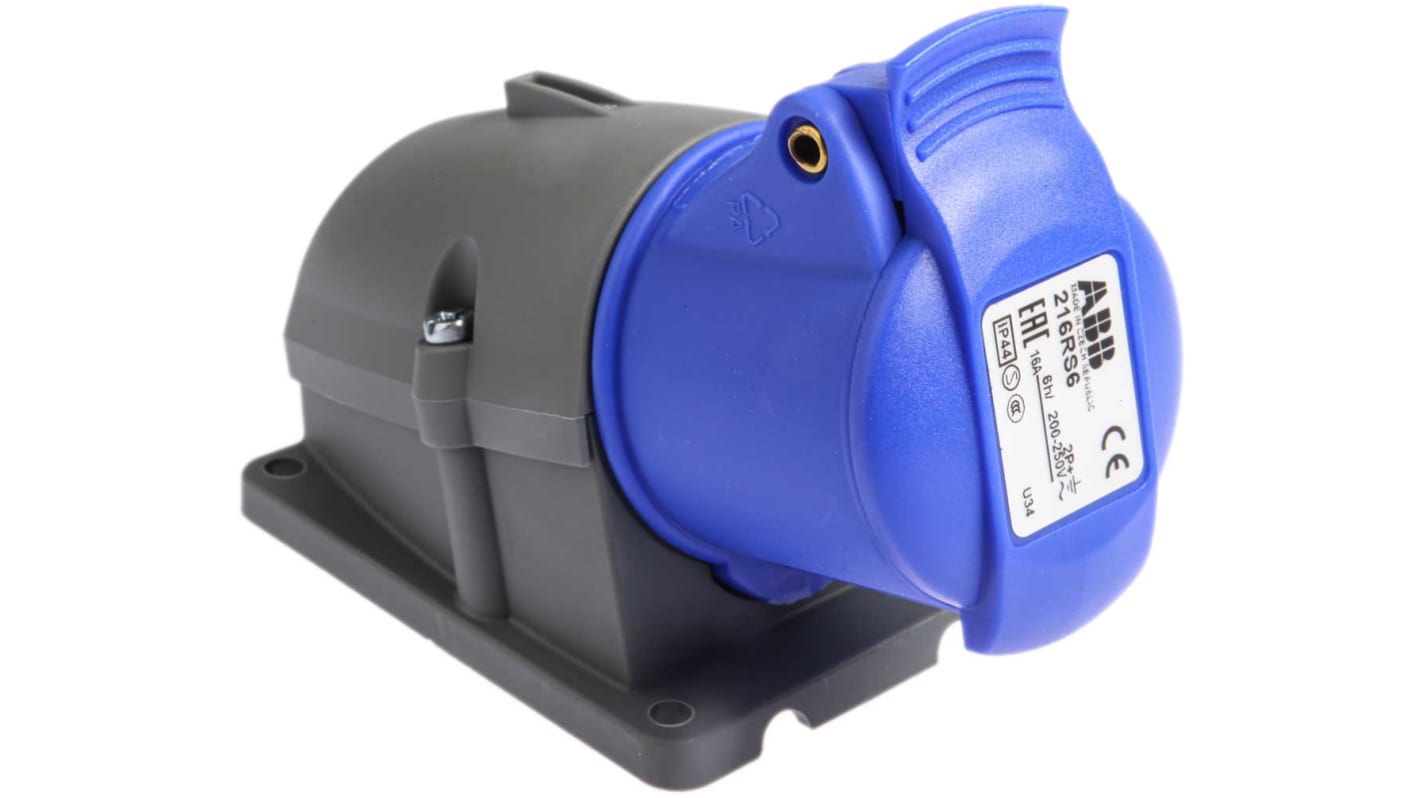

ABB Easy & Safe Series, IP44 Blue Wall Mount 2P+E Right Angle Industrial Power Socket, Rated At 16A, 230 V

  • RS Stock No. 720-9507
  • Mfr. Part No. 2CMA193098R1000 - 216RS6
  • Manufacturer ABB
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CZ
Product Details

Surface Sockets

Flexible membrane and metric threaded insert for top cable entry
Rear knock out cable entry
720-9493 18-M20mm
720-7500 22-M25mm
720-9507 18-M20mm
720-9510 18-M20mm
720-9529 22-M25mm
749-1927 M32mm

Specifications
Attribute Value
Current Rating 16A
Plug/Socket Socket
Pole Format 2P+E
Voltage Rating 230 V
Mounting Type Wall Mount
IP Rating IP44
Colour Blue
Gender Female
Body Orientation Right Angle
Termination Method Screw Down
Series Easy & Safe
Maximum Operating Temperature +65°C
Temporarily out of stock - back order for despatch 25/10/2019, delivery within 4 working days from despatch date
Price Each
MYR 66.33
units
Per unit
1 - 4
MYR66.33
5 +
MYR64.66
