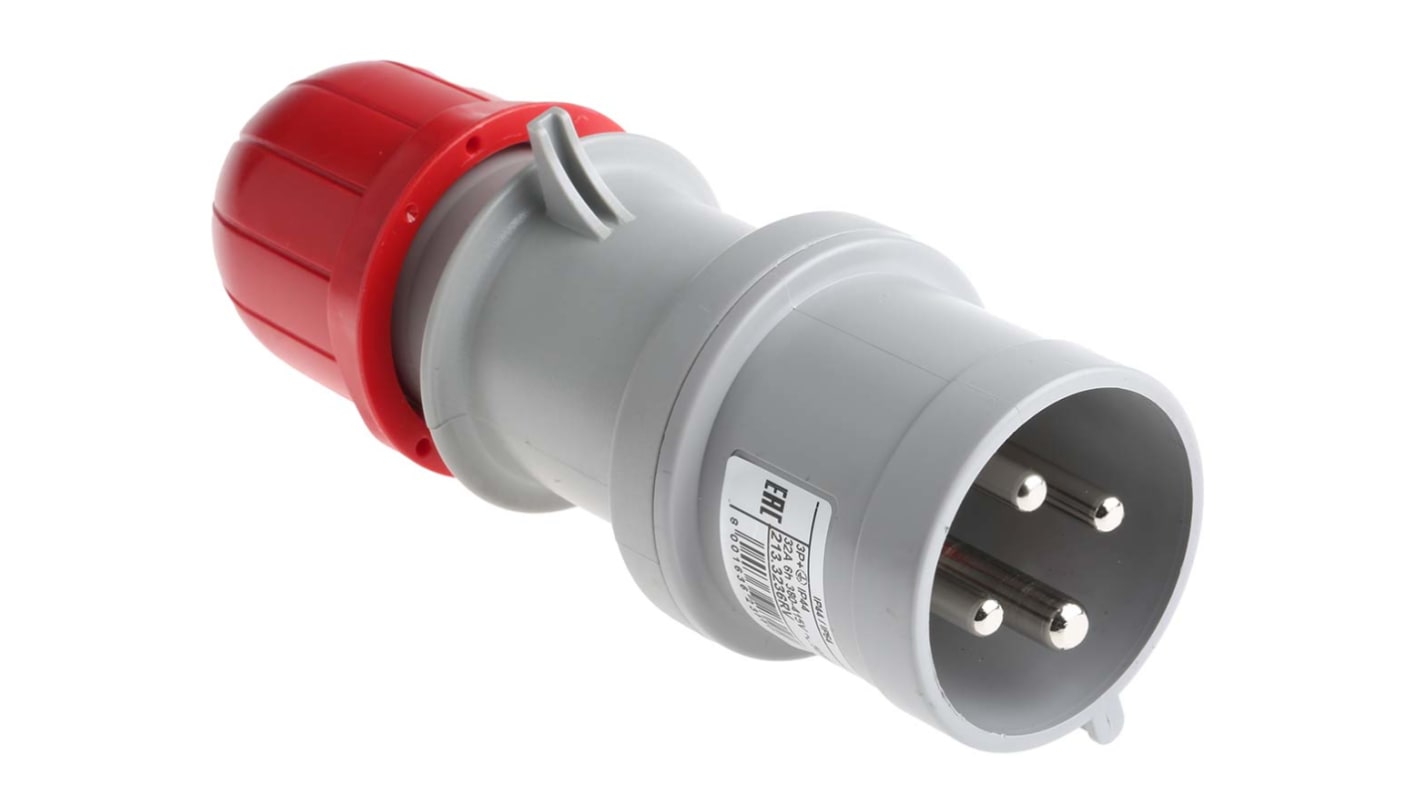

Scame IP44 Red Cable Mount 3P + E Industrial Power Connector Adapter Plug, Rated At 32A, 415 V,With Phase Inverter
- RS Stock No.:
- 703-3779
- Mfr. Part No.:
- 213.3236RV
- Manufacturer:
- Scame
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
19 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR195.72
| Units | Per Unit |
| 1 - 4 | MYR195.72 |
| 5 - 24 | MYR191.81 |
| 25 + | MYR172.64 |
- RS Stock No.:
- 703-3779
- Mfr. Part No.:
- 213.3236RV
- Manufacturer:
- Scame
Technical data sheets
Legislation and Compliance
Product Details
Phase Inverter Plugs
Rapidly invert two phases in order to return to the correct direction of rotation of three-phase motors.
Features and benefits
- 7033767, 7033776, 7033779, 7033782 are IP44 Rated. 7033789, 7033795, 7033808, 7033811 are IP66 and IP67 rated
- Voltage ratings of 415V.
- 40 °C maximum operating temperature
- All models offered in the range are highly reliable and excellent quality
- Straight body orientation
- Constructed from a toughened engineering plastic
Applications
These Industrial connectors are widely used in a range of applications such as
- Providing power for machinery on construction sites
- Woodworking machines
- Maintenance workshops in the light industry
- Powering lighting equipment in the sports and entertainment industry
What are IP44, IP66 and IP67 ratings?
IP44 rating provides protection from tools and small wires greater than 1 millimetre as well as from water spray from any direction.
IP66 rating provides protection from tools and small wires greater than 1 millimetre as well as from water spray from any direction.
IP67 rating provides protection from total dust ingress and immersion between 15cm and 1 meter in depth.
IP66 rating provides protection from tools and small wires greater than 1 millimetre as well as from water spray from any direction.
IP67 rating provides protection from total dust ingress and immersion between 15cm and 1 meter in depth.
Specifications
Attribute | Value |
|---|---|
| Current Rating | 32A |
| Plug/Socket | Plug |
| Pole Format | 3P + E |
| Voltage Rating | 415 V |
| Mounting Type | Cable Mount |
| Gender | Male |
| Body Orientation | Straight |
| Termination Method | Screw |
| IP Rating | IP44 |
| Colour | Red |
| Maximum Operating Temperature | +40°C |
| Minimum Operating Temperature | -25°C |
| Phase Inverter | Yes |
