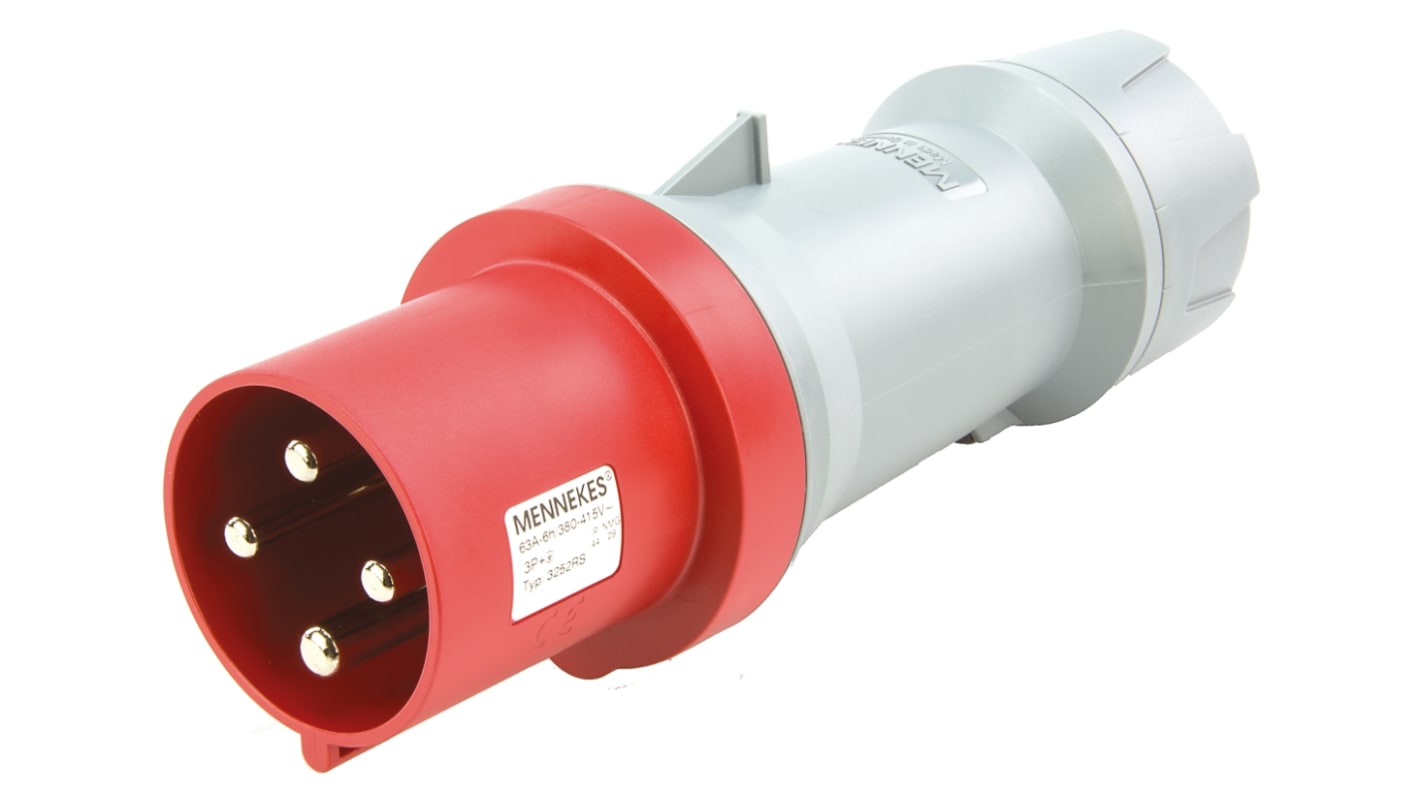

Mennekes PowerTOP Series, IP44 Red Cable Mount 3P+E Industrial Power Plug, Rated At 63A, 415 V

  • RS Stock No. 679-6909
  • Mfr. Part No. 3252RS
  • Manufacturer MENNEKES
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

PowerTOP Plugs 63A/125A

From Mennekes, the PowerTOP series of industrial plugs are robust and reliable, boasting easy assembly for reduced installation time. The nickel plated contacts ensure good corrosion protection in aggressive environments and at high degrees of air humidity, and the contact carriers are highly heat resistant. PowerTOP plugs are well suited to industrial environments.

Features and Benefits: Easy opening and closing of lid though integrated opening aid Practical front and rear locking slides Large cage type terminals which securely clamp the conductor

Mennekes PowerTOP

Plugs, sockets, appliance inlets and interlocked sockets conforming to the latest requirements of British and European standards. The insulator outer casing and interiors are manufactured from Amaplast (nylon 6) 16/32A, Amelan 63 / 125A for excellent mechanical performance. This material provides good electrical insulation and will meet the requirements of most industrial environments.
Contact tubes and pins are made of brass. To prevent incorrect connection, the earth contact is in a different position, relative to the safety key way on each socket outlet, for each voltage. All types are colour coded by voltage and are suitable for 50/60Hz operation.
Products are type tested to VDE.

Attribute Value
Current Rating 63A
Plug/Socket Plug
Pole Format 3P+E
Voltage Rating 415 V
Mounting Type Cable Mount
IP Rating IP44
Colour Red
Gender Male
Body Orientation Straight
Series PowerTOP
Maximum Operating Temperature +40°C
Minimum Operating Temperature -25°C
24 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 317.47
Per unit
1 - 4
5 +
