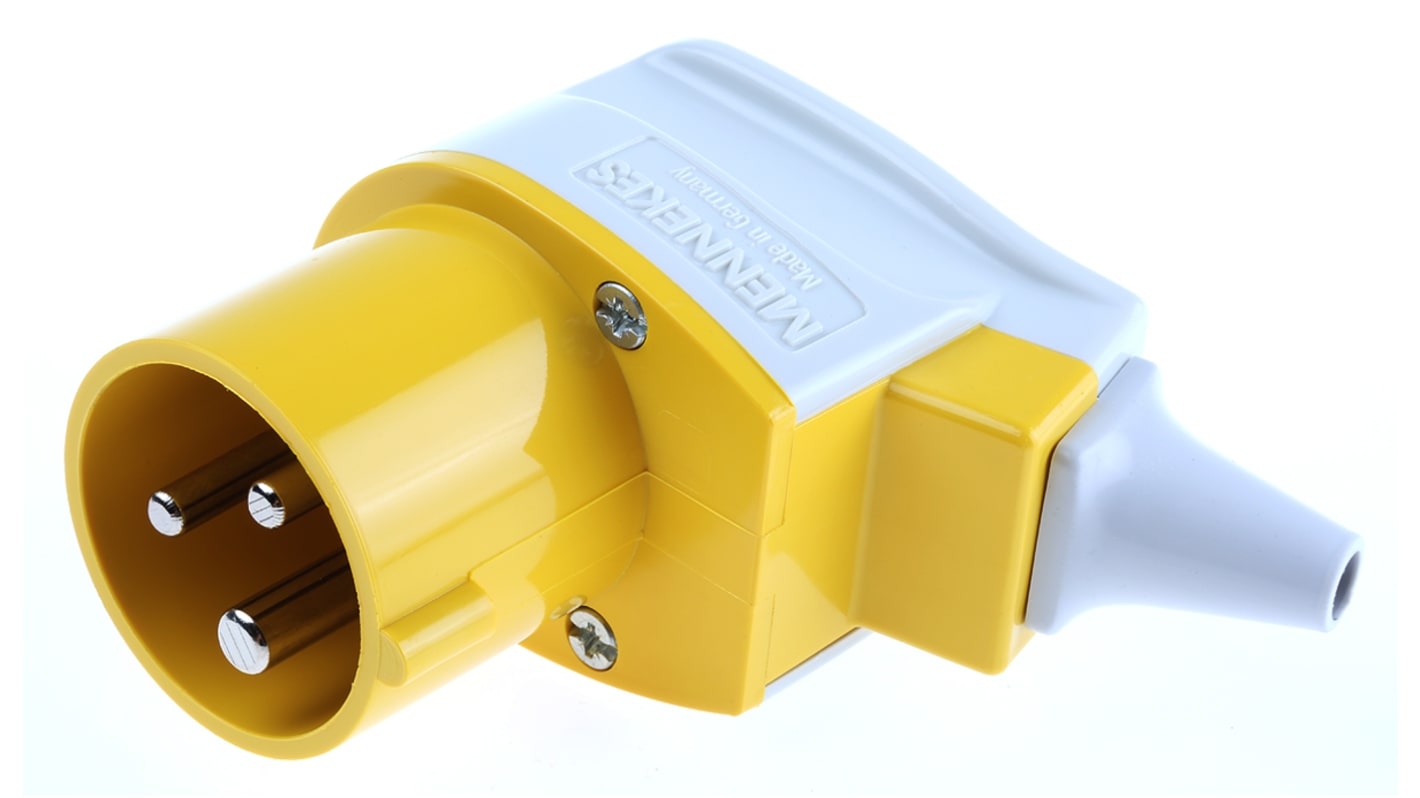

Mennekes IP44 Yellow Cable Mount 2P+E Right Angle Industrial Power Plug, Rated At 16A, 110 V

  • RS Stock No. 491-585
  • Mfr. Part No. 1410
  • Manufacturer MENNEKES
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

90° Free Plug

Offers a space-saving alternative
External conical cable grommet allows water to run off back of plug
Maximum diameter of incoming cable is 17.35mm
Separate internal strain relief
Large area terminals accept conductors up to 2.5mm²

Note

The 400V 3PN + E version has a unique swivel cable entry which is rotatable 60° left or right from standard position – ideal where space is restricted

Mennekes AM-TOP IP44 and IP67

Plugs, sockets, appliance inlets and interlocked sockets conforming to the latest requirements of British and European standards. The insulator outer casing and interiors are manufactured from Amaplast (nylon 6) for excellent mechanical performance from -25°C to +55°C. This material provides good electrical insulation and will meet the requirements of most industrial environments.,Contact tubes and pins are made of brass. To prevent incorrect connection, the earth contact is in a different position, relative to the safety key way on each socket outlet, for each voltage. All types are colour coded by voltage and are suitable for 50/60Hz operation.,Products are type tested to VDE.

Specifications
Attribute Value
Current Rating 16A
Plug/Socket Plug
Pole Format 2P+E
Voltage Rating 110 V
Mounting Type Cable Mount
IP Rating IP44
Colour Yellow
Gender Male
Body Orientation Right Angle
Termination Method Screw Down
Cable CSA 1 2.5mm²
Temporarily out of stock - back order for despatch 04/02/2020, delivery within 4 working days from despatch date
Price Each
MYR 96.27
units
Per unit
1 - 4
MYR96.27
5 +
MYR91.46
