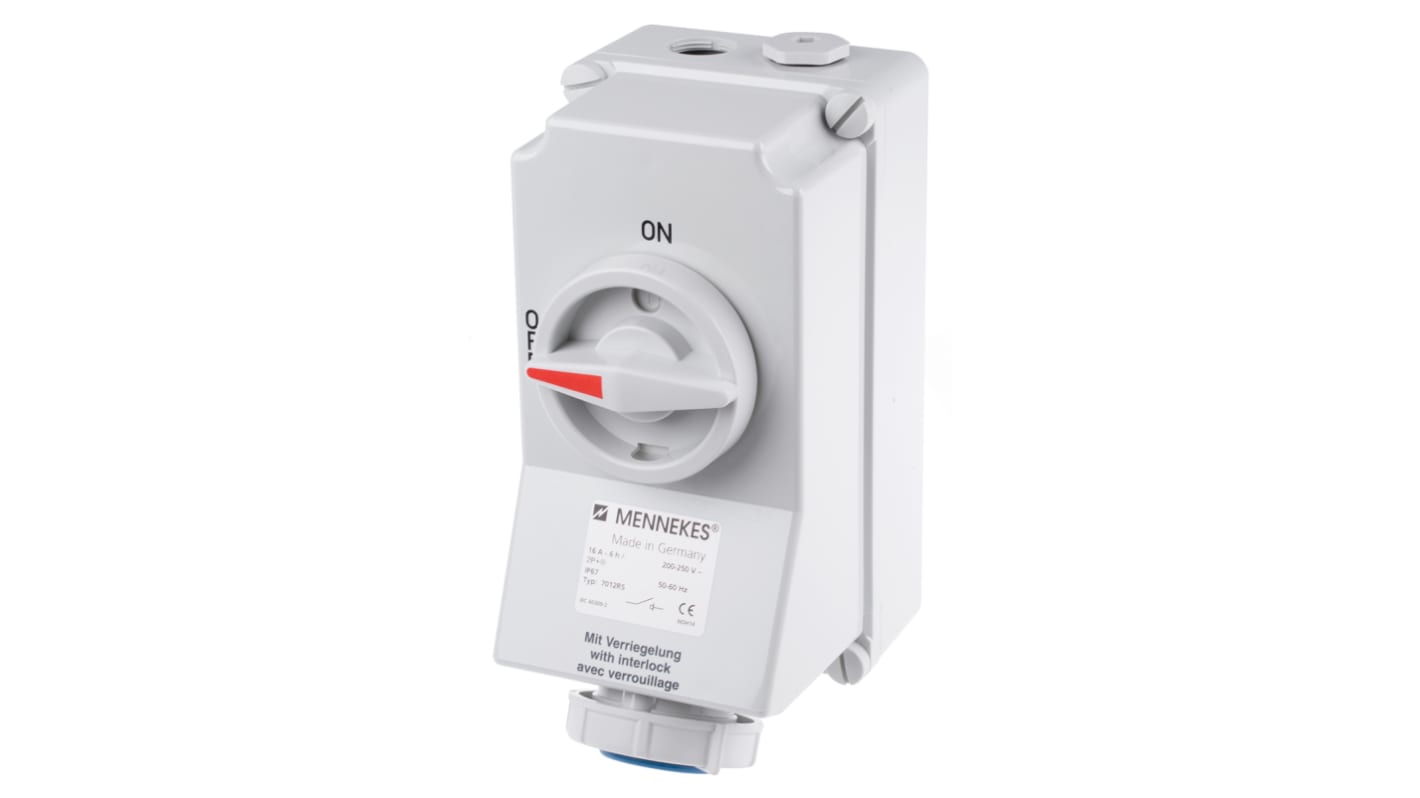

Mennekes Switchable IP67 Interlocked Socket 2P+E, Earthing Position 6h, 16A, 230 V

  • RS Stock No. 184-4261
  • Mfr. Part No. 7012A
  • Manufacturer MENNEKES
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Vertical

Fully interlocked switched (phase) sockets give enhanced electrical safety.

Switch cannot be energised until the plug is inserted
Plug cannot be withdrawn with the switch in the ON position, which prolongs contact life
16A - 63A can be padlocked in the OFF position
Housings are moulded from thermoplastic materials, giving insulation, strength and durability properties
Continuous polyurethane gasket between lid and base
Neutral block must be removed first before fitting auxillary contact block

* Has metric threads on mounting box cable entries

Standards

BS4343 (IEC/EN 60309-2)

Specifications
Attribute Value
Plug/Socket Socket
Pole Format 2P+E
Switchable Yes
Colour Blue
IP Rating IP67
Voltage Rating 230 V
Current Rating 16A
Body Orientation Straight
Dimensions 252 x 118 x 144mm
Earthing Position 6h
Body Material Thermoplastic
Depth 144mm
Length 252mm
Width 118mm
In Global stock for delivery within 4 - 6 working days.
Price Each
MYR 1,399.09
units
Per unit
1 +
MYR1,399.09
