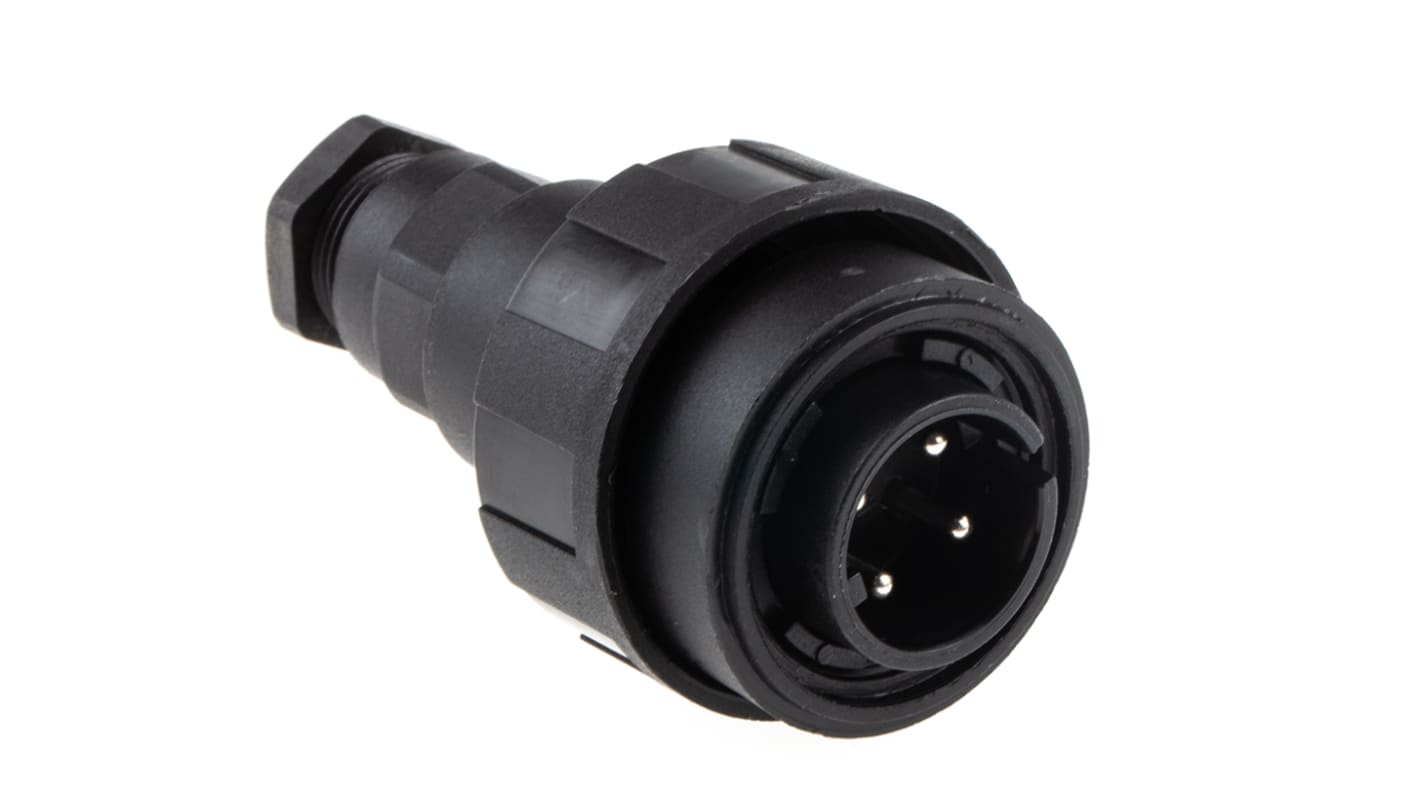

Bulgin Standard Buccaneer Series Male Cable Mount Connector, 4 contacts Socket

  • RS Stock No. 293-5857
  • Mfr. Part No. PX0748/P
  • Manufacturer Bulgin
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TN
Product Details

Bulgin Circular Connector

The Bulgin Buccaneer series 4-poles male circular flex connector has a plug-type connection. This connector has a voltage rating of 250VAC/DC and current rating is up to 10A per contact. This front panel mounting connector is ideal for use in challenging conditions. The connector shell is made from glass-filled polyamide with gold-plated copper alloy contacts. The connectors also feature a positive locking mating system that means the connector cannot be mismatched.
Environment
The standard series of buccaneer connectors are protected to IP68 when mated. This means they are dust-tight and resistant to particle ingresses such as dust and sand. They are also waterproof, meaning they are protected from liquid ingress up to the point of submersion for a limited time.
Frequently asked questions (FAQs)
Q: Are there accessories available for this connector?
A: There are connector caps available for standard buccaneer connectors, which maintain the IP68 sealing when mated pairs are uncoupled. The cap can also be used as a tool to aid the removal and refitting of inserts during assembly.
Q: How durable is the connector?
A: The standard buccaneer series of power connectors feature glass filled polyamide moulded housing that is resistant to dust, oil and saltwater.
Q: What are the mating requirements of this connector?
A: The buccaneer standard series cable connectors mate with corresponding in-line connectors for a cable to the cable connection, or with a panel, chassis and PCB connectors.
Q: Are contacts supplied with this connector?
A: The connector comes complete with contacts.

Features and Benefits

Screw termination
Straight body orientation
Cable acceptance ranges between 6mm and 8mm
Easy assembly, no special tools required
Insulation resistance is greater than 104Mohm
Operation temperature ranges between -20°C and 70°C
Positive locking keyways
Shell size is 38mm
Unshielded
Water and dustproof

Applications

Electrical equipment
Industrial automation

Certifications

CSA certified
IP68 rated
UL approved
VDE approved

Approvals

CSA; UL; VDE

Specifications
Attribute Value
Number of Contacts 4
Plug/Socket Plug
Mounting Type Cable Mount
Connector Size Standard
Termination Method Screw
Shell Size 38
Current Rating 10.0A
IP Rating IP68
Contact Gender Male
Voltage Rating 250 V ac/dc
Mating Type Threaded
Body Orientation Straight
Series Buccaneer
Housing Material Polymer
Gender Male
Contact Material Brass
Contact Plating Nickel
1503 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 67.25
units
Per unit
1 - 9
MYR67.25
10 - 49
MYR64.23
50 - 99
MYR61.59
100 - 249
MYR59.16
250 +
MYR57.06
