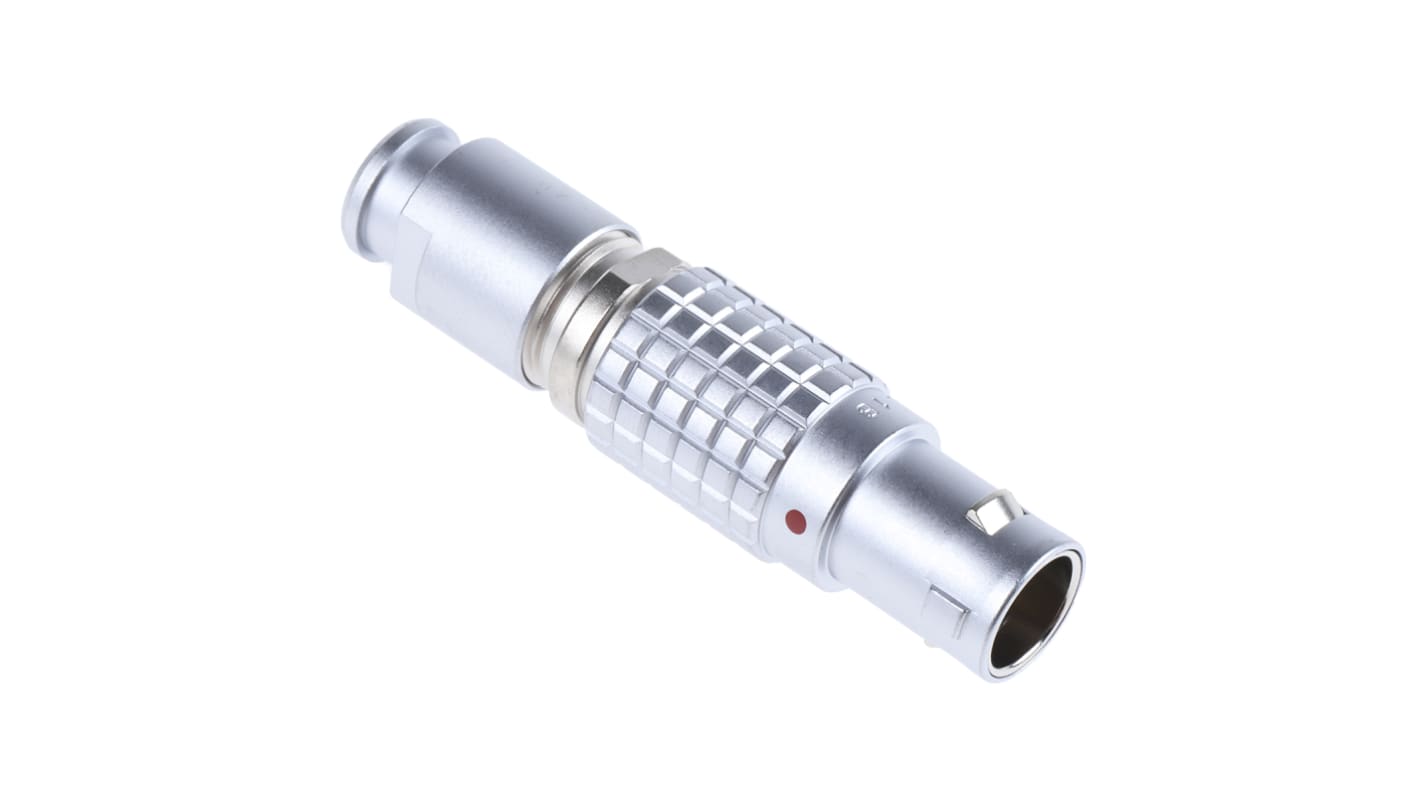

Lemo Circular Connector, 7 Contacts, Cable Mount, Plug, Male, IP50, 1B Series

RS Stock No.:: 215-6149
Mfr. Part No.:: FGG.1B.307.CLAD62Z
Manufacturer:: Lemo

Lemo Circular Connector, 7 Contacts, Cable Mount, Plug, Male, IP50, 1B Series

1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

105 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR222.31

Units	Per Unit
1 - 4	MYR222.31
5 - 24	MYR219.98
25 - 49	MYR217.40
50 +	MYR208.76

RS Stock No.:: 215-6149
Mfr. Part No.:: FGG.1B.307.CLAD62Z
Manufacturer:: Lemo

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CH

Product Details

Lemo Connector

The Lemo 1B series 7-contacts male push-pull connector has a plug in-line connection. This cable mount connector has a current rating of up to 2.0A. This connector features a highly precise push-pull latching system equipped with high-density panel spacing for an easy and secure connection. It has a rugged and robust design for outdoor and harsh applications. It is made from chrome-plated brass and includes a nickel-plated brass latch inner sleeve and collet nut.

Features and Benefits

Solder termination
Straight body orientation
360° EMC shielding
Cable acceptance ranges between 5.20mm and 6.20mm
Endurance is 5000 mating cycles
High vibration and shock resistance
Operation temperature ranges between -55°C and 250°C
Shell size is 1mm
Waterproof and UV resistance capabilities

Applications

Medical devices
Research
Test and measurement instrumentation

Certifications

IP50 rated
UL listed

Specifications

Attribute	Value
Number of Contacts	7
Mounting Type	Cable Mount
Plug/Socket	Plug
Contact Gender	Male
Termination Method	Solder
IP Rating	IP50
Current Rating	5.0A
Series	1B
Body Orientation	Straight
Shell Size	1
Housing Material	Brass
Contact Plating	Gold over Nickel
Contact Material	Brass
Maximum Operating Temperature	+250°C
Minimum Operating Temperature	-55°C
