RS PRO Panel Mount, Snap In Mount IEC Socket, 20A, 250 V ac

  • RS Stock No. 896-2149
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IN
Product Details

IEC Socket C13, Panel Mount Connectors

IEC socket C13 variant, snap-in panel mount outlet connectors with nylon-6 body and tin plated copper alloy mating contacts and faston terminals. These C13 connectors offers a hardwearing durable solution for many applications that require IEC C13 snap-in panel mount socket connectors.

What are IEC C13 Connectors?

Features and Benefits:
• HV Breakdown Test for 1 Minute: 2KVac
• Insulation Resistance at 500Vdc 1000 MΩ min.
• Permissible Temperature with/without load: 0 to 70 ° C
• Contact Resistance 10 mΩ max.

An IEC C13 connector is sometimes referred to as a ’cold’ connector. The IEC panel socket is a 3 wire two pole connector, neutral, earth and live. The C13 female connectors have a rated current of 10A and a maximum temperature rating of 70°C. This series of connectors conform to a recognised set of specifications called IEC-60320. The regulations are laid down by the IEC (International Electrotechnical Commission). This ensures they meet common global design standards.

Features and Benefits

• Rated at 250 V ac 10A
• Insulation Resistance at 500 VDC 100 MΩ Min
• Contact Resistance 10 mΩ Max
• 0 to +65°C temperature range
• HV Breakdown Test for 1 Minute: 2KVac
• Black thermoplastic body
• Appliance Class - Class I – Cold Condition
• 4.8 mm solder tabs, simple to terminate
• Easy to mount snap-in or screw mount
• Single and multi-way options, 1 to 7 way
• Mate with C14 cable plugs

Applications

The RS PRO C13 appliance outlets are suitable for a wide range of industrial and commercial applications. The electrical panel mount connectors are designed to mate with IEC C14 cable mount male connectors. Some of the more common applications include

• Desktop computers
• Monitors
• Older Laptop power supplies
• Printers
• Audio and Video equipment
• Test equipment

FAQ

Q – Are the IEC appliance outlets easy to connect?
A – Yes, the RS PRO appliance outlets are easy to connect. We offer both snap-in and screw mount outlets with 4.8 mm solder tabs.
Q – Are there any compatible mating mains type IEC 60320 connectors available?
A – Yes, for typical mating parts see associated rewireable plug 776-9113

Connector Types

776-9138 is a 1x C13 snap fit outlet
811-7193 is a 1x C13 eyelet screw mount
896-2133 is a 2 x C13 snap fit outlet
896-2142 is a 3 x C13 snap fit outlet
811-7197 is a 4 x C13 snap fit outlet
896-2145 is a 5 x C13 snap fit outlet

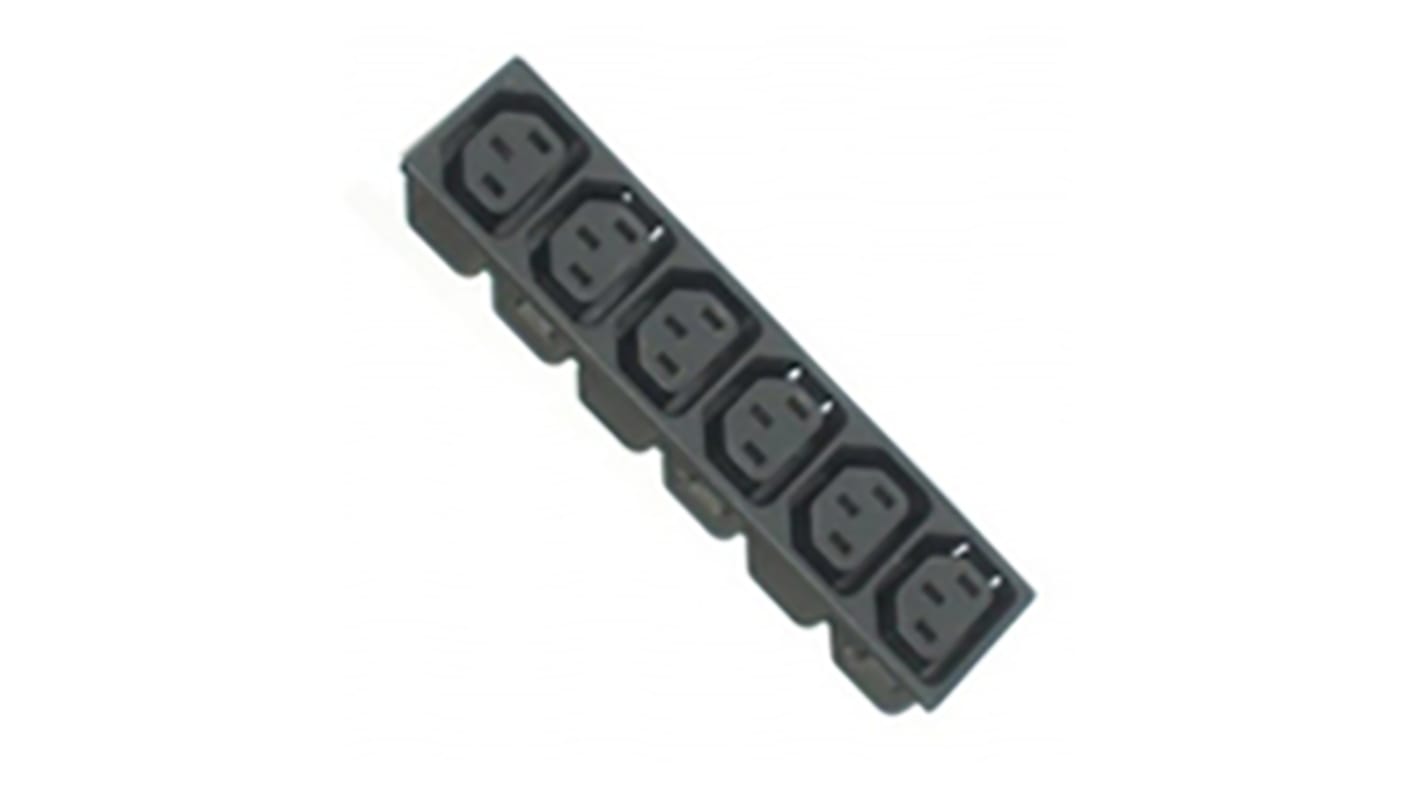

896-2149 is a 6 x C13 snap fit outlet
896-2158 is a 7 x C13 snap fit outlet

Note

For associated connector see 776-9113

Standards

IEC 60320-1

Approvals

UL(C,US), VDE, CE

//media.rs-online.com/t_line/L8962149-01.jpg
Specifications
Attribute Value
Mounting Type Panel Mount, Snap In Mount
Gender Female
Current Rating 20A
Body Orientation Straight
Termination Method Faston
Voltage Rating 250 V ac
Temporarily out of stock - back order for despatch 06/02/2020, delivery within 4 working days from despatch date
Price Each (In a Pack of 5)
MYR 15.178
units
Per unit
Per Pack*
5 - 70
MYR15.178
MYR75.89
75 - 245
MYR14.546
MYR72.73
250 +
MYR13.986
MYR69.93
*price indicative
