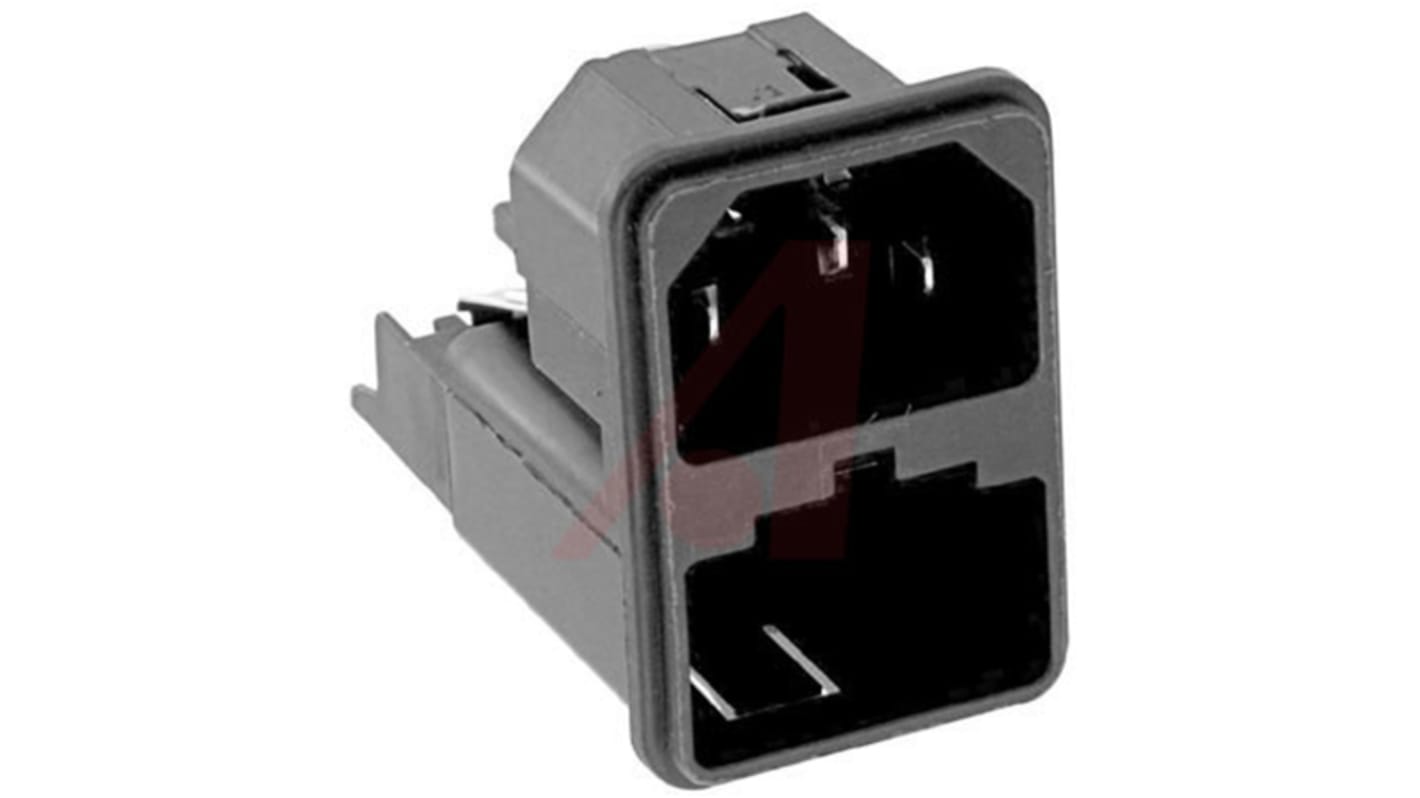

Schurter C14 Snap-In IEC Connector Male, 10 (IEC) A, 13 (UL & CSA) A, 125 V ac, 250 V ac, Fuse Size 6.3 x 32mm

  • RS Stock No. 867-2212
  • Mfr. Part No. 4303.0002
  • Manufacturer Schurter
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CZ
Product Details

Schurter KEC Series Fused Voltage Selectable Inlet (C14)

Schurter KEC series C14 IEC appliance inlets with fuse holder and voltage selector. The KEC series is available as screw-on or snap-in panel mount, with 4.8 x 0.8 mm quick connect terminals. The KEC series features a V-Lock fuse holder that ensures the plug is removed before fuse replacement.

1 or 2 Pole options available
Panel mount
4.8 x 0.8 mm quick connect terminals

Note

Fuse drawer must be ordered separately

Chassis/PCB Plugs - Fused

Note

These fused plugs accept 5 x 20mm fuses

Specifications
Attribute Value
IEC Connector Type C14
Mounting Type Snap-In
Gender Male
Current Rating 10 (IEC) A, 13 (UL & CSA) A
Body Orientation Straight
Termination Method Quick Connect
Switch Type 2 Pole
Number of Fuses 2
Voltage Rating 125 V ac, 250 V ac
Fuse Size 6.3 x 32mm
21 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 50.53
units
Per unit
1 +
MYR50.53
