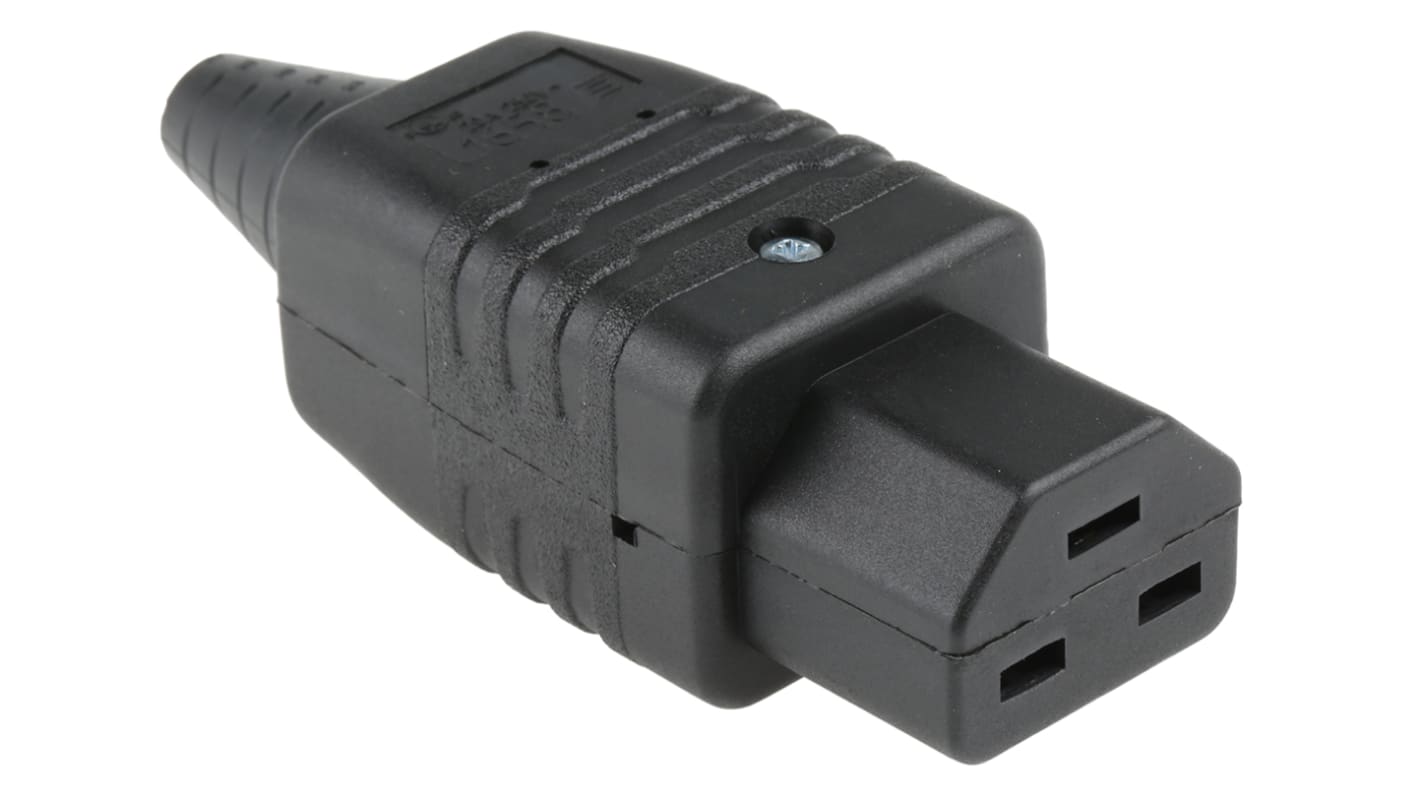

Schurter C21 Cable Mount IEC Connector Socket, 16A, 250 V
- RS Stock No.:
- 866-2637
- Mfr. Part No.:
- 1658.0000
- Manufacturer:
- Schurter
Temporarily out of stock - back order for despatch 24/07/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR57.42
| Units | Per Unit |
| 1 - 12 | MYR57.42 |
| 13 - 24 | MYR56.08 |
| 25 + | MYR54.28 |
- RS Stock No.:
- 866-2637
- Mfr. Part No.:
- 1658.0000
- Manufacturer:
- Schurter
Technical data sheets
Legislation and Compliance
Product Details
Very Hot Condition IEC C21 Rewireable Connectors
C21 rewireable very hot condition connectors, in straight and angled versions with a durable thermoplastic construction for temperatures up to 155 degrees C, protection class 1 (IEC 61140).These RoSH compliant C21 connectors are suitable for cables with a diameter from 6.5mm to 16mm with conductors from 1 to 2.5mm2 (16 to 10 AWG). IEC rating 16A at 250Vac, UL/CSA 20A at 250Vac.
Temperature range -25 to +155° C
Suitable for appliances with protection class 1
Screw terminals
Suitable for appliances with protection class 1
Screw terminals
Approvals
ENEC, UL, CCC
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| IEC Connector Type | C21 |
| Mounting Type | Cable Mount |
| Gender | Female |
| Current Rating | 16 A, 20A |
| Body Orientation | Straight |
| Switch Type | None |
| Voltage Rating | 250 V |
| Rewireable | Yes |
| Maximum Cable Diameter | 16.0mm |
