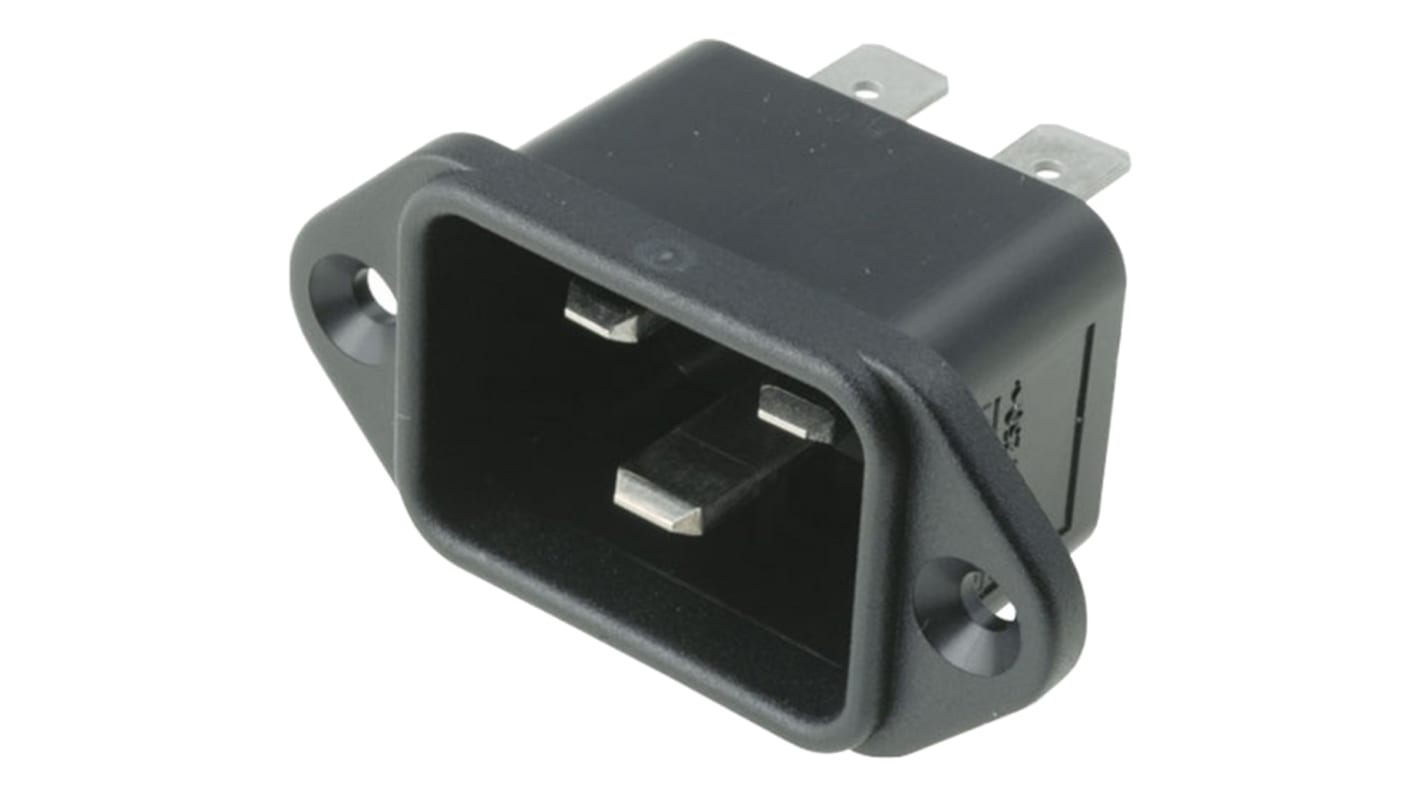

Bulgin C20 Flange Mount IEC Connector Male, 16 (IEC) A, 20 (UL & CSA) A, 250 V ac

  • RS Stock No. 866-0142
  • Mfr. Part No. PX0596/63
  • Manufacturer Bulgin
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TN
Product Details

Bulgin C20/C19 IEC Connectors, Cold Condition

A selection of RoHS compliant cold condition C20 inlets with 6.3mm tabs, in flange mount and snap fit to panel versions and a C19 female cable plug which features screw terminals, wire size maximum 3x2.5mm2 (3x12AWG) and a maximum cable diameter of 12mm. These IEC connectors are of nylon construction, flammability rating UL94V-0, the C19 connector has brass contacts, where-as the C20 inlets feature nickle plated brass contacts.

Maximum rating 16A, 250Vac, 20A, 250Vac UL and CSA
Operating temperature range -40 to +70° C

Approvals

CSA, UL, RU

Specifications
Attribute Value
IEC Connector Type C20
Mounting Type Flange Mount
Gender Male
Current Rating 16 (IEC) A, 20 (UL & CSA) A
Body Orientation Straight
Termination Method Screw
Switch Type 3 Pole
Voltage Rating 250 V ac
Rewireable Yes
542 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 10.55
units
Per unit
1 - 24
MYR10.55
25 - 99
MYR9.93
100 +
MYR9.47
