RS PRO C13 Cable Mount IEC Socket, 10A, 250 V ac

  • RS Stock No. 776-9122
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IN
Product Details

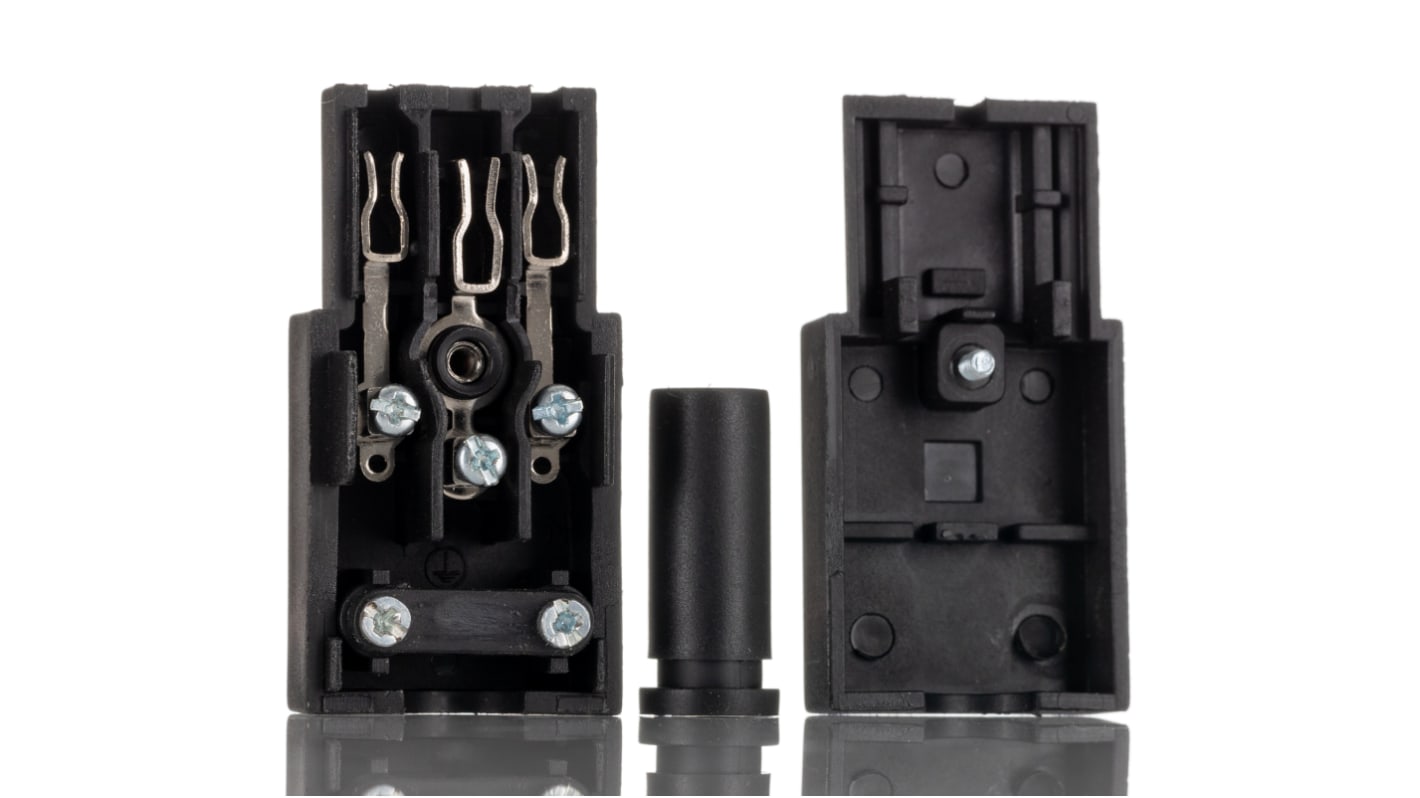

IEC Socket C13, Cable Mount Rewireable Connector

IEC socket C13 variant, cable mount rewireable outlet connector with nylon-6 body and nickel plated copper alloy mating contacts and screw terminals, rated at 10A (VDE) and 15A (UL,CSA), 250Vac. This C13 connector offers a hardwearing durable solution for many applications that require an IEC C13 cable mount socket connector.

Features and Benefits

.

An IEC C13 connector is sometimes referred to as a ’cold’ connector. The C13 socket is a 3 wire two pole connector, neutral, earth and live. The C13 female connectors have a rated current of 10A and a maximum temperature rating of 70°C. This series of connectors conform to a recognised set of specifications called IEC-60320. The regulations are laid down by the IEC (International Electrotechnical Commission). This ensures they meet common global design standards.

Features and Benefits

• HV Breakdown Test for 1 Minute: 2KVac
• Insulation Resistance at 500Vdc 100 MΩ min.
• Permissible Temperature with/without load: 0 to 70 ° C
• Current Rating 10Amps (VDE) 15Amps (UL,CSA), 250Vac
• Contact Resistance 10 mΩ max

Applications

The RS PRO C13 cable connectors are suitable for a wide range of industrial and commercial applications. The electrical connectors are designed to mate with C14 appliance inlets or C14 plugs. Some of the more common applications include;

• Desktop computers
• Monitors
• Older Laptop power supplies
• Printers
• Audio and Video equipment
• Test equipment
• Power supplies
• Commercial appliances

FAQ

Q - Are the C13 mains type connectors easy to connect?
A - Yes, the RS PRO C13 rewirable connectors have screw terminals. They are very easy to assemble.
Q - Are there any compatible mating IEC 60320 connectors available?
A –Yes, for typical mating parts see associated connectors,
776-9113 - IEC C14 male connector, cable mount
776-9131 - IEC C14 male connector, snap-in panel mount

Note

For associated connectors see 776-9113 , 776-9131

Standards

UL(C, US), VDE, CE

Specifications
Attribute Value
IEC Connector Type C13
Mounting Type Cable Mount
Gender Female
Current Rating 10A
Body Orientation Straight
Termination Method Screw
Switch Type None
Number of Fuses None
Voltage Rating 250 V ac
Rewireable Yes
4616 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 12.67
units
Per unit
1 +
MYR12.67
