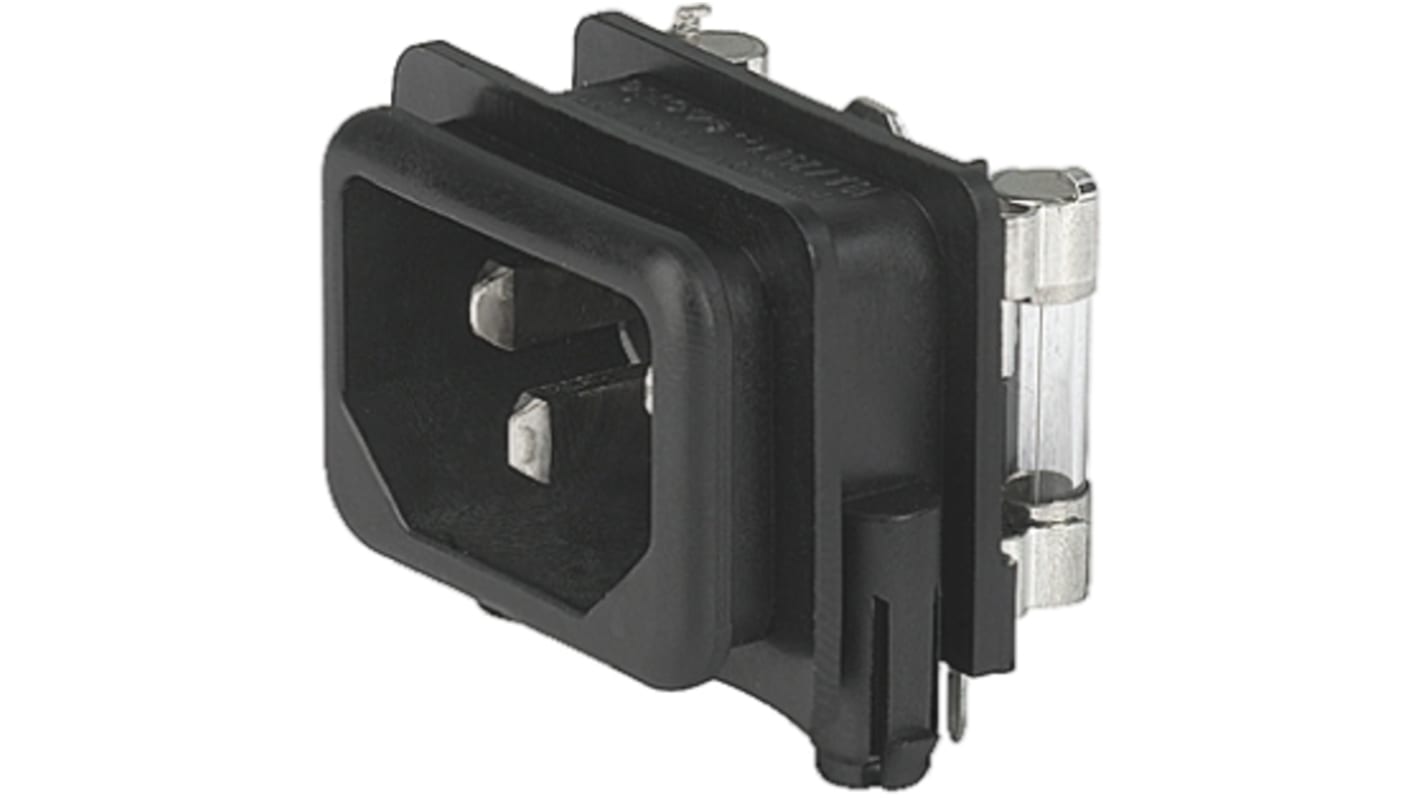

Schurter C14 Right Angle Panel Mount IEC Plug Male, 10A, 250 V ac, Fuse Size 5 x 20mm

  • RS Stock No. 730-0455
  • Mfr. Part No. GSF1.2002.31
  • Manufacturer Schurter
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CZ
Product Details

10A Screw Mount 90° IEC Fused Inlet (C14)

Panel mount IEC appliance inlets with a screw mount in a right angle style that are suitable for automatic PCB assembling. Maximum pin temperature 70°C. The fuseholder on the inside of the equipment prevents accidental use of incorrect fuse-links by the user.

Black thermoplastic housing
2 pole 5x20mm fuseholder
Panel thickness 1.5mm
Qualified for use in equipment according to IEC/EN 60950

Chassis/PCB Plugs - Fused

Note

These fused plugs accept 5 x 20mm fuses

Specifications
Attribute Value
IEC Connector Type C14
Mounting Type Panel Mount
Gender Male
Current Rating 10A
Body Orientation Right Angle
Termination Method Screw Down
Switch Type None
Number of Fuses 2
Voltage Rating 250 V ac
Fuse Size 5 x 20mm
135 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 23.38
units
Per unit
1 +
MYR23.38
