Schurter C20 Cable Mount IEC Connector Male, 16.0A, 250 V ac

  • RS Stock No. 295-8771
  • Mfr. Part No. 4796.0000
  • Manufacturer Schurter
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CZ
Product Details
//media.rs-online.com/t_line/L449281-01.gif

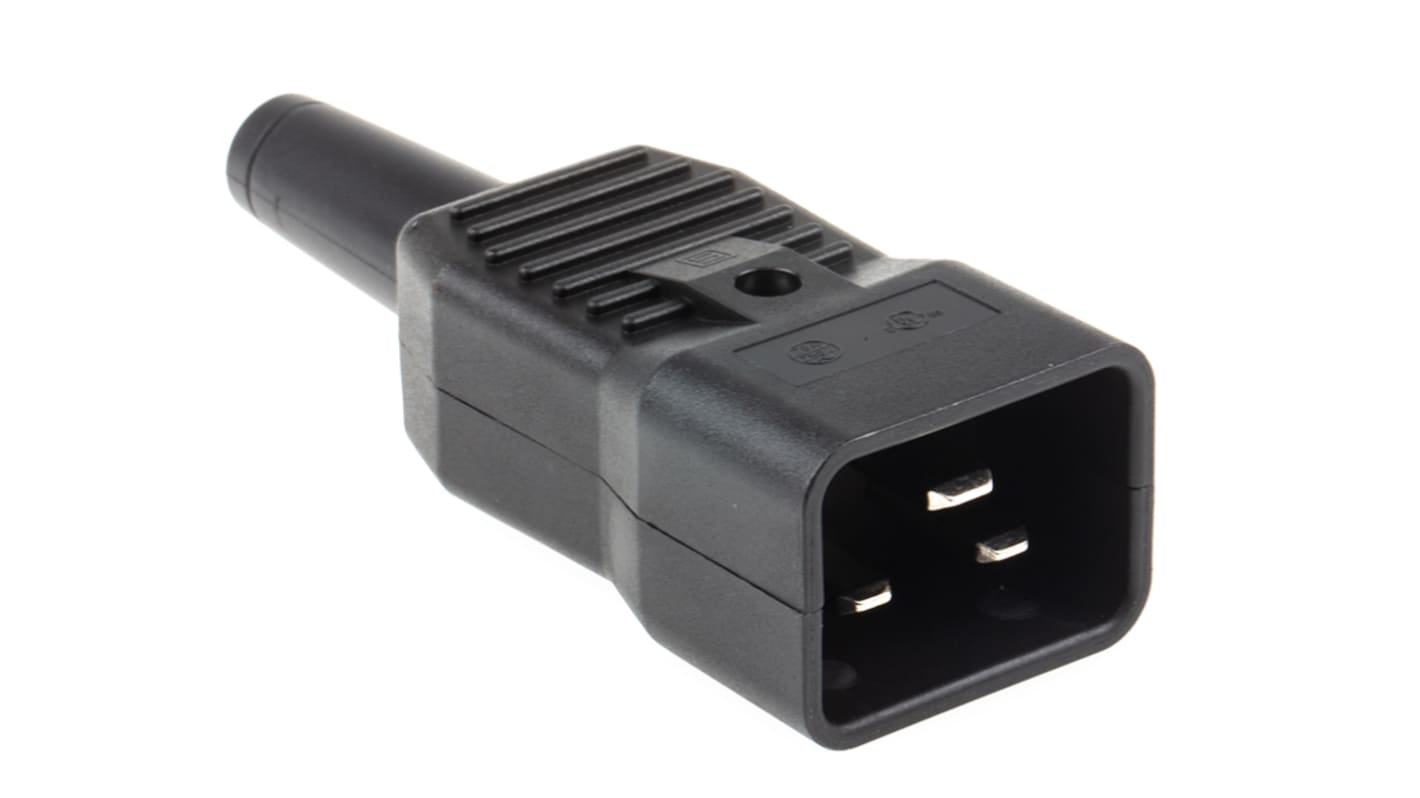

Schurter IEC Plug

The Schurter IEC plug is a straight C20 male connector and a cable mount device. It is compatible with the C19 mating socket. It has a voltage rating of 250VAC and current rating of 16A. Its body is made from thermoplastic.

Features and Benefits

Rewirable
Screw terminals
Contact resistance is less than 10mΩ
Insulation resistance is greater than 10⁴MΩ
Operating temperature ranges between -25°C and 75°C

Applications

Cooking equipment
Workstations
CAD/CAM systems
Medical equipment
Industrial appliances

Certifications

UL approved
CSA certified
VDE

Specifications
Attribute Value
IEC Connector Type C20
Mounting Type Cable Mount
Gender Male
Current Rating 16.0A
Body Orientation Straight
Voltage Rating 250 V ac
186 Within 2 working day(s)
445 Within 4 working day(s) (Global stock)
Price Each
Was MYR47.11
MYR 46.17
units
Per unit
1 - 9
MYR46.17
10 - 24
MYR43.87
25 +
MYR41.67
