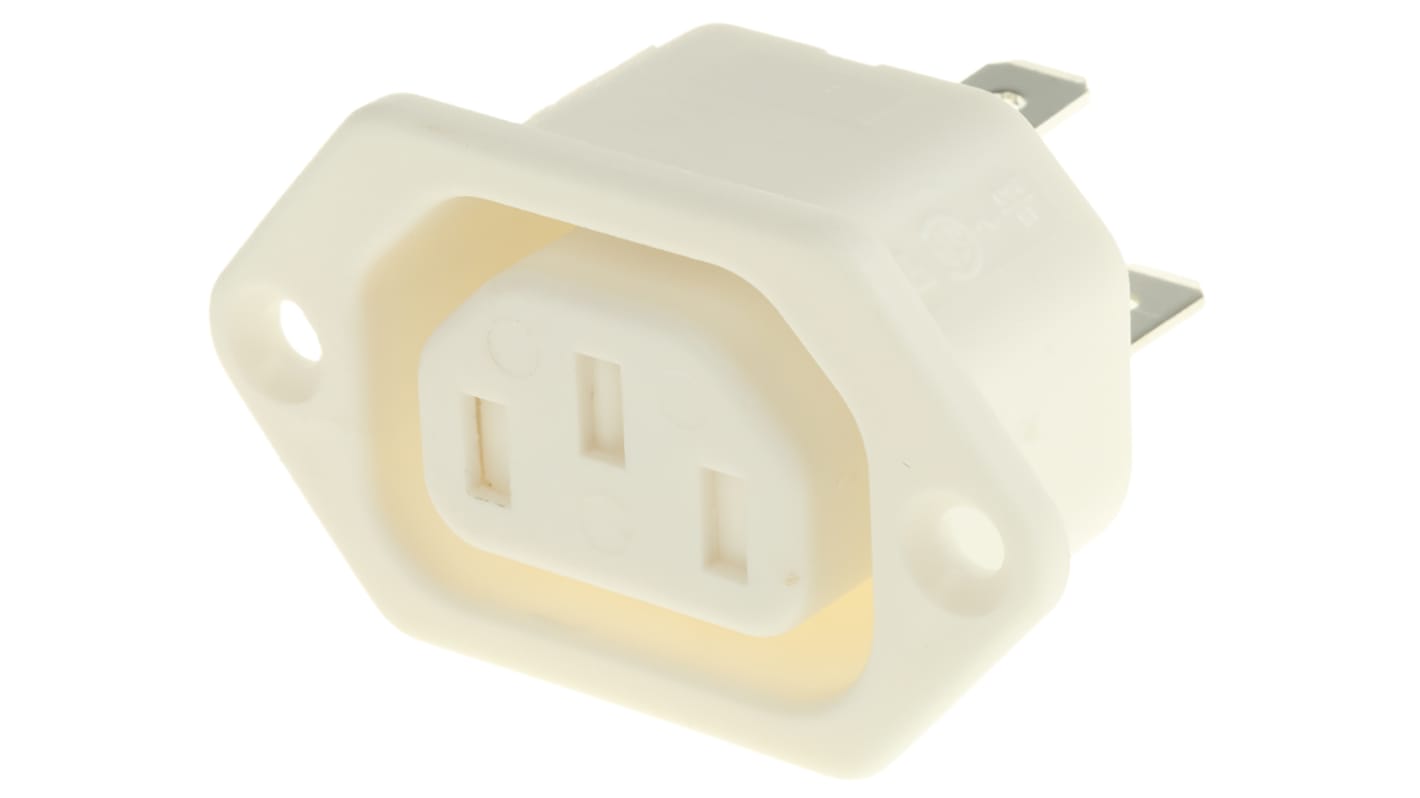

Bulgin C13 Panel Mount IEC Socket, 10A, 250 V ac

  • RS Stock No. 295-8709
  • Mfr. Part No. PX0793/63/WH
  • Manufacturer Bulgin
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TN
Product Details

10A Flange Fixing IEC320 Socket (C13)

Standard and shuttered sockets
250Vac/ 10A rated
Flammability rating UL94V-0
Use insulating boot stock no. 211-0907
For connector retaining clamp see 195-928.

Technical Specifications
Contact type: 2-way + ground contact
Contact load: 10 A, 250 V∼
Switch material: Brass, nickel-plated
Terminals Brass, Tin Plated
Contact Resistance ≤ 10 mΩ
Insulation resistance: > 10 3 MΩ
Casing material: Nylon, self-extinguishing according to UL 94 V-O
Code letters
A
65°C
B
65°C
C
65°C
D
65°C
E
120°C
F
155°C
G
155°C

Note

All of these plugs and sockets have a contact resistance of <10mΩ, and an insulation resistance of >103MΩ. Their operating temperature is -40°C to +70°C

//media.rs-online.com/t_line/L449310-01.gif

Approvals

UL listed; CSA certified; IMQ; VDE

Specifications
Attribute Value
IEC Connector Type C13
Mounting Type Panel Mount
Gender Female
Current Rating 10A
Body Orientation Straight
Termination Method Solder
Voltage Rating 250 V ac
192 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 11.88
units
Per unit
1 - 24
MYR11.88
25 - 99
MYR11.46
100 - 249
MYR11.21
250 +
MYR10.82
