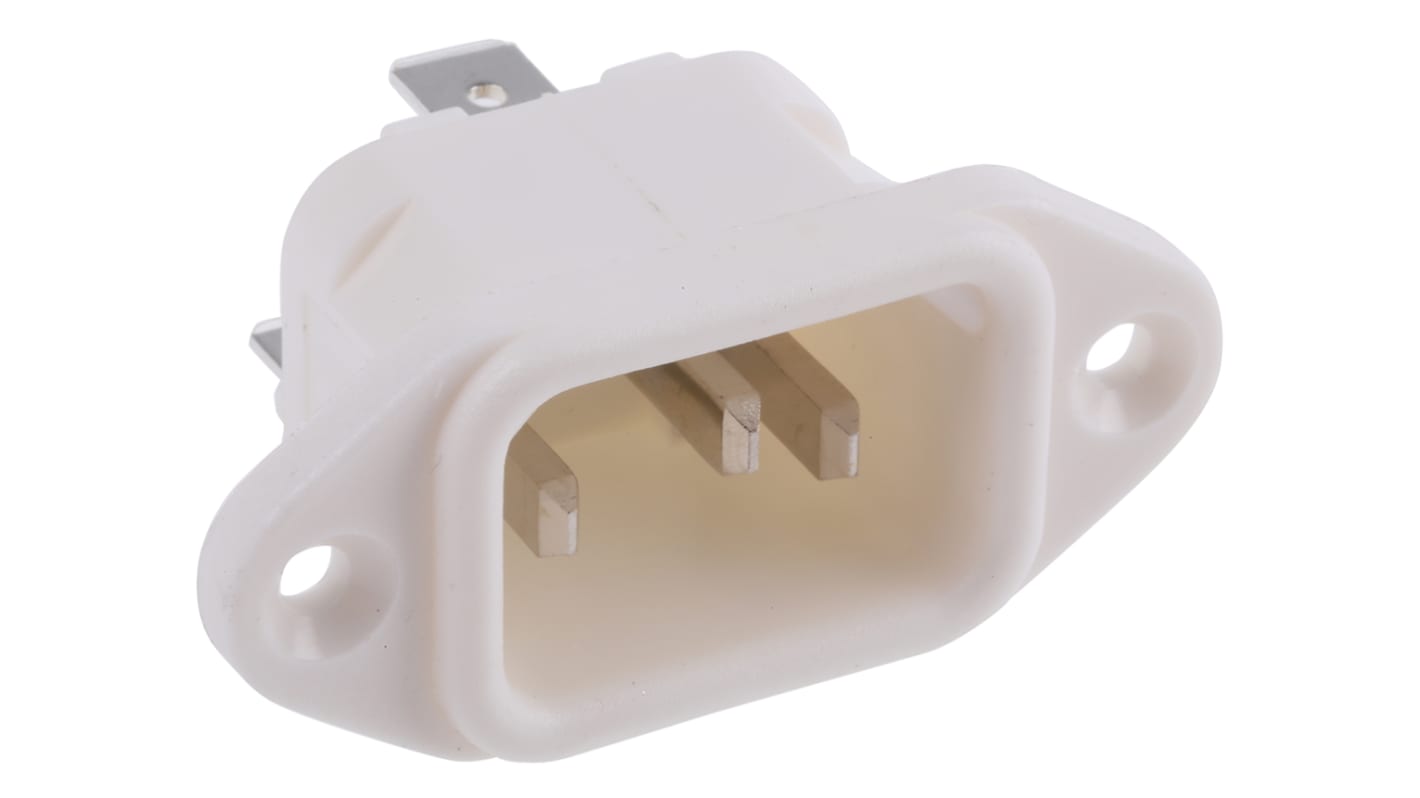

Bulgin C14 Panel Mount IEC Connector Male, 10A, 250 V
- RS Stock No.:
- 295-8658
- Mfr. Part No.:
- PX0580/63/WH
- Manufacturer:
- Bulgin
136 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR10.74
| Units | Per Unit |
| 1 - 49 | MYR10.74 |
| 50 + | MYR10.35 |
- RS Stock No.:
- 295-8658
- Mfr. Part No.:
- PX0580/63/WH
- Manufacturer:
- Bulgin
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TN
Product Details
10A Flange Fixing Standard (C14)
250Vac/10A rated, type 250 ( 0.25 in) blade receptacles
Use insulating boot stock no.211-0913
Choice of 6.3mm 195-912 or 2.8mm 801-954 push -on receptacles for black version
For plug to socket retaining clamp use stock no.195-928
Depth 33mm, fixing hole diameter 3.5mm
Front fixing dimensions 27.4 x 19.8 mm, rear fixing dimensions 40 x 22.7 mm
Use insulating boot stock no.211-0913
Choice of 6.3mm 195-912 or 2.8mm 801-954 push -on receptacles for black version
For plug to socket retaining clamp use stock no.195-928
Depth 33mm, fixing hole diameter 3.5mm
Front fixing dimensions 27.4 x 19.8 mm, rear fixing dimensions 40 x 22.7 mm
Note
All of these plugs and sockets have a contact resistance of <10mΩ, and an insulation resistance of >103MΩ. Their operating temperature is -40°C to +70°C
Approvals
UL recognised component, CSA Certified, BSI, IMQ, SEMKO, VDE
Approvals
UL recognised component, CSA Certified, BSI, IMQ, SEMKO, VDE
Specifications
Attribute | Value |
|---|---|
| IEC Connector Type | C14 |
| Mounting Type | Panel Mount |
| Gender | Male |
| Current Rating | 10A |
| Body Orientation | Straight |
| Standards Met | BSI, CSA certified, IMQ, SEMKO, UL recognised, VDE |
| Termination Method | Quick Connect |
| Switch Type | None |
| Number of Fuses | None |
| Voltage Rating | 250 V ac |
| Shuttered | No |
