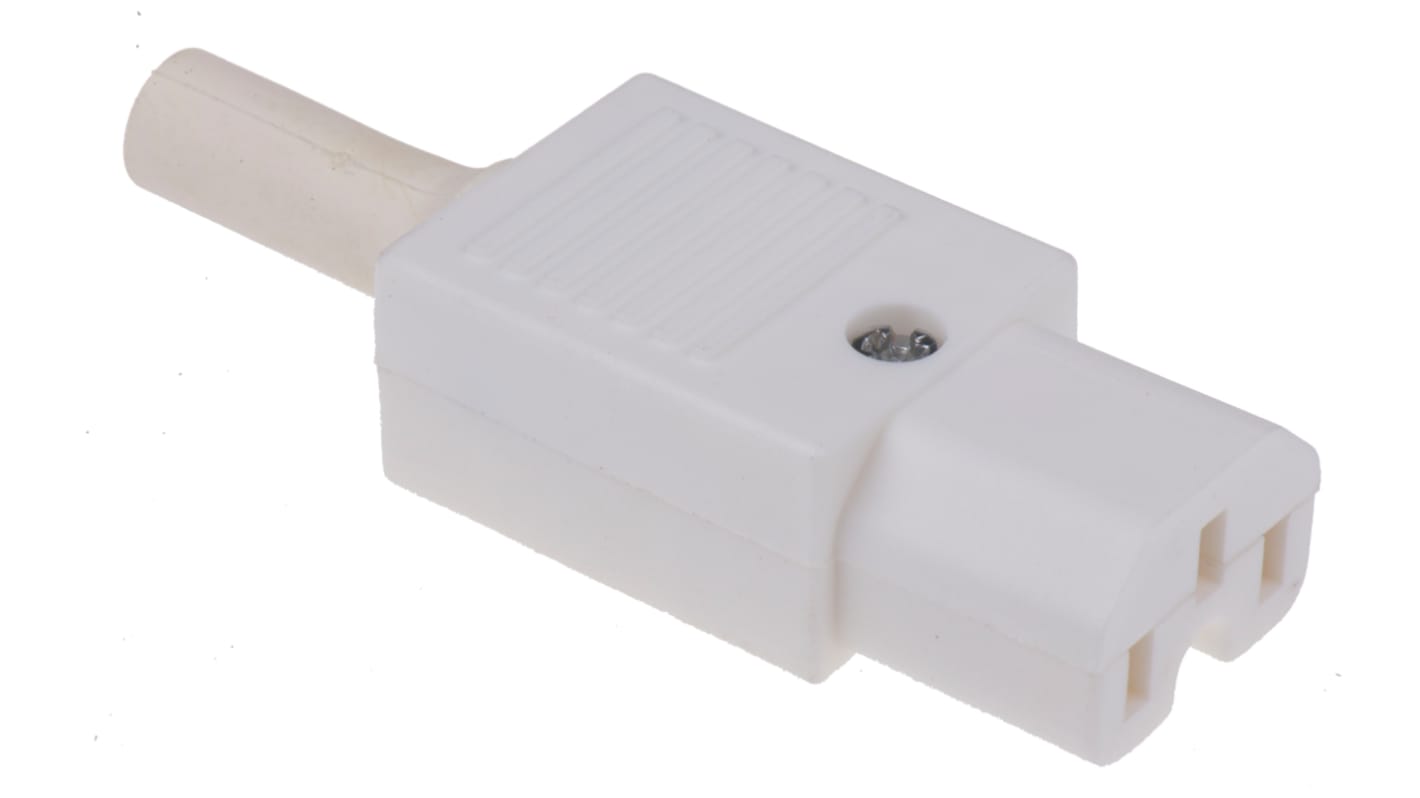

Bulgin C15 Cable Mount IEC Connector Socket, 10A, 250 V
- RS Stock No.:
- 295-8642
- Mfr. Part No.:
- PX0597/WH
- Manufacturer:
- Bulgin
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
14 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR26.17
| Units | Per Unit |
| 1 - 24 | MYR26.17 |
| 25 - 99 | MYR25.30 |
| 100 - 249 | MYR24.46 |
| 250 + | MYR23.83 |
- RS Stock No.:
- 295-8642
- Mfr. Part No.:
- PX0597/WH
- Manufacturer:
- Bulgin
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TN
Product Details
10A Flanged Panel Mounting Plug (C16) & Rewireable Free Socket (C15)
Manufactured in nylon, UL94V-0 rated
Panel plug connection by 6.3mm (0.25in) receptacles
Cable dia. to fit boot: 7.6mm max.
Dimensions (mm) Depth 33, Hole dia 3.5, FC 40
Cut out: 27.4x19.8mm radius 5
Panel plug connection by 6.3mm (0.25in) receptacles
Cable dia. to fit boot: 7.6mm max.
Dimensions (mm) Depth 33, Hole dia 3.5, FC 40
Cut out: 27.4x19.8mm radius 5
Note
Hot condition chassis plugs will not mate with standard IEC free sockets.
Approvals
UL recognised component, CSA certified, BSI, IMQ, SEMKO, VDE
Approvals
UL recognised component, CSA certified, BSI, IMQ, SEMKO, VDE
Specifications
Attribute | Value |
|---|---|
| IEC Connector Type | C15 |
| Mounting Type | Cable Mount |
| Gender | Female |
| Current Rating | 10A |
| Body Orientation | Straight |
| Standards Met | BSI, CSA certified, IMQ, SEMKO, UL recognised, VDE |
| Termination Method | Screw |
| Number of Fuses | None |
| Voltage Rating | 250 V ac |
| Shuttered | No |
