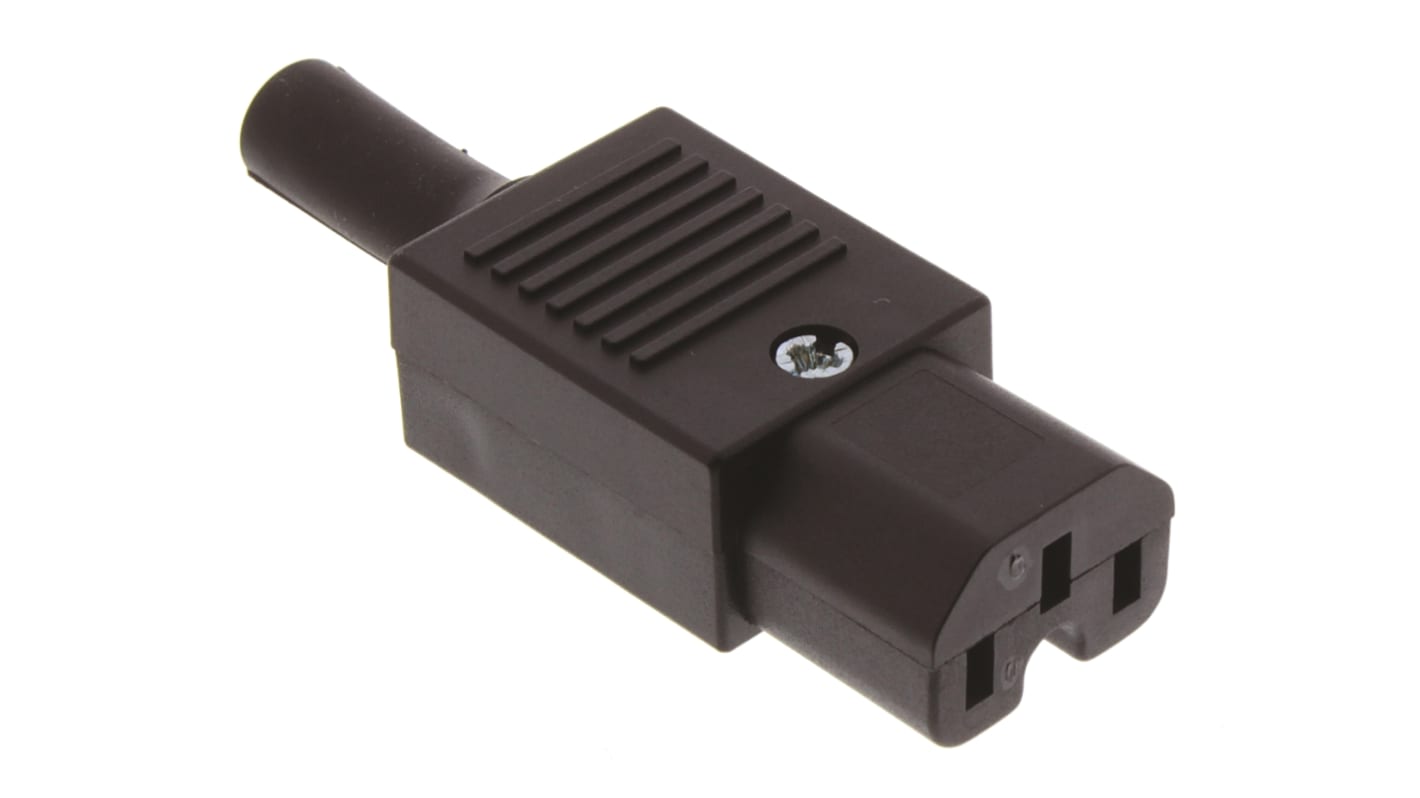

Bulgin C15 Cable Mount IEC Socket, 10A, 250 V ac

  • RS Stock No. 211-4224
  • Mfr. Part No. PX0597
  • Manufacturer Bulgin
Bulgin
Technical data sheets
PX0597 Datasheet
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TN
Product Details

10A Flanged Panel Mounting Plug (C16) & Rewireable Free Socket (C15)

Manufactured in nylon, UL94V-0 rated
Panel plug connection by 6.3mm (0.25in) receptacles
Cable dia. to fit boot: 7.6mm max.
Dimensions (mm) Depth 33, Hole dia 3.5, FC 40
Cut out: 27.4x19.8mm radius 5

Note

Hot condition chassis plugs will not mate with standard IEC free sockets.

Approvals

UL recognised component, CSA certified, BSI, IMQ, SEMKO, VDE

Approvals

UL recognised component, CSA certified, BSI, IMQ, SEMKO, VDE

Specifications
Attribute Value
IEC Connector Type C15
Mounting Type Cable Mount
Gender Female
Current Rating 10A
Body Orientation Straight
Termination Method Screw Down
Voltage Rating 250 V ac
3461 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 23.07
units
Per unit
1 - 9
MYR23.07
10 - 49
MYR22.87
50 - 99
MYR22.45
100 +
MYR19.38
