Bulgin C14 Snap-In IEC Connector Male, 10A, 250 V ac, Fuse Size 5 x 20mm

  • RS Stock No. 211-1001
  • Mfr. Part No. BZH01/Z0000/11
  • Manufacturer Bulgin
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TN
Product Details

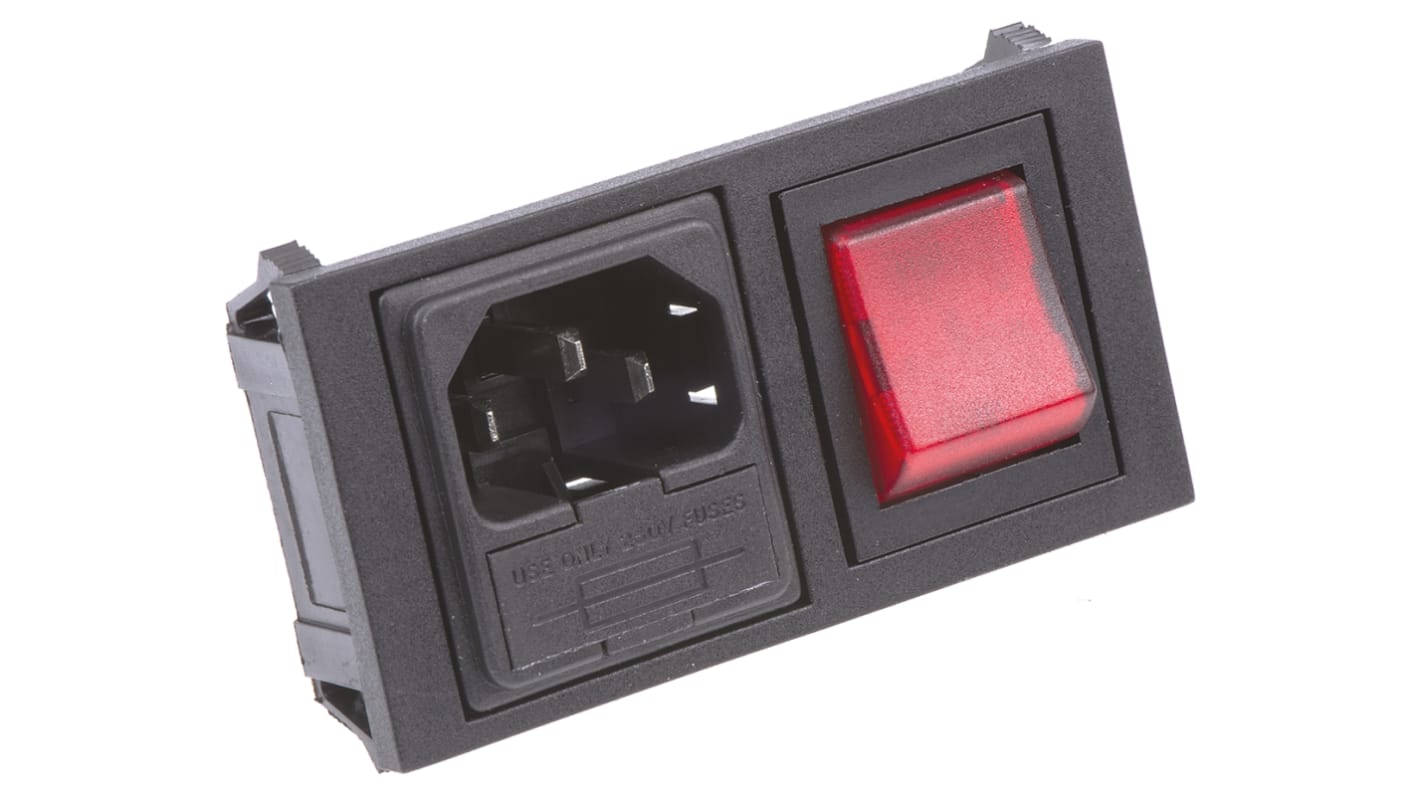

Bulgin IEC Fused Inlet

The Bulgin IEC fused inlet is a straight, male C14 connector and horizontal snap-in panel mount plug device. It has switched inlets with a double-pole red neon switch. It has a power supply voltage rating of 250VAC and current rating of 10A.

Note:
These chassis plugs accept 5mm x 20mm fuses.

Features and Benefits

Fused inlet with 6.3mm tags
Tab terminals
Non-filtered inlet option
Options of I/O marked switches

Applications

Domestic appliances
Electrical appliances
Instrumentation amplifiers
Computer hard drives

Certifications

UL approved
CSA certified
IMQ
SEMKO
SEV
VDE

Approvals

UL recognised component; CSA certified; IMQ; SEMKO; SEV; VDE

Specifications
Attribute Value
IEC Connector Type C14
Mounting Type Snap-In
Gender Male
Current Rating 10A
Body Orientation Straight
Termination Method Quick Connect
Switch Type 2 Pole
Number of Fuses 1
Voltage Rating 250 V ac
Fuse Size 5 x 20mm
Shuttered No
1365 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR53.82
MYR 36.39
units
Per unit
1 - 24
MYR36.39
25 - 99
MYR35.23
100 - 249
MYR34.33
250 +
MYR33.10
