- RS Stock No.:
- 173-8096
- Mfr. Part No.:
- 1658.0000
- Manufacturer:
- Schurter
- RS Stock No.:
- 173-8096
- Mfr. Part No.:
- 1658.0000
- Manufacturer:
- Schurter
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

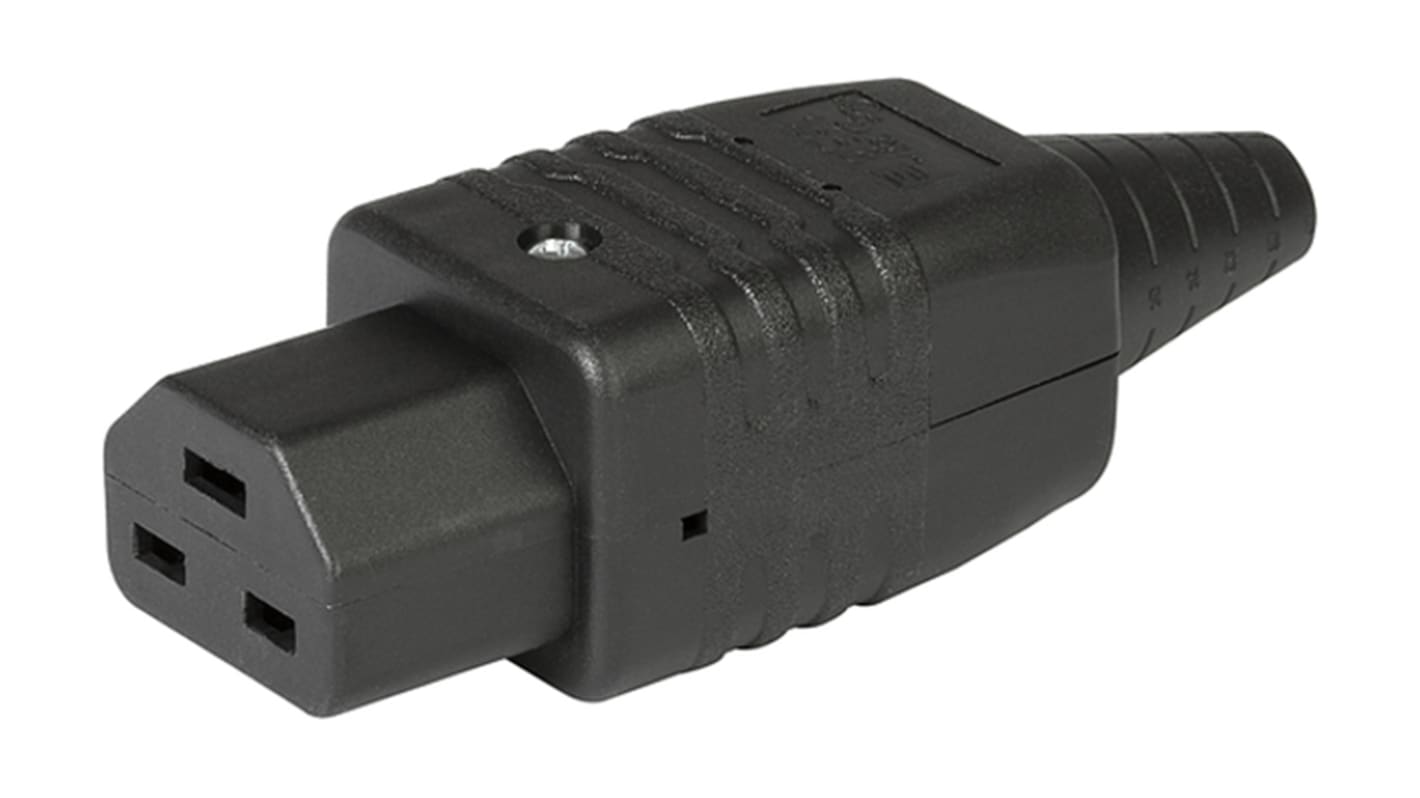

Very Hot Condition IEC C21 Rewireable Connectors
C21 rewireable very hot condition connectors, in straight and angled versions with a durable thermoplastic construction for temperatures up to 155 degrees C, protection class 1 (IEC 61140).These RoSH compliant C21 connectors are suitable for cables with a diameter from 6.5mm to 16mm with conductors from 1 to 2.5mm2 (16 to 10 AWG). IEC rating 16A at 250Vac, UL/CSA 20A at 250Vac.
Temperature range -25 to +155° C
Suitable for appliances with protection class 1
Screw terminals
Suitable for appliances with protection class 1
Screw terminals
Approvals
ENEC, UL, CCC
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
IEC Connector Type | C21 |
Mounting Type | Cable Mount |
Gender | Female |
Current Rating | 16 A, 20A |
Body Orientation | Straight |
Switch Type | None |
Voltage Rating | 250 V |
Rewireable | Yes |
Maximum Cable Diameter | 16.0mm |
