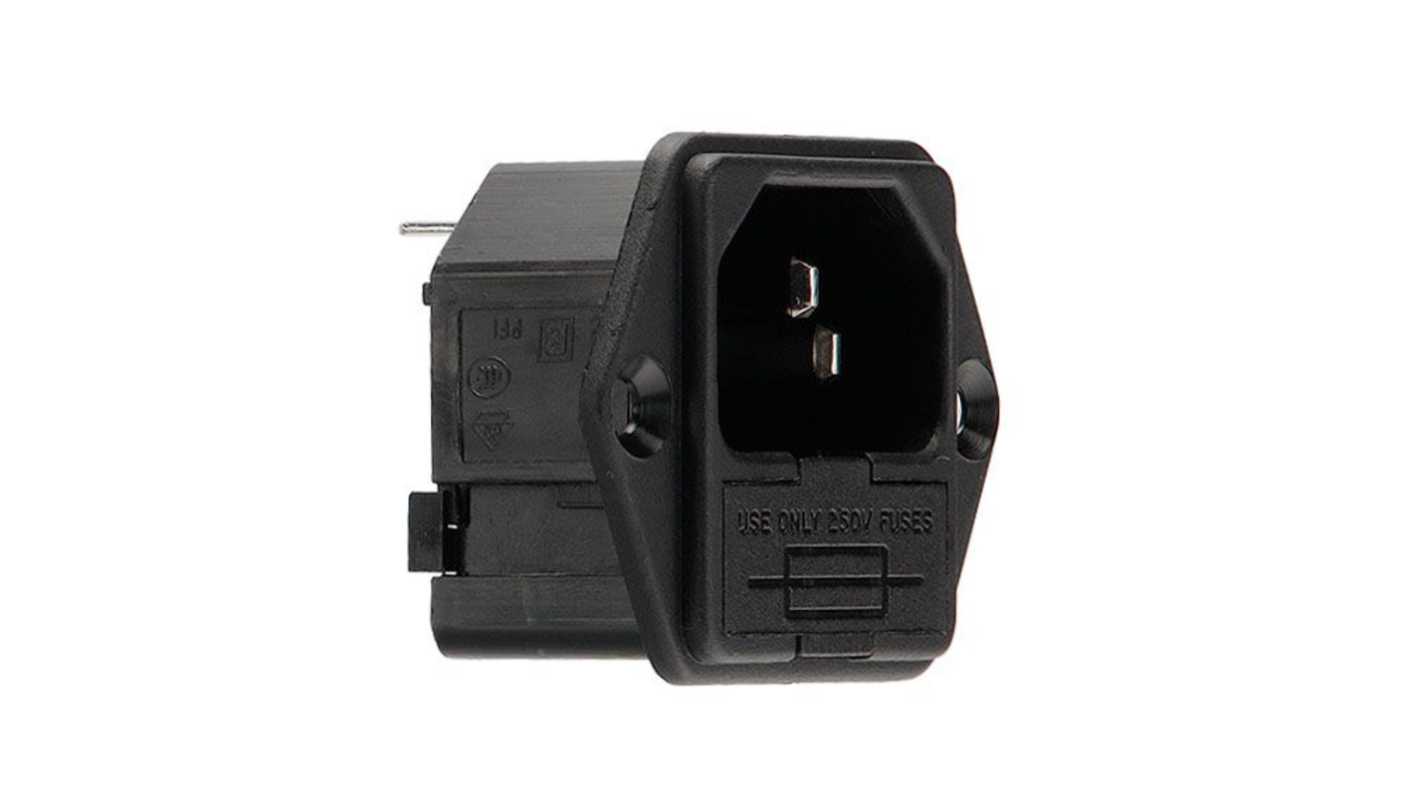

Bulgin C14 Panel Mount IEC Plug Male, 10A, 250 V ac

  • RS Stock No. 815-830
  • Mfr. Part No. PF0001/63
  • Manufacturer Bulgin
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TN
Product Details

10A Flange Fixing Fused IEC 320 Plug (C14)

Interlocked fuse drawer accepts 20mm fuses
Fuse link electrically connected wire direct to plug using type 250 (0.25in) blade receptacles
250Vac/ 10A rated, BS4491 compliant
Flammability Rating UL94 V-0
Use insulating boot stock no. 801-932

Approvals

UL recognised component, CSA certified, IMQ, SEMKO, VDE

//media.rs-online.com/t_line/L815824-01.gif

Approvals

UL recognised component, CSA certified, IMQ, SEMKO, VDE

Chassis/PCB Plugs - Fused

Note

These fused plugs accept 5 x 20mm fuses

Warning

  • Neutral line must not be fused where it is referenced to earth.
Specifications
Attribute Value
IEC Connector Type C14
Mounting Type Panel Mount
Gender Male
Current Rating 10A
Body Orientation Straight
Termination Method Tab
Voltage Rating 250 V ac
5061 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 18.54
units
Per unit
1 - 24
MYR18.54
25 - 99
MYR17.73
100 - 249
MYR16.21
250 +
MYR15.87
