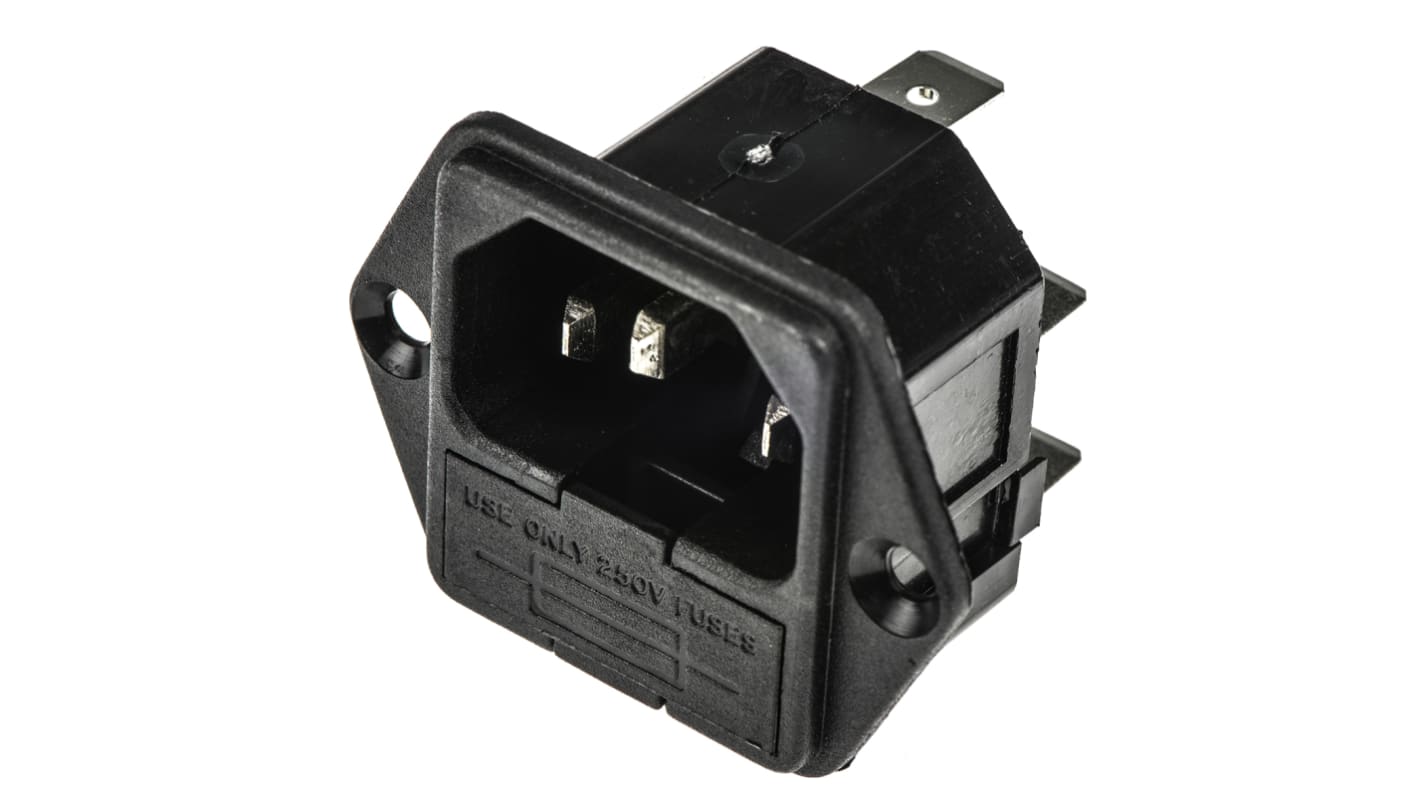

Bulgin C14 Panel Mount IEC Plug Male, 10A, 250 V ac

  • RS Stock No. 489-122
  • Mfr. Part No. PF0002/63
  • Manufacturer Bulgin
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TN
Product Details

10A Flange, Fused Separately IEC 320 Plug (C14)

Fused IEC inlet connector accepting 20mm fuses
Fuse link is electrically separate to connector
Connection via 0.25 push on tags
Fuse carrier is interlocked and cannot be removed
Storage for one spare fuse
Rated at 240Vac/10A
Depth 35mm
Suitable hole cutter stock no. 542-302
Use insulating boot stock no. 801-932

Approvals

UL recognised, CSA certified VDE, IMQ, SEMKO

//media.rs-online.com/t_line/L815824-01.gif

Approvals

UL recognised, CSA certified VDE, IMQ, SEMKO

Chassis/PCB Plugs - Fused

Note

These fused plugs accept 5 x 20mm fuses

Warning

  • Neutral line must not be fused where it is referenced to earth.
Specifications
Attribute Value
IEC Connector Type C14
Mounting Type Panel Mount
Gender Male
Current Rating 10A
Body Orientation Straight
Termination Method Solder
Voltage Rating 250 V ac
867 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 14.89
units
Per unit
1 - 24
MYR14.89
25 - 99
MYR14.34
100 - 249
MYR14.05
250 +
MYR13.61
