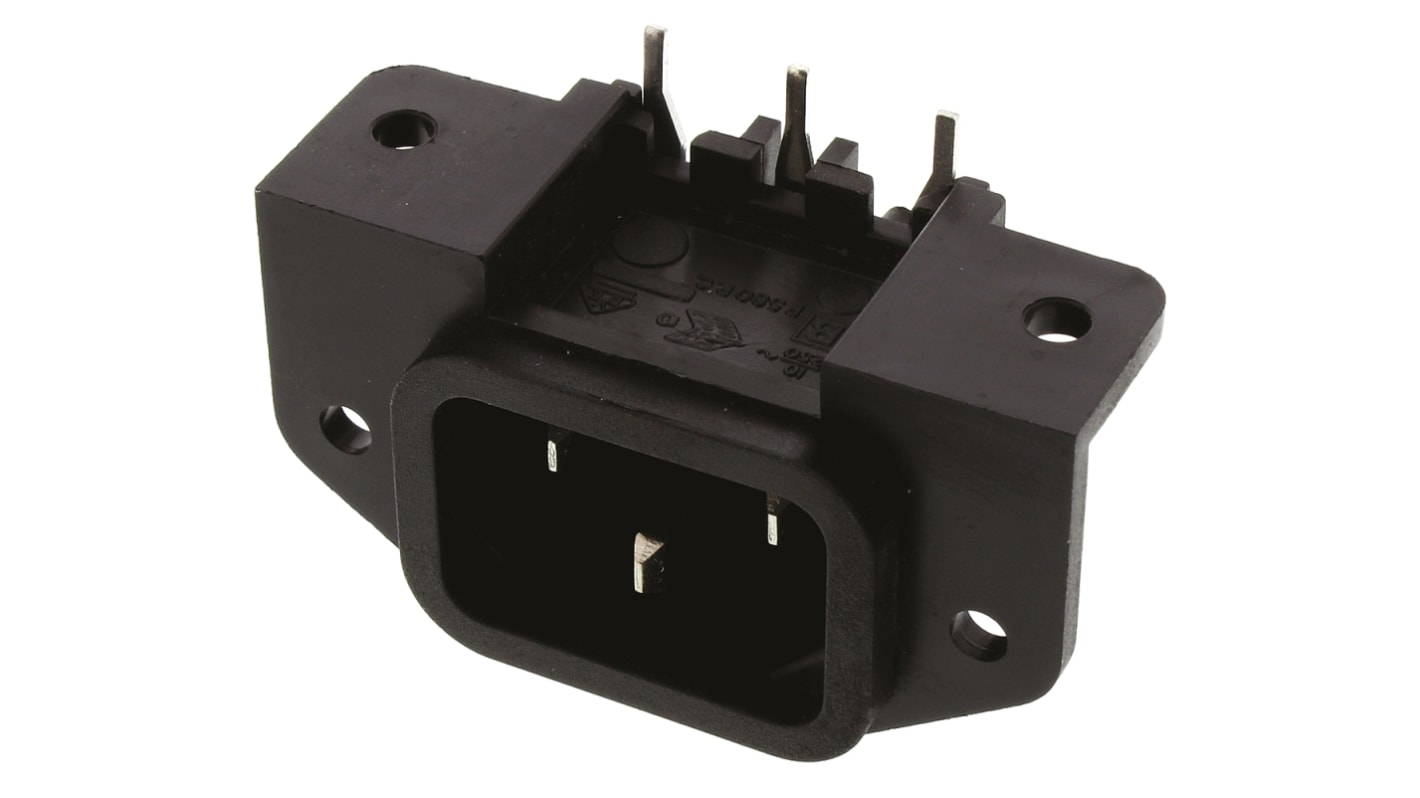

Bulgin C14 Right Angle Through Hole IEC Plug Male, 10A, 250 V ac

  • RS Stock No. 487-261
  • Mfr. Part No. PX0580/PC
  • Manufacturer Bulgin
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): TN
Product Details

10A PCB Mounting IEC 320 Plug (C14)

PCB mounting (screw or rivet) suitable for flow wave soldering
240Vac/10A rated, compliant to BS 4491
Flammability rating UL94V-0
Kite mark licence no 6745
Version with pin cover also available (stock no. 261-5840)

Note

All of these plugs and sockets have a contact resistance of <10mΩ, and an insulation resistance of >103MΩ. Their operating temperature is -40°C to +70°C

Approvals

UL recognised component, CSA Certified, BSI, IMQ, VDE, SEMKO

//media.rs-online.com/t_line/L487261-02.gif
//media.rs-online.com/t_line/LD487261-02.gif
//media.rs-online.com/t_line/LE487261-12.gif

Approvals

UL recognised component, CSA Certified, BSI, IMQ, VDE, SEMKO

Specifications
Attribute Value
IEC Connector Type C14
Mounting Type Through Hole
Gender Male
Current Rating 10A
Body Orientation Right Angle
Termination Method Solder
Voltage Rating 250 V ac
220 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 5)
MYR 6.504
units
Per unit
Per Pack*
5 - 120
MYR6.504
MYR32.52
125 - 495
MYR5.854
MYR29.27
500 - 1245
MYR5.526
MYR27.63
1250 +
MYR4.878
MYR24.39
*price indicative
