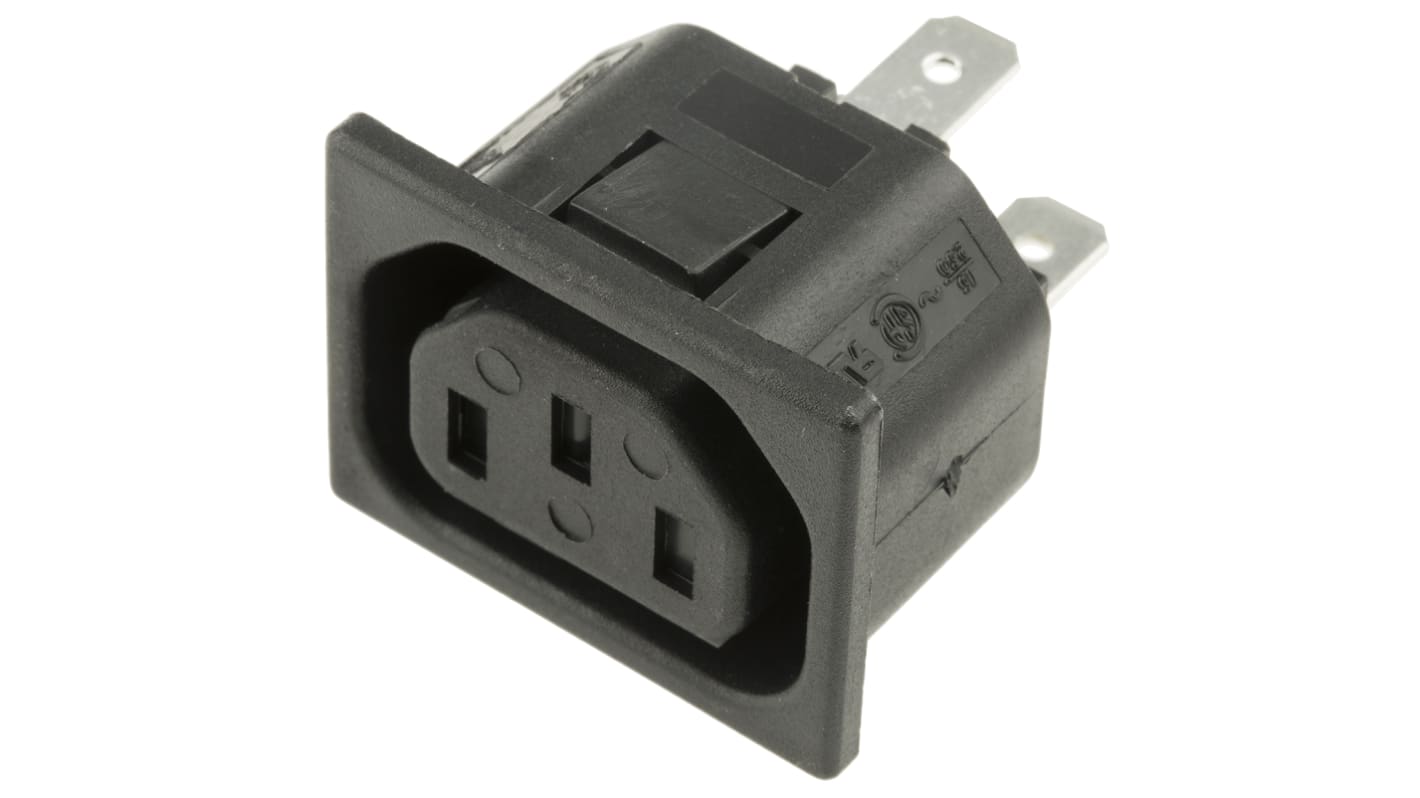

Bulgin C13 Snap-In IEC Connector Socket, 10A, 250 V
- RS Stock No.:
- 110-955
- Mfr. Part No.:
- PX0783/15/63
- Manufacturer:
- Bulgin
Stock check temporarily unavailable - call for stock availability
Added
Price Each
MYR24.14
| Units | Per Unit |
| 1 - 24 | MYR24.14 |
| 25 - 99 | MYR23.28 |
| 100 - 249 | MYR22.51 |
| 250 + | MYR21.98 |
- RS Stock No.:
- 110-955
- Mfr. Part No.:
- PX0783/15/63
- Manufacturer:
- Bulgin
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TN
Product Details
Snap In IEC 320 Socket (C13)
Panel thickness 1.5mm
250Vac/ 10A rated, type 250 (0.25mm) blade receptacles
Depth 32.5mm
For suitable insulating boot see stock no.211-0907
250Vac/ 10A rated, type 250 (0.25mm) blade receptacles
Depth 32.5mm
For suitable insulating boot see stock no.211-0907
Note
All of these plugs and sockets have a contact resistance of <10mΩ, and an insulation resistance of >103MΩ. Their operating temperature is -40°C to +70°C
Approvals
UL recognised component, CSA Certified, IMQ, VDE
Specifications
Attribute | Value |
|---|---|
| IEC Connector Type | C13 |
| Mounting Type | Snap-In |
| Gender | Female |
| Current Rating | 10A |
| Body Orientation | Straight |
| Termination Method | Quick Connect |
| Number of Fuses | None |
| Voltage Rating | 250 V ac |
| Shuttered | Yes |
