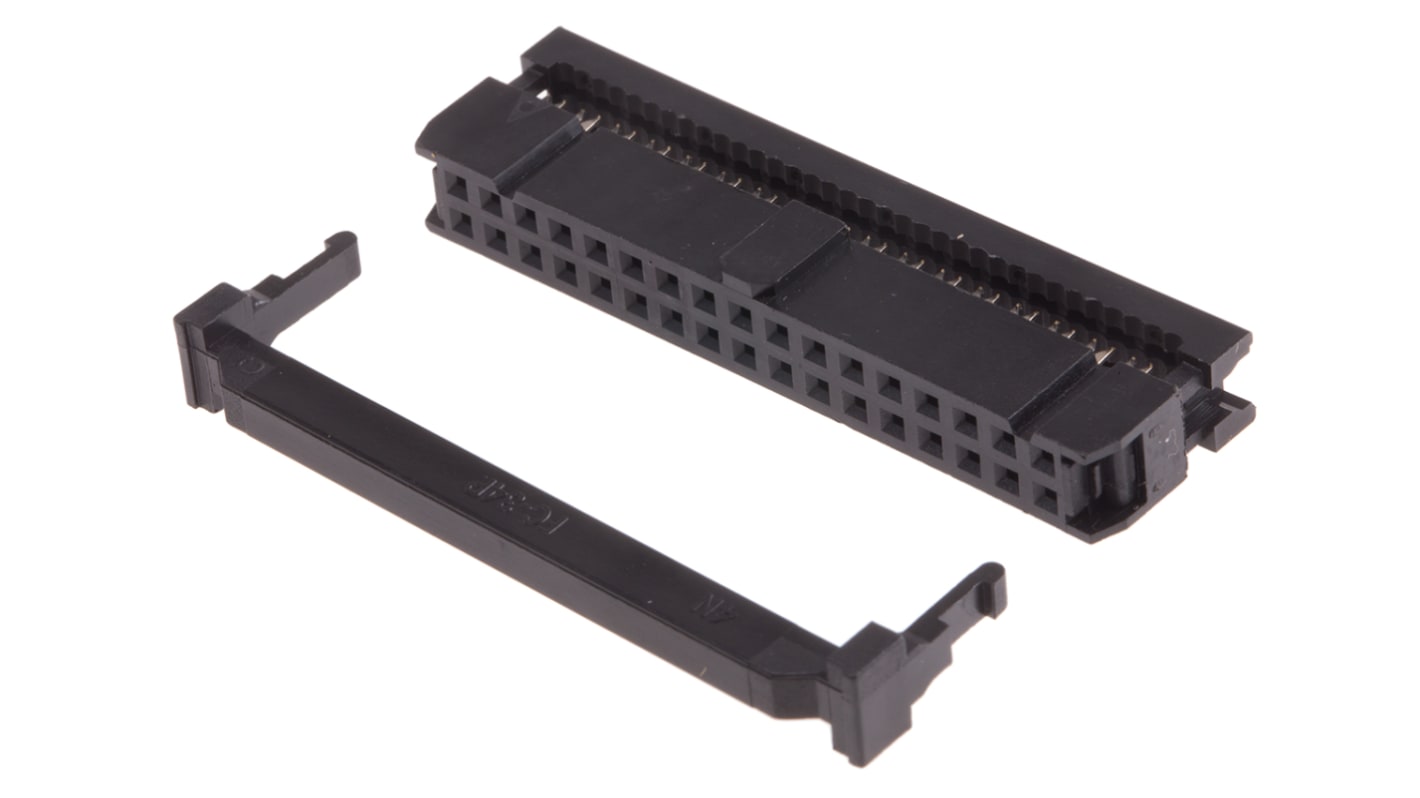

RS PRO 34-Way IDC Connector Socket for Cable Mount, 2-Row

  • RS Stock No. 642-4985
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Unpolarised Standard Sockets

Connectable to standard Speedbloc headers and cable plugs
Cable strain relief supplied
0.8μm gold plated contacts
Use bench press, stock no. 254-850 adaptor kit, see stock no.'s: 426-3160 and 426-3198

Standards

IDC

Specifications
Attribute Value
Number of Contacts 34
Number of Rows 2
Gender Female
Pitch 2.54mm
Mounting Type Cable Mount
Body Orientation Right Angle
Termination Method IDC
Current Rating 1A
Contact Plating Gold over Nickel
Minimum Operating Temperature -40°C
Maximum Operating Temperature +105°C
Voltage Rating 500 V dc
Contact Material Phosphor Bronze
Housing Material Glass Fibre Reinforced PBT
742 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 14.43
units
Per unit
1 - 24
MYR14.43
25 - 74
MYR13.01
75 - 199
MYR11.50
200 - 399
MYR10.20
400 +
MYR9.48
