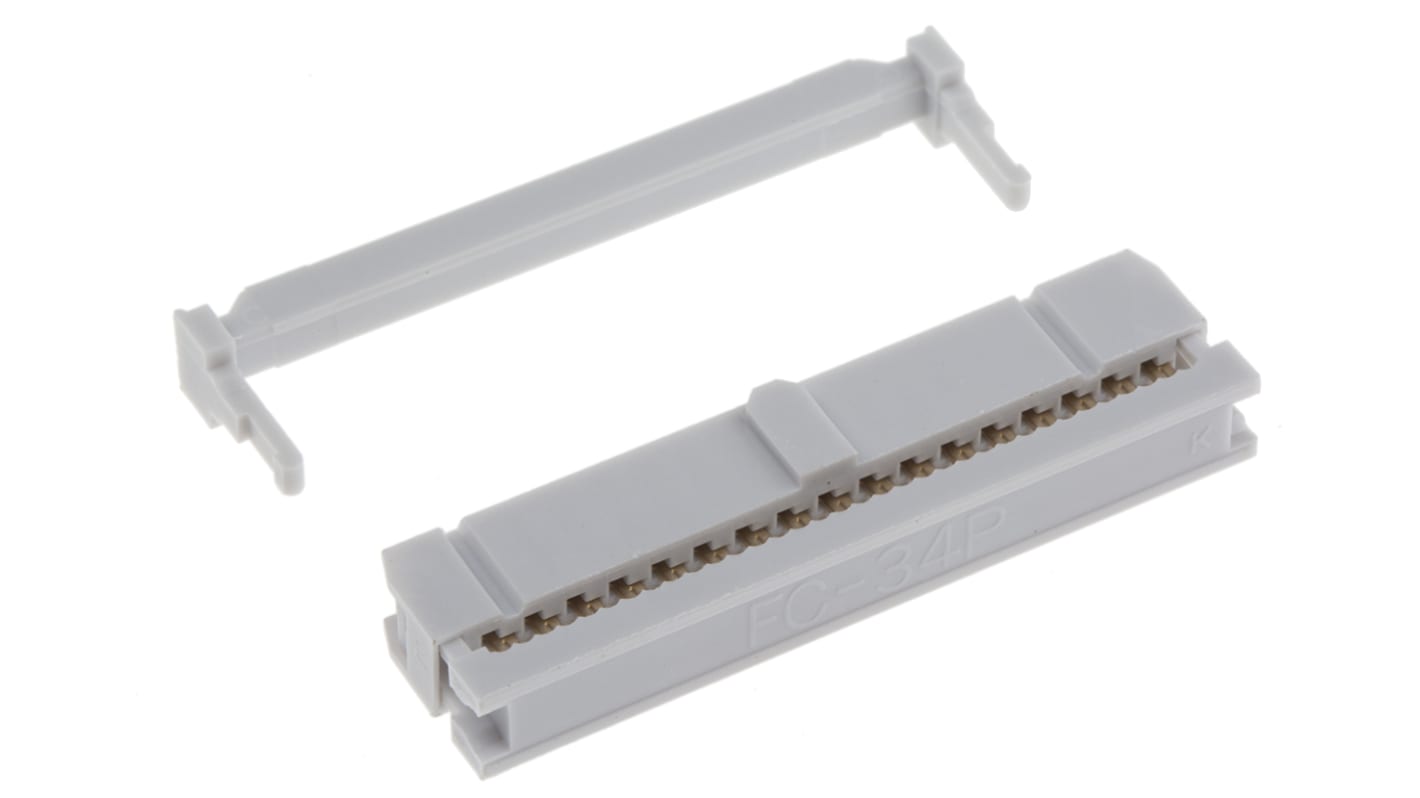

RS PRO 34-Way IDC Connector Socket for Cable Mount, 2-Row

  • RS Stock No. 625-7280
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Bump Polarised Sockets

From RS PRO, this high-quality IDC connector is an excellent solution to terminating cables in low voltage power applications quickly and easily. With a tough glass-filled polyester housing and contacts made from beryllium copper, this IDC connector is a robust and reliable wire-to-board solution.

The connector also features a central bump polarisation and double depth polarising grooves in the socket body for ease of mating. The design of the IDC incorporates a built-in strain relief, for peace of mind when writing important PCB and SMT connections.

This cable mount IDC connector supports up to a 1A current and 15Ω contact resistance.

Features and Benefits

• Strong polyester housing
• Central Bump Polarization
• Operating temperature from -45°C to +105°C
• Supports a 1.27mm cable pitch

Applications

IDCs are designed to be used with flat ribbon cables, and can support a huge range of wire-to-board applications. They’re mainly used in computers connecting drives, cd drives, SSD’s and other components that aren’t on the motherboard. They’re also found in phones, laptops and plenty of other devices.

An IDC connector is also known as an insulation displacement connector, this is because it terminates by slicing through a cable's insulation and making a ’cold-weld’ from the connector to the wire. With no soldering or specialist tooling to worry about, IDC connectors save a huge amount of time compared to stripping the wires, so makes for an easy and efficient install. As such, when it comes to reducing assembly times, these connectors are an attractive option.

Why RS PRO?

RS PRO aims to be your go-to brand where dependability and affordability are a must. From must-have tools to component essentials, RS PRO employ vigorous in-house testing to assure maximum quality. Where you see the RS PRO brand, you know you're getting components you can trust.

When it comes to electronic connectors, RS PRO supplies a huge variety of solutions. Whether you're connecting industrial machinery in an automated factory or implementing IT solutions in a commercial office, RS PRO is with you every step of the way.

Polarised by a centre bump and double depth polarising grooves in the socket body
Compatible with connectors to BS9525-F0023 & F003+, DIN41651 MIL-C-83503 & BT224

Standards

IDC; DIN 41651

Specifications
Attribute Value
Number of Contacts 34
Number of Rows 2
Gender Female
Pitch 2.54mm
Mounting Type Cable Mount
Body Orientation Right Angle
Termination Method IDC
Current Rating 1A
Contact Plating Gold over Nickel
Minimum Operating Temperature -55°C
Maximum Operating Temperature +105°C
Housing Material PBT
Contact Material Phosphor Bronze
612 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 9.31
units
Per unit
1 - 24
MYR9.31
25 - 74
MYR8.86
75 - 199
MYR8.38
200 - 399
MYR7.85
400 +
MYR7.54
