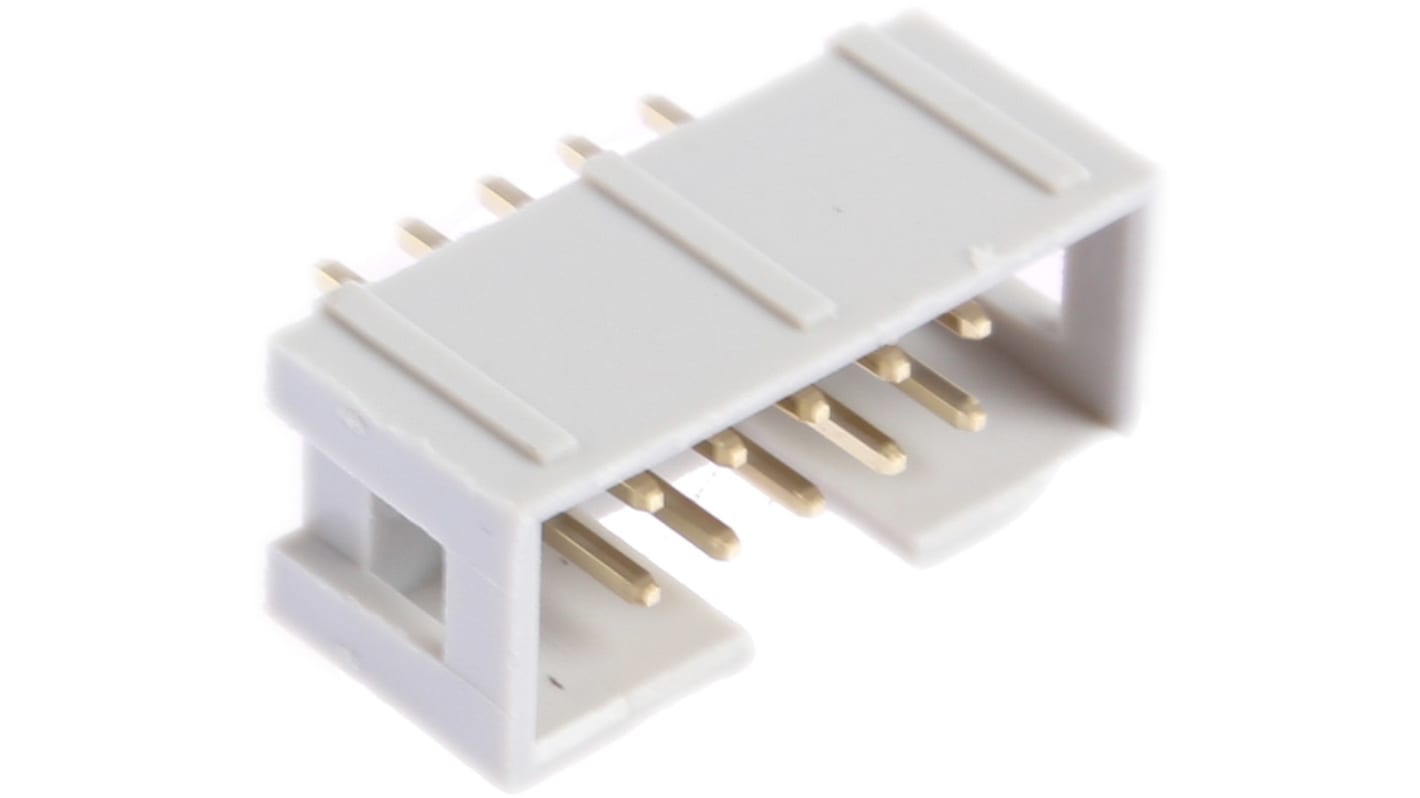

RS PRO 10-Way IDC Connector Plug Through Hole Mount, 2-Row

  • RS Stock No. 625-7252
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Boxed Headers

2-row boxed headers compatible with BT224 type bump polarised and universal sockets
Polyester mouldings to UL94-V with gold plated copper alloy contacts
Solder spill connections on a 0.1in grid will be suitable for standard 1.6mm thick PCBs

Note

Overall header length = 7.9 + (no. of ways x 2.54) mm

Standards

IDC; BT224

Specifications
Attribute Value
Number of Contacts 10
Number of Rows 2
Gender Male
Pitch 2.54mm
Mounting Type Through Hole
Body Orientation Straight
Termination Method IDC
Current Rating 1A
Contact Plating Gold
Minimum Operating Temperature -45°C
Maximum Operating Temperature +105°C
Housing Material PBT
Contact Material Copper
1533 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 1.58
units
Per unit
1 - 24
MYR1.58
25 - 74
MYR1.50
75 - 199
MYR1.42
200 - 399
MYR1.34
400 +
MYR1.26
