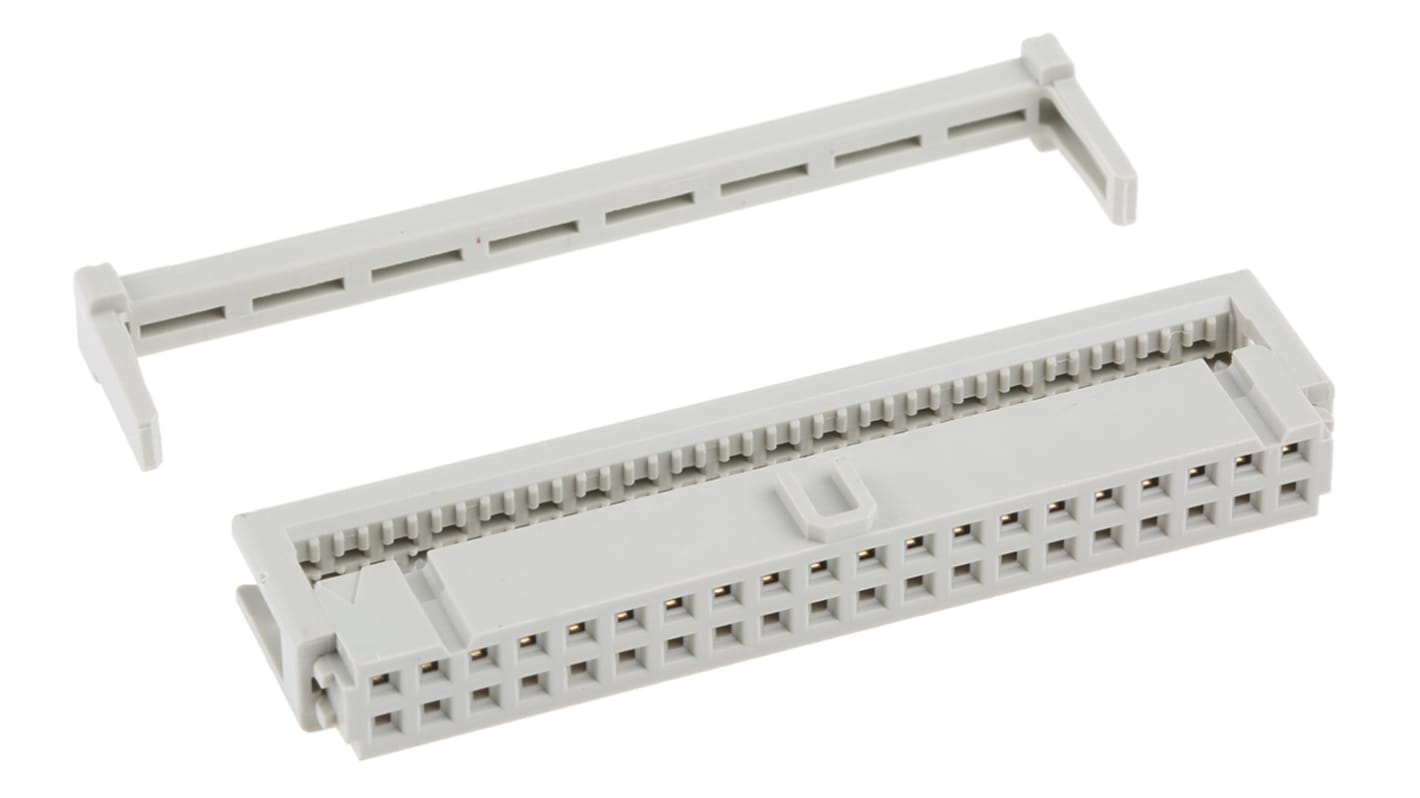

Harting 40-Way IDC Connector Socket for Cable Mount, 2-Row

  • RS Stock No. 409-8720
  • Mfr. Part No. 09185406813
  • Manufacturer HARTING
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

Bump Polarised Socket

A range of Bump Polarized Sockets having Open End Covers with or without Strain Relief:
Harting part numbers ending in xxxxxxxx803 have no Strain Relief Clamp
Harting part numbers ending in xxxxxxxx813 have Strain Relief Clamp

Approvals

UL: E102079; CSA: 98267; IEC 603-13; DIN EN 60603-13; MIL-C 83503; D 2632; BT 224; NFC 93-428 (HE 10)

Standards

IDC; BT224; DIN41651; DIN EN 60603-13

Headers and Sockets (IDC Termination)

Specifications
Attribute Value
Number of Contacts 40
Number of Rows 2
Gender Female
Pitch 2.54mm
Mounting Type Cable Mount
Body Orientation Right Angle
Termination Method IDC
Current Rating 2.5A
Contact Plating Gold
Series SEK-18
Voltage Rating 320 V ac
430 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 15.42
units
Per unit
1 - 49
MYR15.42
50 - 99
MYR14.64
100 - 249
MYR13.84
250 - 499
MYR12.96
500 +
MYR12.53
