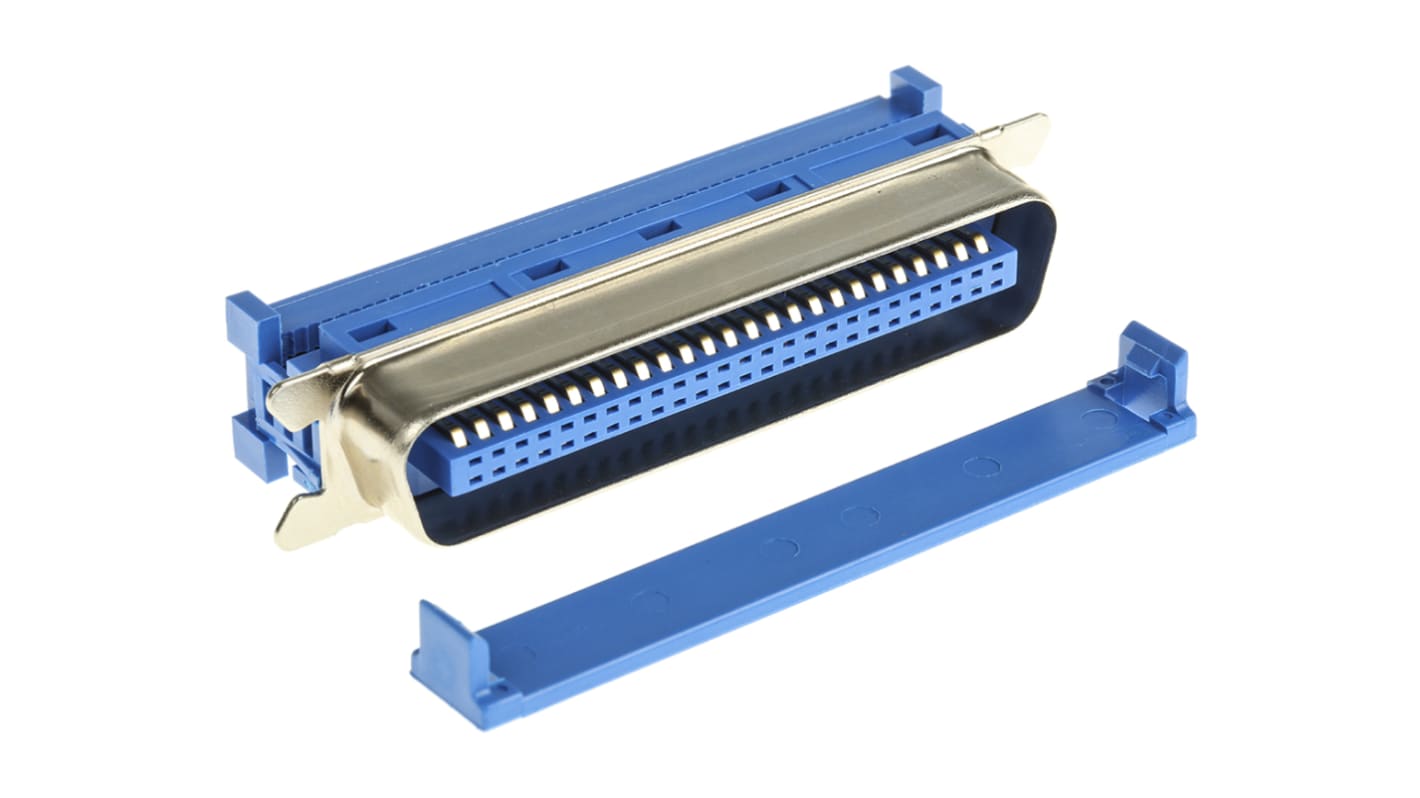

RS PRO 50-Way IDC Connector Plug for Cable Mount, 2-Row

  • RS Stock No. 239-1257
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

IDC Cable Plugs/Sockets

Centronics style connectors designed for terminating 'Speedbloc' ribbon cable
For production tooling see stock no. 426-3160 and range

Standards

IDC; IEEE 428

Specifications
Attribute Value
Number of Contacts 50
Number of Rows 2
Gender Male
Pitch 2.16mm
Mounting Type Cable Mount
Body Orientation Straight
Termination Method IDC
Current Rating 1A
Contact Plating Tin
Minimum Operating Temperature -55°C
Maximum Operating Temperature +105°C
Contact Material Brass
Temporarily out of stock - back order for despatch when stock is available
Price Each
MYR 19.81
units
Per unit
1 - 24
MYR19.81
25 - 74
MYR18.79
75 - 199
MYR17.71
200 - 399
MYR16.59
400 +
MYR15.95
