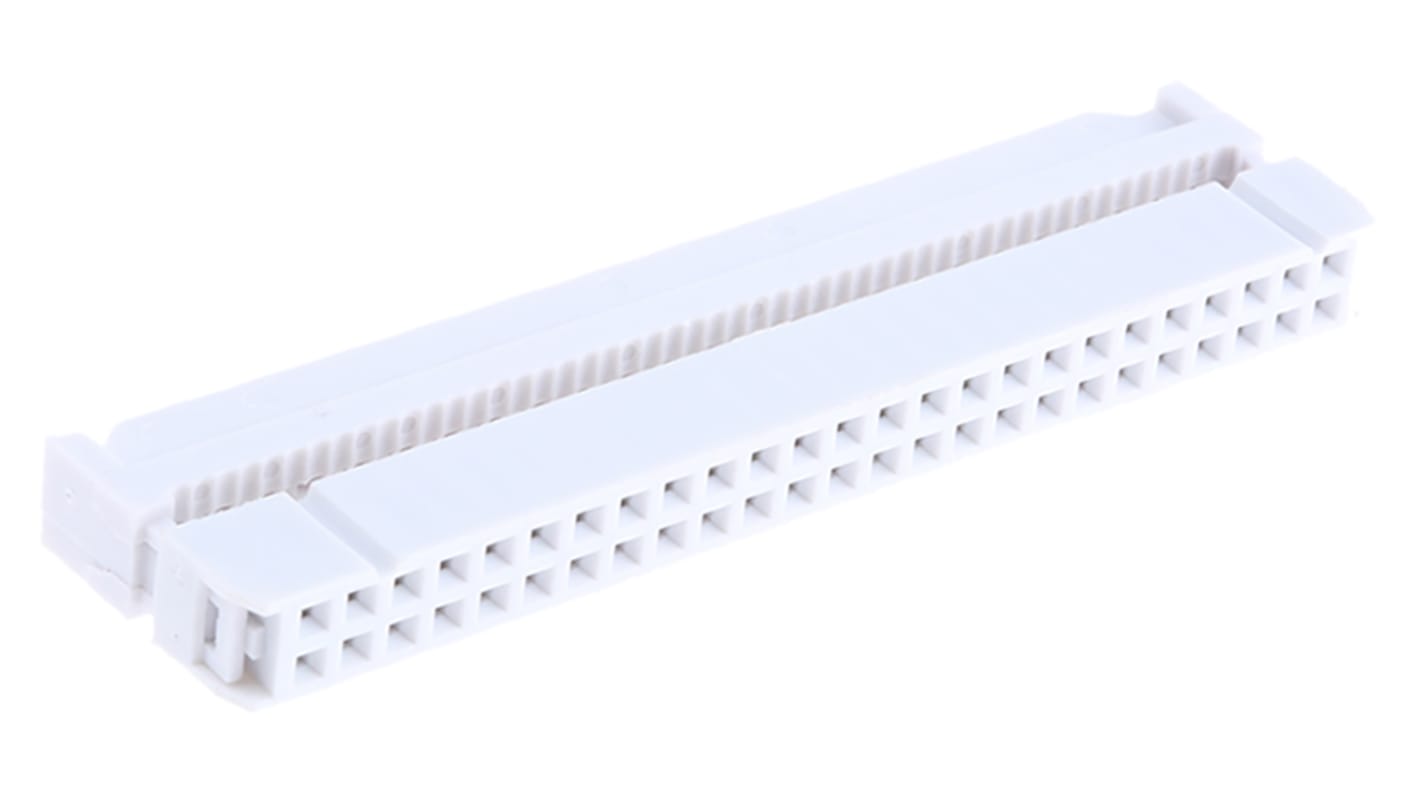

RS PRO 50-Way IDC Connector Socket for Cable Mount, 2-Row

  • RS Stock No. 471-250
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS 2.54mm Universal PCB Box Headers and IDC Ribbon Cable Sockets

A range of 2.54mm pitch PCB mount box headers and IDC ribbon cable sockets that are compatible with connectors conforming to BS9525-F0023. These 2.54mm Universal PCB headers and IDC sockets have grey UL94V rated glass filled polyester housings and gold flash plated contacts and terminations. The 2.54mm universal headers are fully shrouded with long ejection latches either side. The 2.54mm universal IDC ribbon cable sockets have no centre bump, have an open design making them suitable for daisy chaining and are supplied part assembled with a strain relief for rapid cable insertion.

Approvals

UL recognised

Approvals

Sockets UL (E153329); headers UL (E119708)

Standards

IDC

Specifications
Attribute Value
Number of Contacts 50
Number of Rows 2
Gender Female
Pitch 2.54mm
Mounting Type Cable Mount
Body Orientation Straight
Termination Method IDC
Current Rating 1A
Contact Plating Gold
Minimum Operating Temperature -45°C
Maximum Operating Temperature +105°C
Contact Material Phosphor Bronze
Housing Material Glass Fibre Reinforced PET
473 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 3.46
units
Per unit
1 - 24
MYR3.46
25 - 74
MYR3.27
75 - 199
MYR3.09
200 - 399
MYR2.89
400 +
MYR2.80
