E-TEC 2.54mm Pitch 121 Way Through Hole PGA Prototyping IC Socket
- RS Stock No.:
- 655-2850
- Mfr. Part No.:
- PGA-121-E001-11Z-95
- Manufacturer:
- E-TEC
9 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR126.06
| Units | Per Unit |
| 1 - 49 | MYR126.06 |
| 50 - 499 | MYR121.01 |
| 500 + | MYR115.95 |
- RS Stock No.:
- 655-2850
- Mfr. Part No.:
- PGA-121-E001-11Z-95
- Manufacturer:
- E-TEC
Technical data sheets
Legislation and Compliance
Product Details

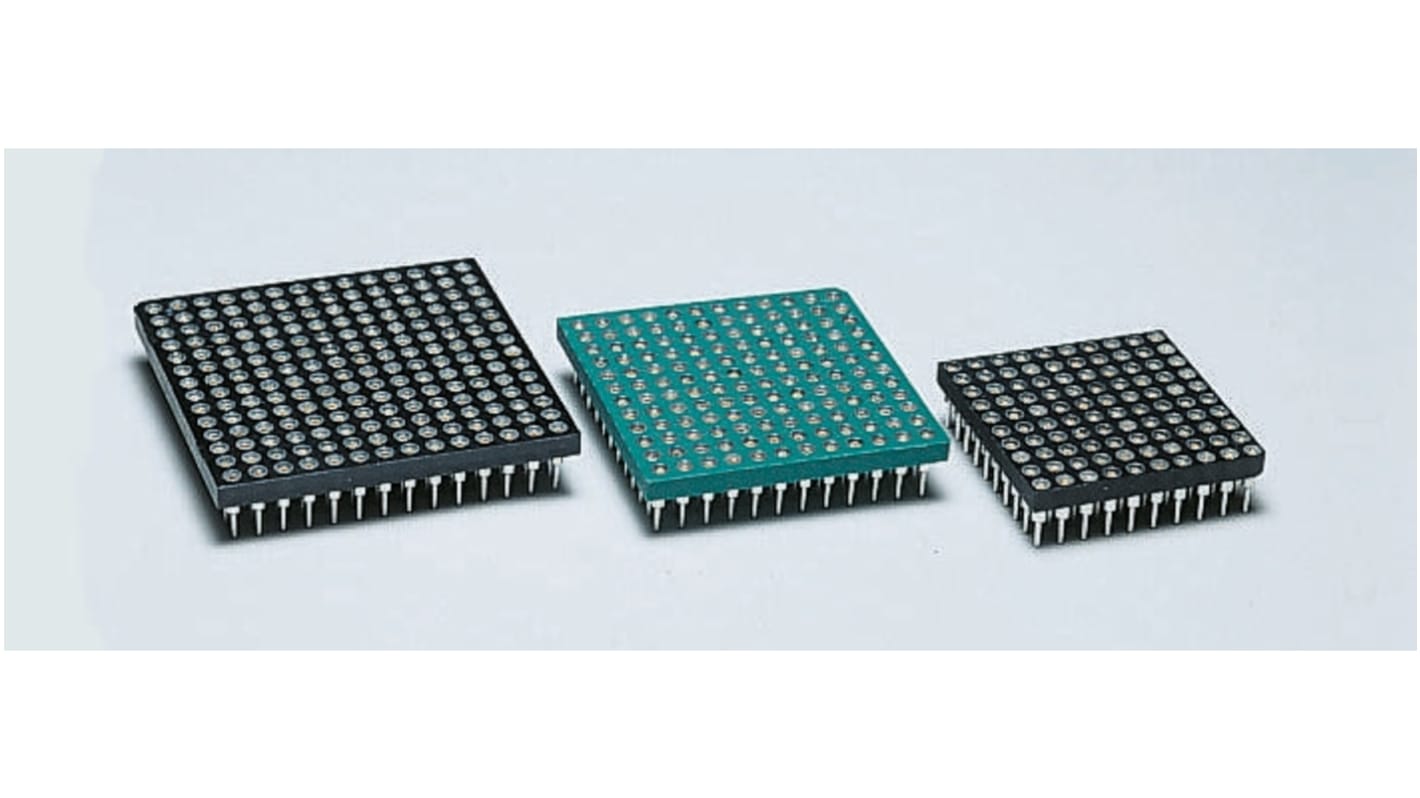

Full PGA sockets
Series of PGA sockets featuring contacts over the entire grid. For a given grid, these configurations allow one socket to be usedfor all PGA-format circuits (for example: the 100 point, 10 x 10 grid socket is suited for use with all PGA 10 x 10 circuits having from 64 to 100 points).
PGA unit sockets
Range of PGA sockets offered in wrap or PCB solder versions.
The various types of installation proposed are suitable for the main circuits available on the market.
Low insertion force.
The various types of installation proposed are suitable for the main circuits available on the market.
Low insertion force.
Specifications
Attribute | Value |
|---|---|
| Package Type | PGA |
| IC Socket Type | Prototyping Socket |
| Gender | Female |
| Number of Contacts | 121 |
| Pitch | 2.54mm |
| Body Orientation | Straight |
| Contact Material | Beryllium Copper |
| Contact Plating | Tin over Nickel |
| Current Rating | 1.0A |
| Socket Mounting Type | Through Hole |
| Termination Method | Solder |
| Housing Material | Polymer |
