- RS Stock No.:
- 378-9813
- Mfr. Part No.:
- WPLCC084-1PTRC
- Manufacturer:
- Winslow
105 In Global stock for delivery in 4-6 working days for West Malaysia, 5-8 working days for Free Trade Zone, and 7-10 working days for East Malaysia.
Price Each (In a Tube of 15)
MYR18.32
units | Per Unit | Per Tube* |
15 - 360 | MYR18.32 | MYR274.80 |
375 - 7485 | MYR17.587 | MYR263.805 |
7500 + | MYR16.854 | MYR252.81 |
*price indicative |
- RS Stock No.:
- 378-9813
- Mfr. Part No.:
- WPLCC084-1PTRC
- Manufacturer:
- Winslow
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Through Hole Mount

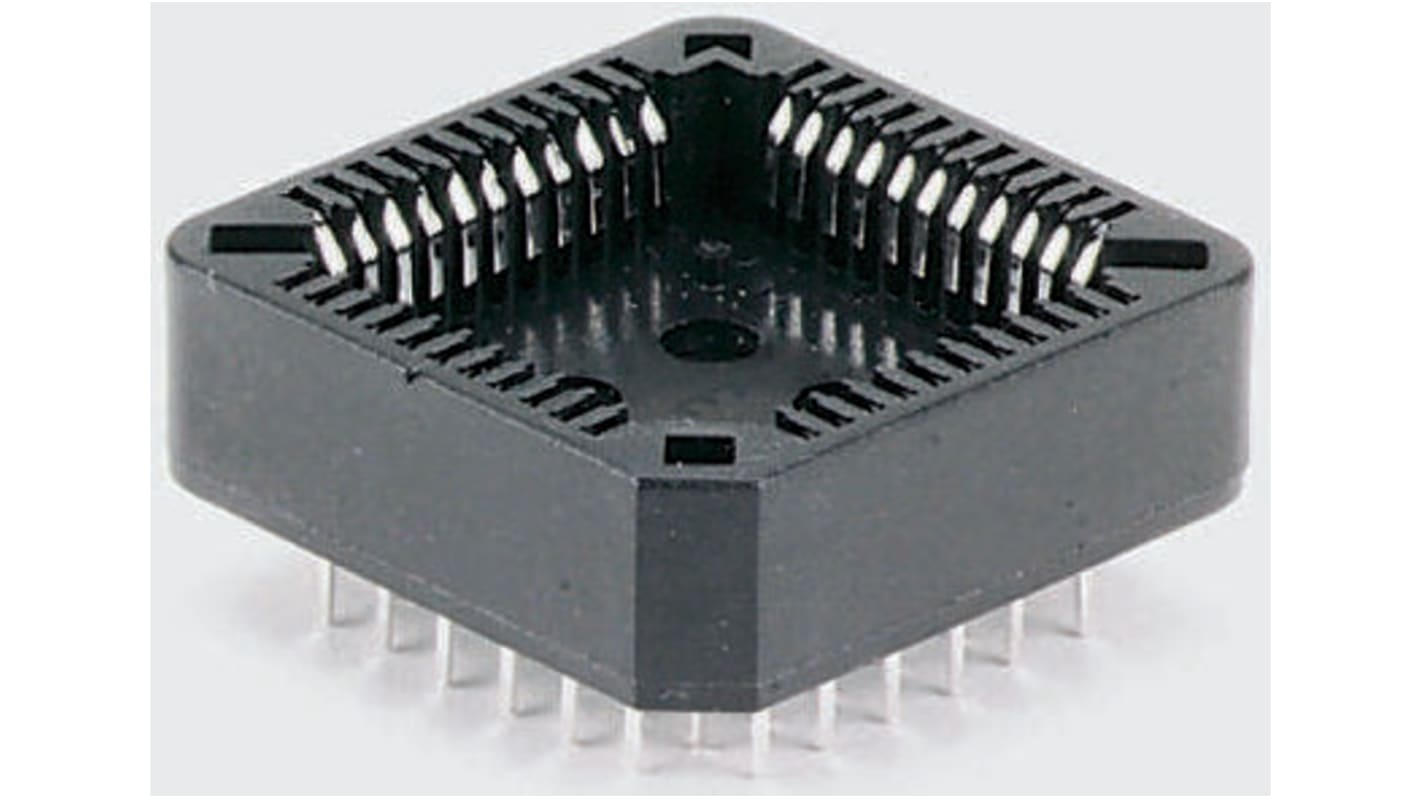

Plastic leaded chip carrier (PLCC) sockets with through hole solder tails
2.54mm grid matching JEDEC patterns
Stand - offs aid cleaning and heat dissipation
Suitable extraction tool (stock no. 480-3005)
Insulation material: Glass filled polyester
Insulation resistance 1000MΩ
Temperature range -50 to +105°C
2.54mm grid matching JEDEC patterns
Stand - offs aid cleaning and heat dissipation
Suitable extraction tool (stock no. 480-3005)
Insulation material: Glass filled polyester
Insulation resistance 1000MΩ
Temperature range -50 to +105°C
Note
*Height above PCB
IC Sockets-PLCC Adaptics Sockets
(mΩ)
Specifications
Attribute | Value |
---|---|
IC Socket Type | PLCC Socket |
Gender | Female |
Number of Contacts | 84 |
Pitch | 1.27mm |
Body Orientation | Straight |
Contact Material | Phosphor Bronze |
Contact Plating | Tin over Copper |
Current Rating | 1.0A |
Voltage Rating | 100 V ac, 150 V dc |
Termination Method | Solder |
Housing Material | PBT |
