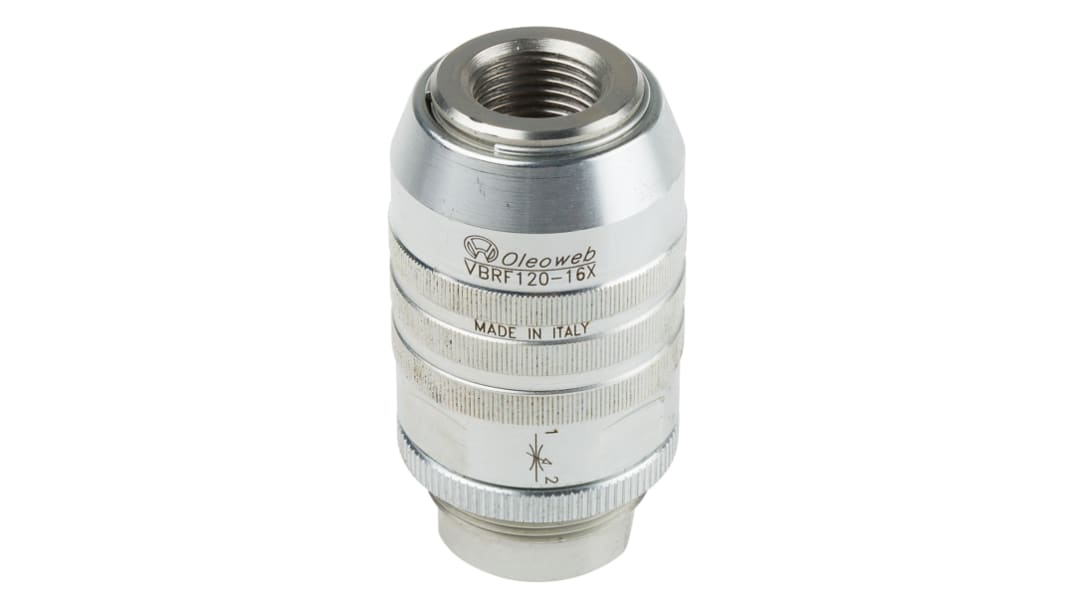

RS PRO Inline Mounting Hydraulic Flow Control Valve, G 1/2, 350bar, 45L/min
- RS Stock No.:
- 363-5930
- Manufacturer:
- RS PRO
3 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR236.37
| Units | Per Unit |
| 1 - 5 | MYR236.37 |
| 6 - 29 | MYR231.41 |
| 30 + | MYR190.45 |
- RS Stock No.:
- 363-5930
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- IT
Product Details
Throttle Flow Regulator
Double acting, controls flow in both directions
Flow regulated by turning the external valve sleeve
Anti-tamper locking ring
Nitrile rubber seals
Flow regulated by turning the external valve sleeve
Anti-tamper locking ring
Nitrile rubber seals
Flow Control Valves
Single acting and double acting in-line flow control valves. Single acting valves allow flow control in one direction and free flow in the opposite direction. Double acting valves allow flow control in both directions.
Specifications
Attribute | Value |
|---|---|
| Connection Port Thread | G 1/2 |
| Maximum Flow Rate | 45L/min |
| Thread Size | 1/2in |
| Maximum Operating Pressure | 350 bar |
| Manufacturer Series | VBRF |
| Body Material | Carbon Steel |
| Seal Material | Nitrile Rubber |
| Thread Standard | G |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -15°C |
| Mounting Type | Inline |
