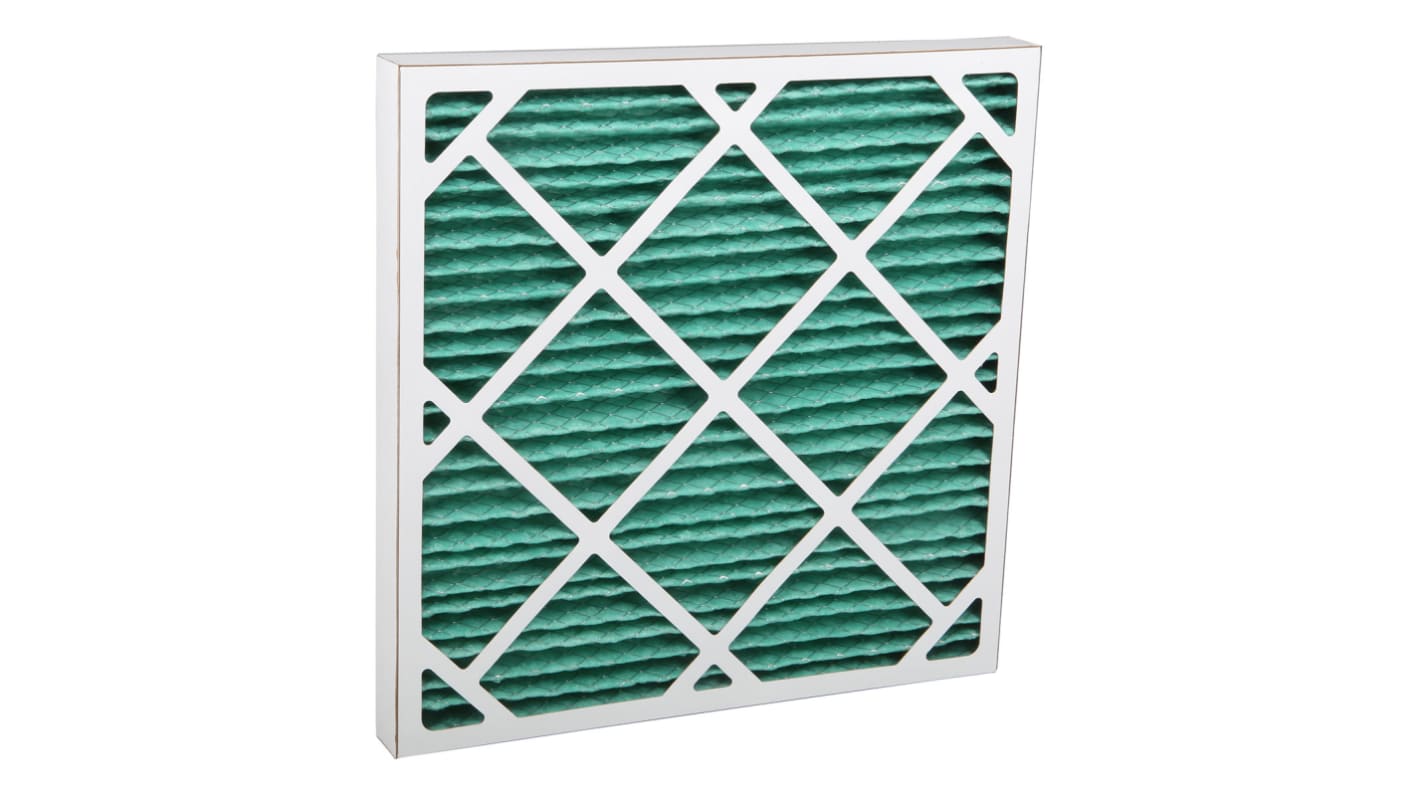

RS PRO Pleated Panel Filter, Cotton, PET Media, G4 Grade, 495 x 495 x 45mm 8

  • RS Stock No. 730-2782
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

RS High Capacity Pleated Panel Filters

High capacity pleated panel filters designed to operate under the most testing conditions. The extra high filter media pleat count (15 pleats per 300 mm) delivers outstanding filter life. The media itself is blended cotton / polyester and has 100% mechanical filtration properties, high loft and with media weight to match the best filters available.These panel filters are constructed by bonding the cotton / polyester pleat pack into a water repellent AquaKote® beverage board frame. AquaKote® has superior tear resistance when wet, and excellent dry tear resistance and is manufactured from renewable sources.

Features and Benefits:

• Eurovent approved
• G4 grade
• High Capacity
• Cotton and polyester media
• Available in varying sizes

How do air filters work?

Used in heating, ventilation and air conditioning, HVAC filters are generally made of gauze like material. This provides a small passage for air to flow through whilst also stopping larger particles. Standard air filters are designed with efficiency in filtration, as they collect debris and dust. Some more complex filters remove odours and feature a charcoal element. Preventing debris from entering a ventilation, cooling or heating system is vital in ensuring longevity as foreign objects in these types of systems can cause them to overheat and cease functioning.

Why change HVAC air filters?

If these types of filters are not properly attended to, they can become clogged. This can prevent air flow possibly causing the system to overheat and can eventually lead to equipment break down or fires. Changing air filters regularly is vital for health and safety and a HVAC systems longevity.

Approvals

Eurovent Approved

Specifications
Attribute Value
Filter Type Pleated Panel
Nominal Dimensions 20 x 20 x 2in
Actual Dimensions 495 x 495 x 45mm
Filter MERV Rating 8
Filter Grade G4
Maximum Air Flow 2882m³/h
Initial Pressure Drop 52Pa
Final Pressure Drop 200Pa
Colour Green
Case Material AquaKote
Media Material Cotton, PET
Nominal Width 20in
Nominal Height 20in
Actual Width 495mm
Nominal Dimensions Height x Width 20 x 20 in, 20 x 20 x 2 in
Nominal Depth 2in
Actual Depth 45mm
Actual Height 495mm
60 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 12)
MYR 48.062
units
Per unit
Per Pack*
12 +
MYR48.062
MYR576.744
*price indicative
