3M SJ352BP, Black Loop Tape, 25mm x 1.25m

  • RS Stock No. 163-4739
  • Mfr. Part No. SJ352B
  • Manufacturer 3M
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

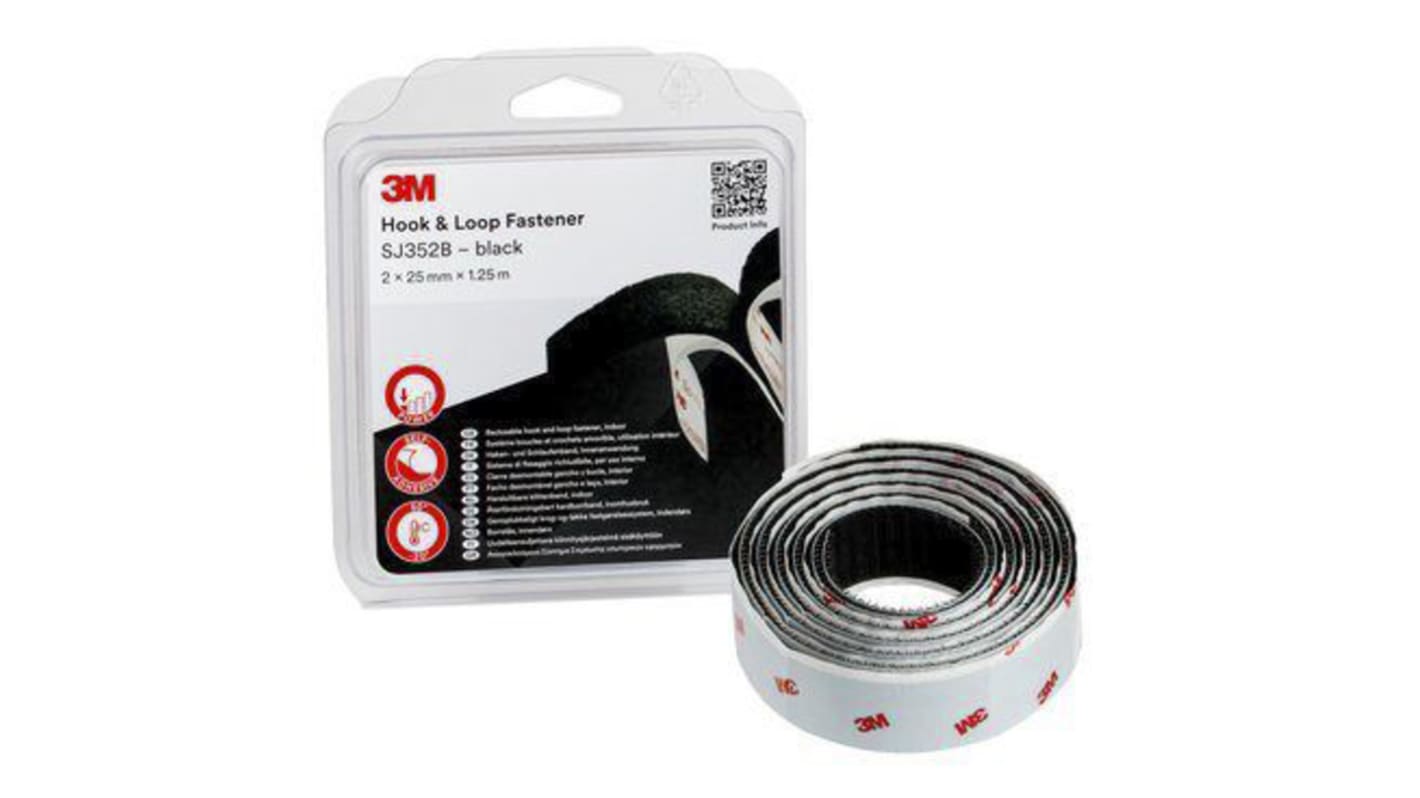

3M™ Scothmate™ Hook & Loop Tape SJ352BP Black Blister IPC

Strength

The design of the 3M™ Scothmate™ SJ352BP hook and loop tape is made of woven hooks coupled with thousands of woven loops, providing openings and closings for the hooks. The hook and loop fasteners consist of two strips of nylon, that come together to form a quick fastening attachment.

The SJ352BP hook and loop tape contains 46 small, stiff hook per cm² (300 per square inch). When the two strips are pressed together the tape is only 4.4 mm thick. When joined, they offer great flexibility and quicker product assembly. The tiny hooks are pushed into number of the loops, interlocking with the opposing heads. This system can be easily pulled apart by hand to disengage.

No drilling, screwing, tightening, or complex installation

The Scothmate™ tape uses a pressure sensitive acrylic adhesive that bonds well to a variety of materials, including some plastics, metal, glass, and painted surfaces with very little preparation needed. The quick adhesion ensures easy installation without the use of a mechanical attachment process.

The 3M SJ352BP tape features a pressure sensitive acrylic nylon tape protected by a removable liner. This ensures the construction allows for better contact with surfaces having a slight texture or surface irregularities.

Versatile, durable and invisible

There's no limit to the number of uses for this tape, with the hooks, loops, and a clear film backing. Temperatures up to 50 °C (70 °C short term) will have minimal impact on the performance of this hook and loop tape.

Features and Benefits

Backed with a high-performance rubber based adhesive, designed for indoor applications requiring medium temperature resistance

Provides a firm adhesive bond to a wide variety of surfaces

Durable for thousands of closures

Quick fastening helps reduce production time and costs

Suitable for a range of industries such as transportation, electronics, office equipment, shop fitting and both internal and external signals

Best suited for indoor use

Typical Applications

Attaching objects to secure surfaces Hanging graphics and banners that change frequently
Automotive industry
Medical Supplies such as securing a brace

FAQ's

How is hook and loop attached to a product?

There are a number of ways to attach hook and loop to a product. Having a fabric backed hook and loop, it can be sewn into textiles and fabrics. It can be glued to a surface using pressure sensitive adhesives or even applied using a heat activated adhesive.

Does water affect the performance of hook and loop tape?

Hook and Loop tape will not degrade in water and water doesn't affect the holding strength of the tape.

Specifications
Attribute Value
Width 25mm
Length 1.25m
Hook Type Hook & Loop
Colour Black
Model Number SJ352BP
Series Scotchmate™
28 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 94.99
units
Per unit
1 - 14
MYR94.99
15 - 39
MYR92.34
40 +
MYR88.54
