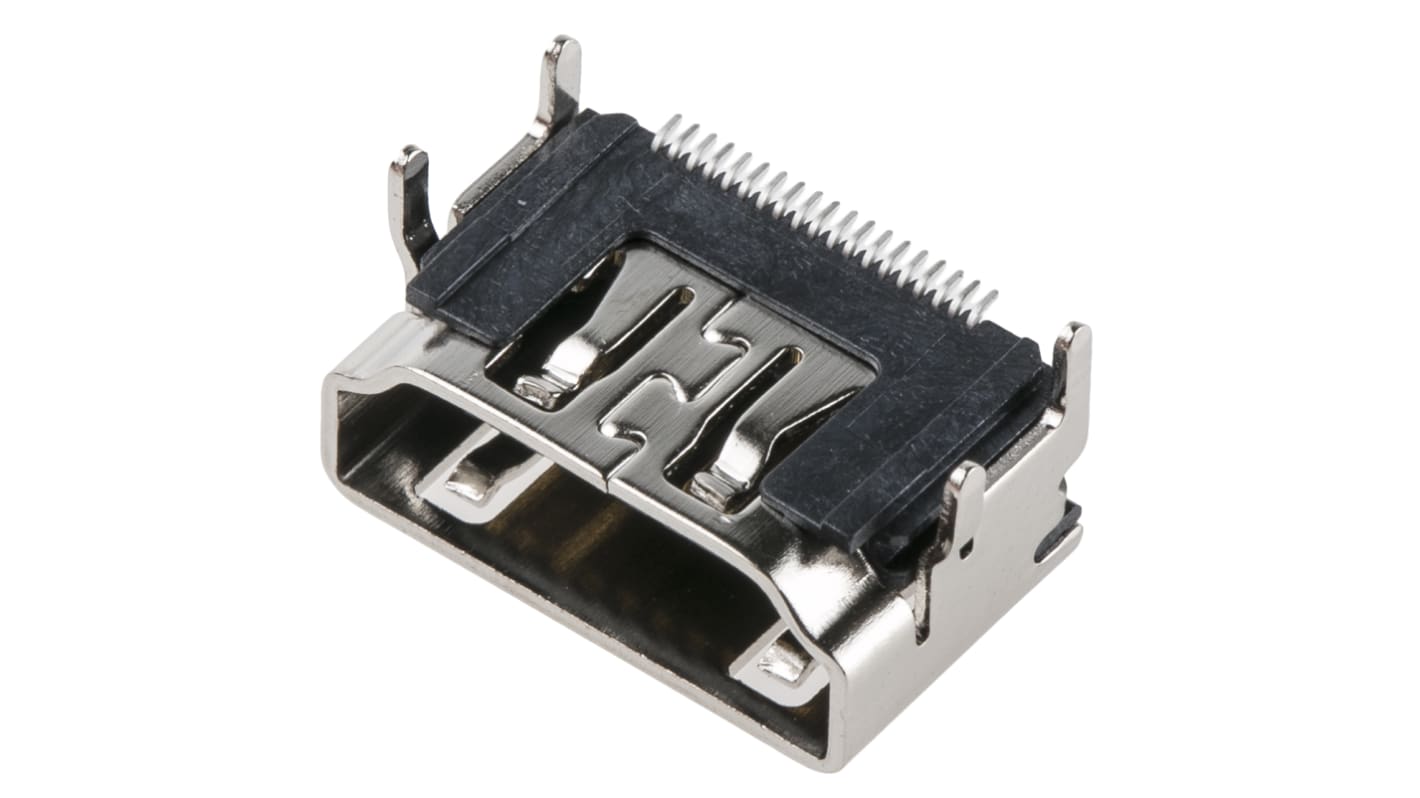

Type A 19 Way Female Right Angle HDMI Connector 40 V ac

  • RS Stock No. 771-0094
  • Mfr. Part No. 10029449-001RLF
  • Manufacturer Amphenol FCI
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

HDMI Receptacles

From FCI, this HDMI Type A PCB Receptacle has SMT Contact Pads with Through Hole mounting for the shell. A compact and robust design, this HDMI receptacle ensures a reliable wire-to-board connection for HDMI applications. HDMI is a popular standard in modern audio/visual applications.

FCI HDMI

Specifications
Attribute Value
Gender Female
Number of Contacts 19
Size Type A
Contact Material Brass
Contact Plating Gold over Nickel
Body Orientation Right Angle
Termination Method Solder
Current Rating 500mA
Voltage Rating 40 V ac
Housing Material Glass Fiber High Temp Resin
Maximum Operating Temperature +85°C
Minimum Operating Temperature -55°C
305 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 5)
MYR 5.914
units
Per unit
Per Pack*
5 - 120
MYR5.914
MYR29.57
125 - 370
MYR5.662
MYR28.31
375 - 995
MYR5.352
MYR26.76
1000 - 1995
MYR5.03
MYR25.15
2000 +
MYR4.842
MYR24.21
*price indicative
