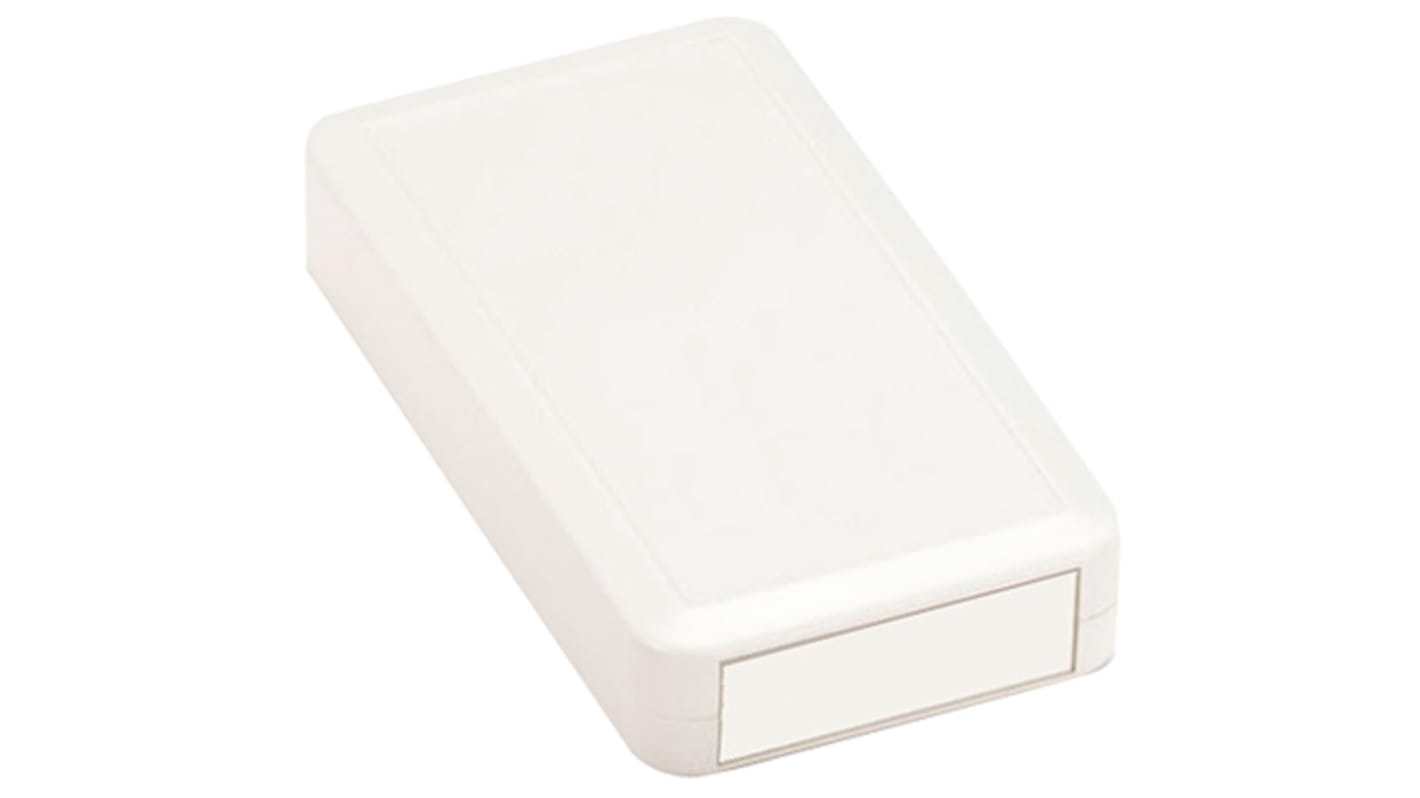

Takachi Electric Industrial White ABS Handheld Enclosure, 135 x 76 x 27mm With Integral Battery Compartment

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

LC Handheld Plastic Case

The Takachi LC Series is a handheld plastic enclosure suitable for measuring instruments, testing device, wireless communication devices, medical devices, etc. A silicone cover, available separately in a variety of colours, offers added grip and impact protection.

Hand-held enclosure, 0.5mm recessed area on the top cover surface
Flame-resistant ABS UL94V-0
IP40 rated
Operating temperature -10 to +60°C
Available with or without battery compartment
Battery compartment for AAAx2 (823-7005)
Battery compartment for AAAx3 (823-7014, 823-7017)
Battery compartment for AAAx4 (823-7039)
Battery compartment for AAx2 (823-7023, 823-7027, 823-7033, 823-7042, 823-7055)
Battery compartment for AAx3 (823-7045, 823-7049, 823-7064, 823-7067)
Battery compartment for AAx4 (823-7077)
Battery compartment for 9Vx1 (823-7061)

Supplied with

Top and bottom cover, battery cover, battery contact/snap, panel and 4 x screws.

Specifications
Attribute Value
Body Material ABS
External Length 135 mm
External Width 76 mm
External Height 27 mm
Integral Battery Compartment Yes
Colour White
External Dimensions 135 x 76 x 27mm
Temporarily out of stock - back order for despatch when stock is available
Price Each
MYR 21.88
units
Per unit
1 +
MYR21.88
