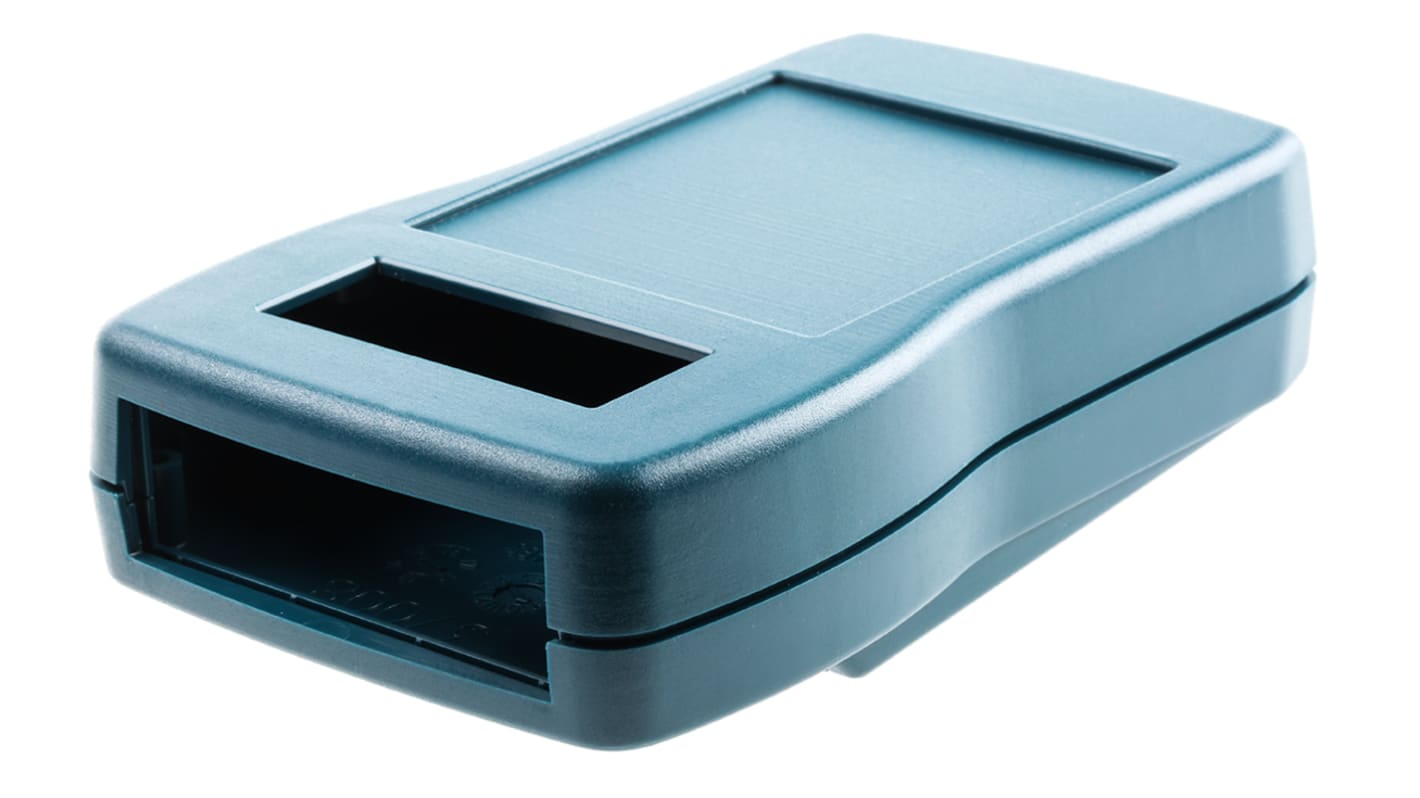

Rose Taguan Series Blue ABS Handheld Enclosure, Integral Battery Compartment, Display Window, IP40, 125 x 80 x 28.5mm
- RS Stock No.:
- 343-8032
- Mfr. Part No.:
- 270102000
- Manufacturer:
- Rose
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR152.29
| Units | Per Unit |
| 1 - 24 | MYR152.29 |
| 25 - 49 | MYR147.68 |
| 50 + | MYR143.23 |
- RS Stock No.:
- 343-8032
- Mfr. Part No.:
- 270102000
- Manufacturer:
- Rose
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Taguan 130 FO Flat Hand Held Enclosure.
The Rose Taguan series of handheld enclosures are ergonomically designed providing you with flexibility of space required for mobile data collection. The series of handheld enclosures are suitable for installing scanners, measuring sensors, card readers, PCMCIA slots and many others. The durability of the enclosure is assured with an ABS, IP40, material body which includes an integrated battery compartment and available with or without a display window opening.
Features and Benefits.
• Taguan series handheld enclosures.
• Ergonomic design.
• Flexible space.
• Battery compartment (easy access).
• Keypad mask.
• IP40 (EN 60529).
• Flammability protection UL 94 HB.
• Made from ABS.
• Top and bottom sections.
• With or without display opening (closed or open).
• Colours are ocean blue (RAL 5020, top/bottom, battery compartment lid, head/shaft cover) (RAL7024 keyboard panel, battery compartment and pack).
• Disruptive Strength 24 KV/mm IEC 60423-1.
• Surface resistance IEC 60093.
• Temperature range -40°C to +80°C.
Hand Held Enclosure Models Available.
Stock number 3438032, Part number 27.01 02 00 Taguan 130 flat enclosure.
Stock number 3438048, Part number 27.01 02 10 Taguan 130 deep enclosure.
Stock number 3438060, Part number 27.01 04 00 Taguan 180 enclosure.
Stock number 3438076, Part number 27.01 06 00 Taguan 230 enclosure.
Enclosure Typical Applications.
Mobile data collection.
Scanners.
Measuring sensors.
Chip or magnetic card readers.
PCMCIA slots.
Many other suitable applications.
(IP) Ingress Protection and what it means.
The first number is the protection from solids.
The second number is the protection from liquids.
IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.
What is Supplied?
5 Part enclosure.
Top.
Base.
Battery compartment and cover.
Head and shaft cover.
Fixing and enclosure screws.
Standards
IP40 (EN 60529), UL 94 HB, IEC 60423-1, IEC 60093.
ROSE Handheld Enclosure, 0.13kg Weight, ABS Material - Taguan 130 Series - 27010200
Choose this handheld enclosure from ROSE for your mobile data collection needs. You can easily customise this unit with scanners, card readers, measuring sensors and PCMCIA slots, making it a versatile choice. Its ABS body is highly durable and protects the battery compartment from impact and wear for use in heavy-duty environments.
Features & Benefits
• Broad operating temperature range between -40°C and +80°C for use in demanding environments
• Keypad mask prevents accidental input or damage to the keys
• Compact dimensions of 125 (height) x 80 (width) x 36.7mm (depth) make it comfortable to operate with one hand
• IP40 rating means it's touchproof and protected from tools or wires larger than 1mm in size
• Keypad mask prevents accidental input or damage to the keys
• Compact dimensions of 125 (height) x 80 (width) x 36.7mm (depth) make it comfortable to operate with one hand
• IP40 rating means it's touchproof and protected from tools or wires larger than 1mm in size
Applications
• Machine diagnostics
• Retail inventories
• Business security
• Retail inventories
• Business security
How much does this handheld enclosure weigh?
This component has a light weight of just 130g, making it easy to handle for long periods of time.
Is this handheld enclosure safe for use in fire-prone areas?
This handheld enclosure has a UL94 HB rating, meaning it's self-extinguishing for safety in the event of a fire.
Specifications
Attribute | Value |
|---|---|
| Body Material | ABS |
| External Length | 125 mm |
| External Width | 80 mm |
| External Height | 28.5 mm |
| Integral Battery Compartment | Yes |
| Weight | 130g |
| IP Rating | IP40 |
| Display Window | Yes |
| Colour | Blue |
| External Dimensions | 125 x 80 x 28.5mm |
| Push Buttons | No |
| Special Features | 5-part Enclosure with Top and Base, Data Aquisition and Measurement, Fixing and Enclosure Screws, Head and Shaft Cover, Integrated Battery Compartment and Cover, Open Version incl Display Screen and Punched Seal Version, Optional EMC Version with Internal Coating, With/Without Display Opening |
| Series | Taguan |
| Keypad Recess | Yes |
| Standards Met | IEC 60243-1 |
