RRST-MB6-MC1-900-17F-H-001 Siretta - 2G (GSM/GPRS), 3G (UTMS) Antenna Wall/Pole Mount, TNC

  • RS Stock No. 896-8323
  • Mfr. Part No. OSCAR17/X/TNC/S/S/19
  • Manufacturer Siretta
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

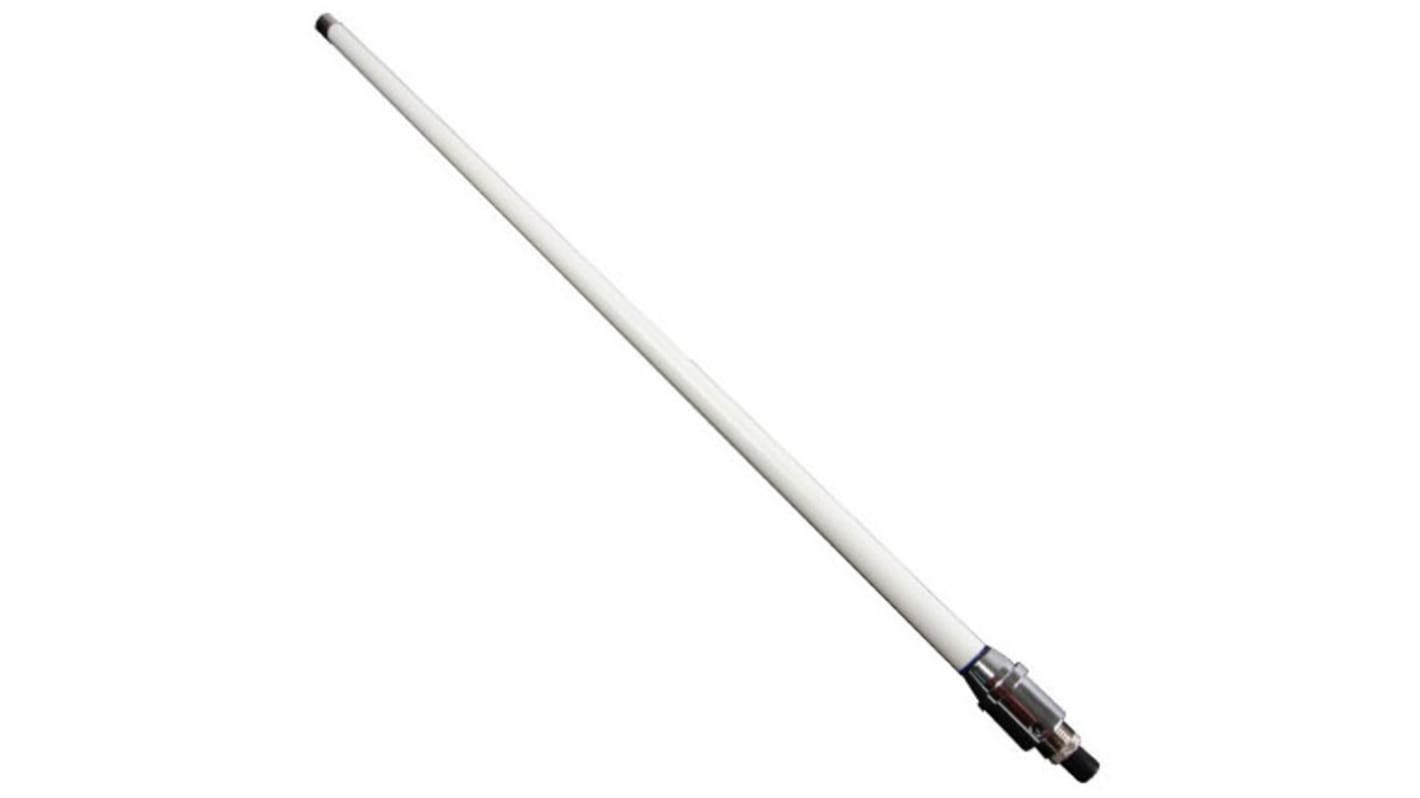

OSCAR 17 Quad Band Omnidirectional Wall/Bracket Mount Antenna, Siretta

The OSCAR 17 antenna from Siretta can be mounted to a pole or wall using a bracket and U bolt. Intended for outdoor use, you can use the antenna to improve cellular signal strength and reception, with no need to spend time finding the best signal position. Recommended applications include base stations, remote monitoring and alarm & security systems. The OSCAR 17 is also a quad band antenna that covers GSM/GPRS and 3G.

Features & Benefits of the OSCAR 17 Omnidirectional Antenna
•Stainless steel base and fibre glass body
•-40° C to +80° C operating temperature range
•TNC female connector
•50 ohm impedance
•10 dBi gain
•Linear vertical polarization
•Monopole radiating element
•900, 1800, 1900 MHz GSM/GPRS
•2.1 GHz 3G
•Dimensions: 850 x 34 x 34 mm

Note: You will need a RG58 cable with a TNC male connector on one end and another connector at the other end.

Mobile Communication Antenna (GSM/GPRS/2G/3G/4G), Siretta

Specifications
Attribute Value
RF Protocols 2G (GSM/GPRS), 3G (UTMS)
Internal/External External
Antenna Physical Form Whip
Supported Frequency Bands 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz
Connector Type TNC
Antenna Mounting Type Wall/Pole
Includes Lead No
Gain 10dBi
Connector Gender Female
Antenna Internal Construction Monopole
Series OSCAR 17
115 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 273.25
units
Per unit
1 - 9
MYR273.25
10 +
MYR268.49
