Siretta OSCAR20/5M/SMAM/S/S/15 Square Antenna with SMA Connector, 2G (GSM/GPRS), 3G (UTMS), 4G (LTE)

RS Stock No.:: 124-8871
Mfr. Part No.:: OSCAR20/5M/SMAM/S/S/15
Manufacturer:: Siretta

Siretta OSCAR20/5M/SMAM/S/S/15 Square Antenna with SMA Connector, 2G (GSM/GPRS), 3G (UTMS), 4G (LTE)

1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

44 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR308.23

Units	Per Unit
1 - 4	MYR308.23
5 +	MYR292.81

RS Stock No.:: 124-8871
Mfr. Part No.:: OSCAR20/5M/SMAM/S/S/15
Manufacturer:: Siretta

Technical data sheets

OSCAR20 Antenna Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

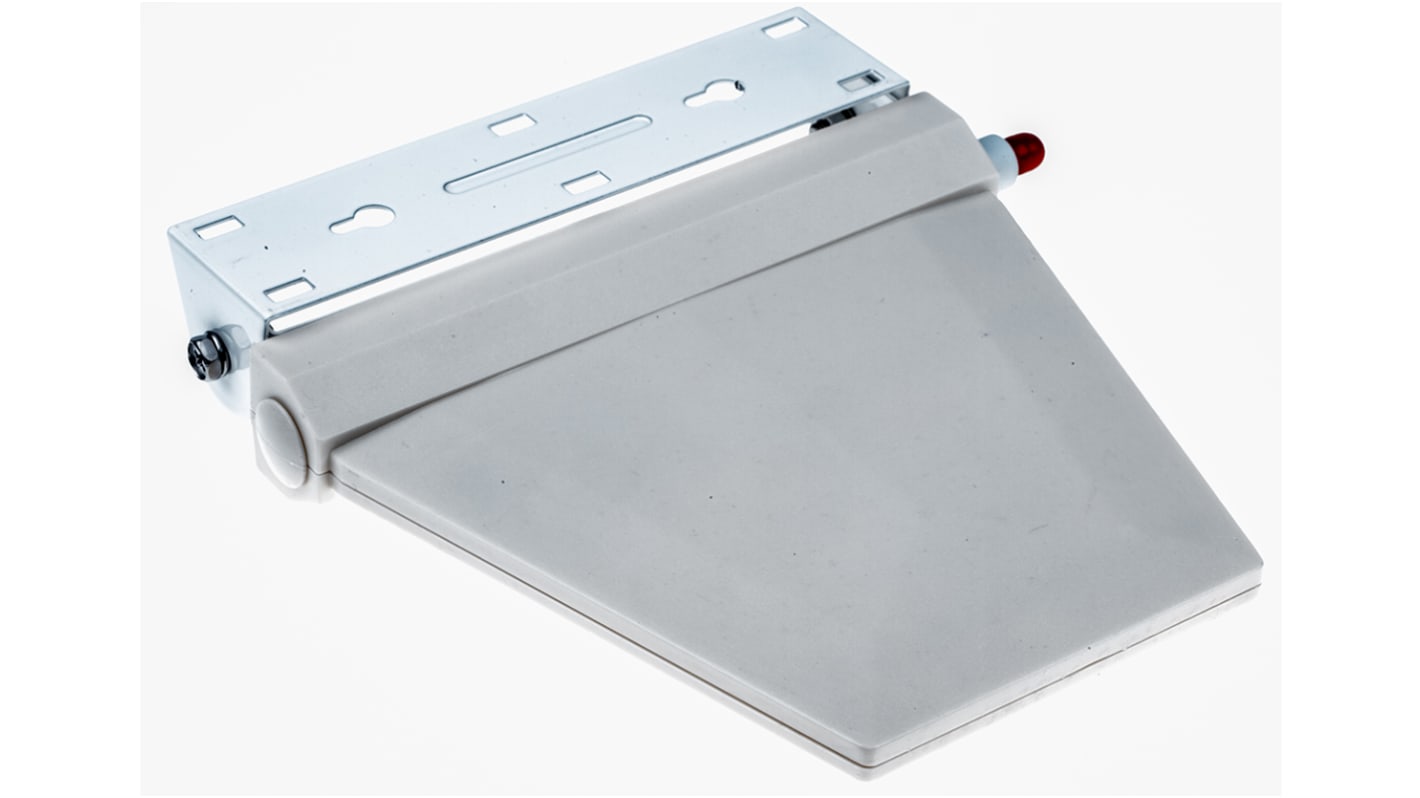

OSCAR 20 4G/3G/GSM/GPRS Wall Mounted Yagi Antenna, Siretta

The Oscar 20 is a Yagi directional wall / bracket mount antenna tuned to 4G, 3G and quad band GSM/GPRS frequencies. This antenna is made from durable ABS plastic and mounted on a hinged bracket. The OSCAR 20 has a high peak gain which is ideal for long-distance communication and for areas with poor signal strength.

This Yagi antenna is supplied with 5 m of RG58 cable with an SMA male connector.

Operating Frequencies
4G / LTE: 2600 MHz
Quad Band GSM/GPRS: 850, 900, 1800, 1900 MHz
3G / UMTS: 2100 MHz

Operating Temperature: -30 to +70°C
Impedance: 50 Ω
Gain: 7 to 8 dBi
VSWR: <2:1
Polarisation: Vertical / Horizontal
Radiating Element: Yagi

Dimensions
Length: 170 mm
Width: 147 mm
Height: 35 mm

Multi-band Antennas, Siretta

Specifications

Attribute	Value
RF Protocols	2G (GSM/GPRS), 3G (UTMS), 4G (LTE)
Antenna Physical Form	Square
Frequency Range	1800 (Quad Band GSM/GPRS) MHz, 1900 (Quad Band GSM/GPRS) MHz, 2100 (3G/UMTS) MHz, 2600 (4G/LTE) MHz, 850 (Quad Band GSM/GPRS) MHz, 900 (Quad Band GSM/GPRS) MHz
Antenna Mounting Type	Wall/Pole
Connector Type	SMA
Gain	7dBi
Connector Gender	Male
Lead Length	5m
Series	OSCAR 20
